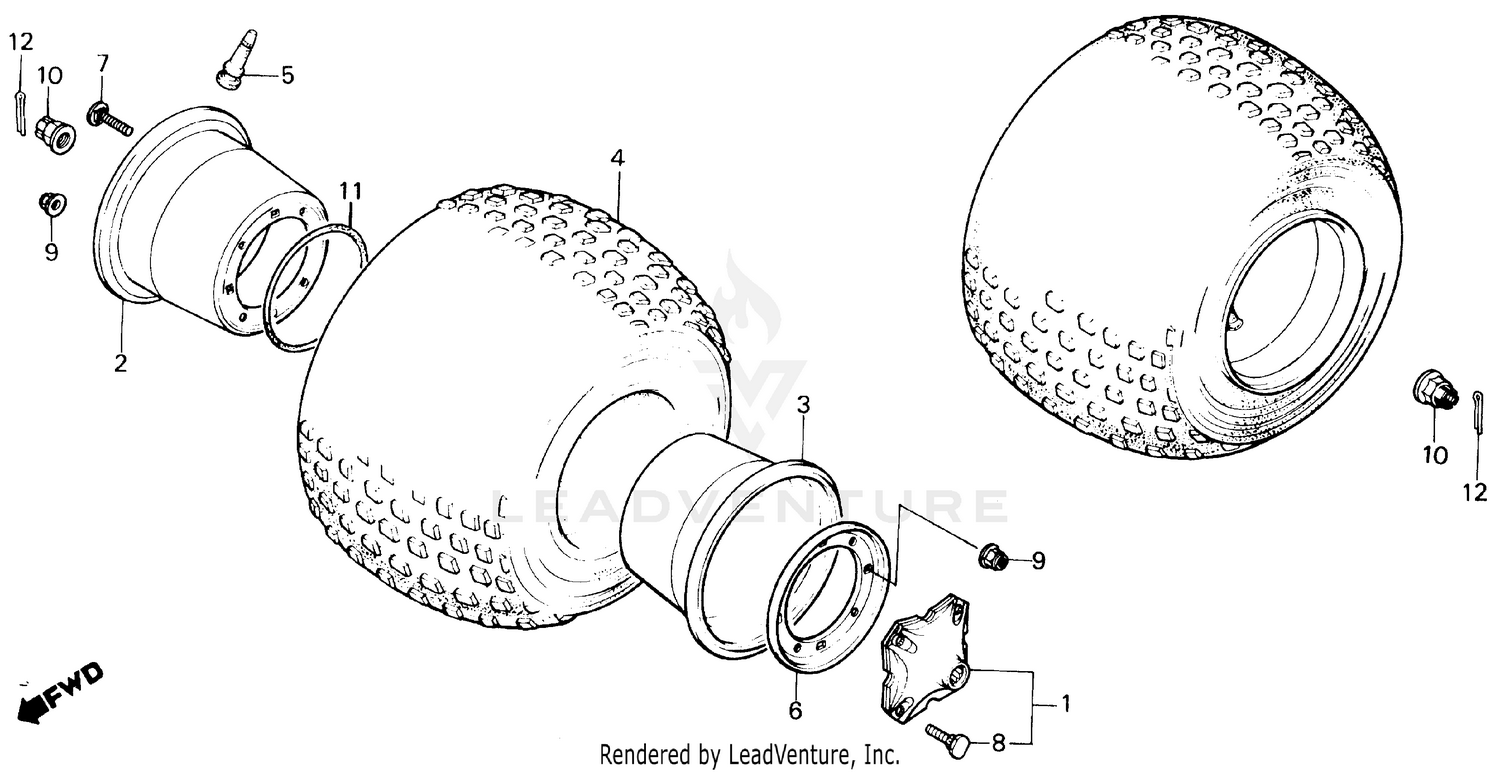

1987 Honda ATC125M REAR WHEEL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, RR. WHEEL
42410-VM6-000
|
$127.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM, WHEEL (OUTER)
42712-HB6-000
|
$94.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM, WHEEL (INNER)
42713-HB6-000
|
$94.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIRE ASSY., RR. (22X11-8 PA-3) (OHTSU)
42750-VM6-681
|
$65.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIRE, WHEEL (22X11-8) (OHTSU) (NOT AVAILABLE)
42751-942-811
Superseded by 42751-961-811
|
$61.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE, RIM
42753-VM0-003
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
PATCH, SUPPORT PLATE
44714-VM6-000
|
$35.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WHEEL
90101-VM6-000
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WHEEL (10X24.5)
90103-VM6-300
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U (10MM)
90304-GE8-003
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, AXLE (18MM) (NOT AVAILABLE)
90305-HB6-000
|
$9.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING, WHEEL (160X4.2)
91351-958-670
|
$17.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER (4.0X40)
94201-40400
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
