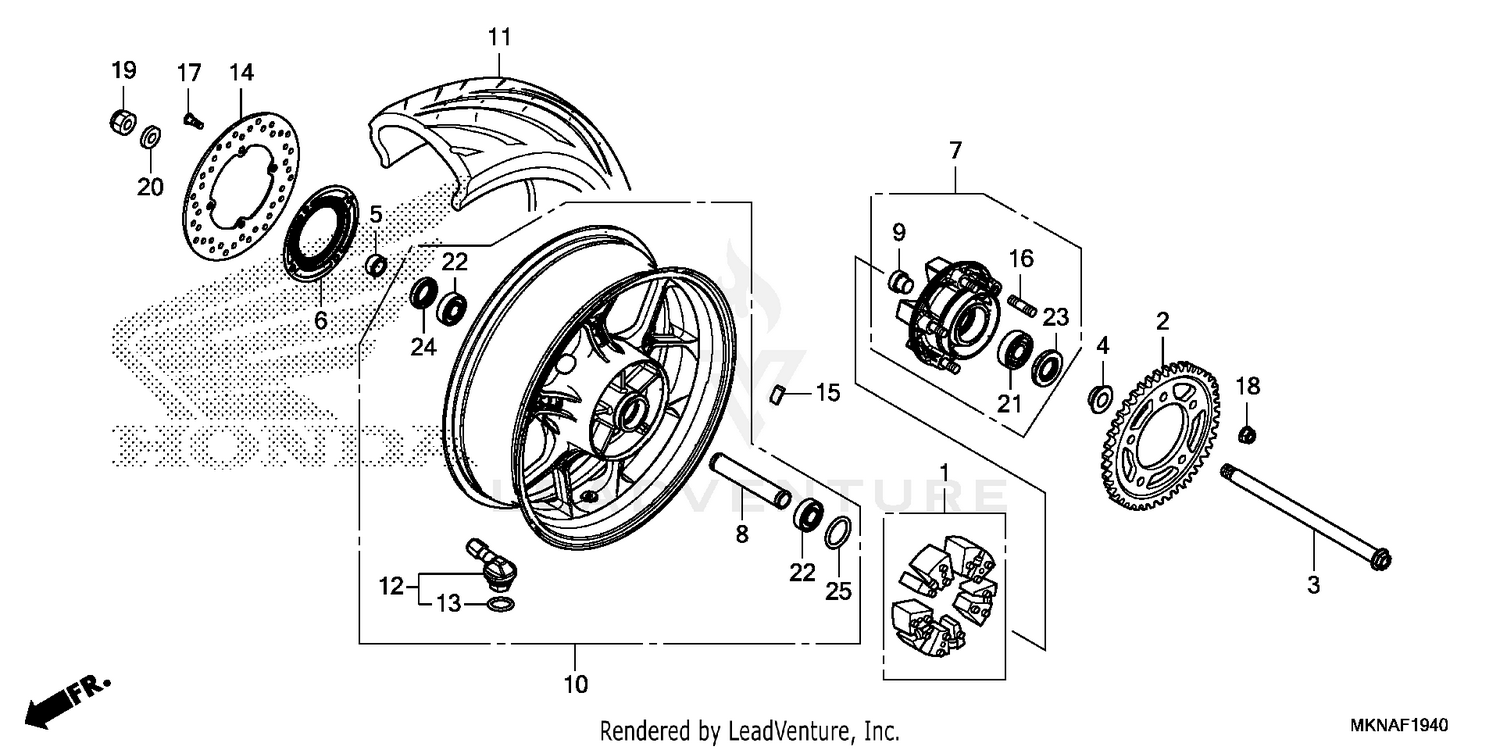

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-MGS-D30
|
$69.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (42T)
41201-MKN-D50
Superseded by 41201-MKN-D51
|
$68.42 | ||
|
Unavailable |
|||
|
#3
AXLE, RR. WHEEL
42301-MKN-D50
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, L. RR. WHEEL SIDE
42311-MER-D00
|
$20.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. BRAKE SIDE
42312-MER-D00
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLANGE SUB-ASSY., RR. DRIVEN
42615-MJE-D00
|
$135.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. AXLE DISTANCE
42620-MKN-D50
|
$23.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR B, RR. WHEEL DISTANCE
42625-MER-D00
|
$21.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
WHEEL SUB-ASSY., RR. (TYPE2)
42650-MKN-L40ZA
|
$540.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR. (METZELER) (180/55 ZR17 M/C 73W)
42711-MKN-D54
Superseded by 42711-MKN-D55
|
$535.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR. (METZELER) (180/55 ZR17 M/C 73W)
42711-MKN-D55
|
$535.78 | ||
|
Unavailable |
|||
|
#12
VALVE ASSY., CLAMP IN
42755-MKA-D81
|
$18.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
42758-MKA-D81
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK, RR. BRAKE
43251-K87-A00
|
$106.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
WEIGHT, BALANCE (10G)
44721-MGH-H21
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
WEIGHT, BALANCE (15G)
44722-MGH-H21
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
WEIGHT, BALANCE (20G)
44723-MGH-H21
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT 2, STUD (12X25)
90102-MAS-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, DISK (8X25)
90105-MGS-D30
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U (12MM) (FUJI SEIMITSU)
90306-KGH-901
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U (18MM)
90306-MJE-D01
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (18X32X2)
90401-KZ4-890
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (63/22)
91051-MAS-003
|
$45.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6204UU)
91053-MGS-D31
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (30X56X7.5)
91252-MAS-003
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (30X47X7.5)
91253-MAE-003
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (55X2)
91351-MGS-D30
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
