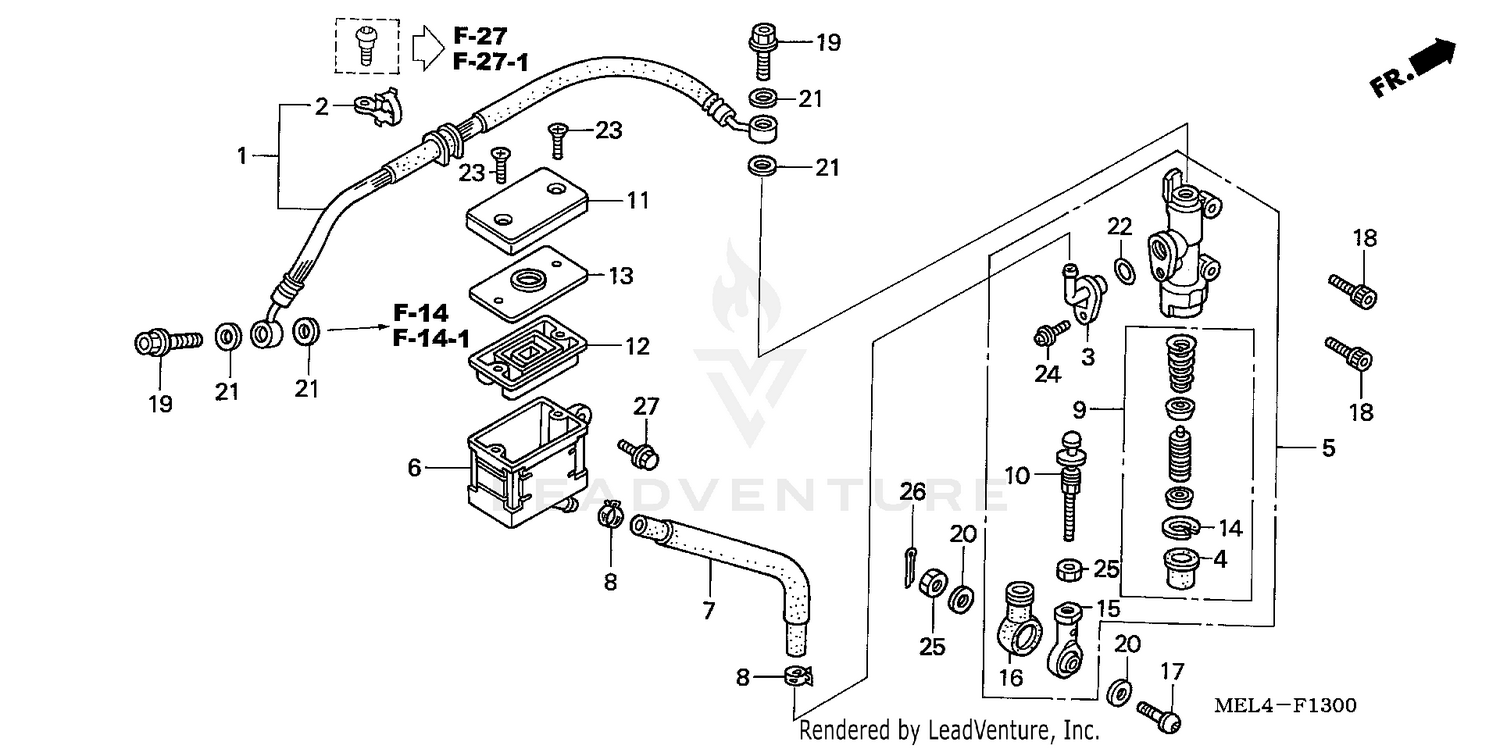

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. BRAKE
43310-MEL-D21
|
$39.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, RR. BRAKE HOSE
43469-MEL-000
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNECTOR, MASTER CYLINDER
43503-MER-D01
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
43504-MB2-006
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER CYLINDER SUB-ASSY., RR.
43510-MEL-D21
Superseded by 43510-MEL-D22
|
$240.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER CYLINDER SUB-ASSY., RR.
43510-MEL-D22
|
$240.39 | ||
|
Unavailable |
|||
|
#6
CUP, OIL
43511-KV3-831
|
$27.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, RR. MASTER CYLINDER
43512-MEL-006
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MB2-305
Superseded by 43520-MB2-315
|
$53.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MB2-315
|
$53.91 | ||
|
Unavailable |
|||
|
#10
ROD, PUSH
43530-MCZ-006
|
$26.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
45520-MG7-006
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
45521-HA2-006
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
46182-500-013
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
46182-MEL-D21
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIE ROD
46505-MCJ-751
|
$48.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, DUST
46506-MCJ-750
|
$6.94 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (8X30)
90125-MCJ-750
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (6X20)
90135-MEL-000
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPECIAL (8MM)
90443-GC8-000
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, FLAT (4X40)
93600-04040-1G
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-07
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.35 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (8MM)
94002-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER (1.6X25)
94201-16250
|
$1.03 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6X18)
96300-06018-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X18)
96500-06018-00
Superseded by 96300-06018-00
|
$1.42 | ||
|
Unavailable |
|||
