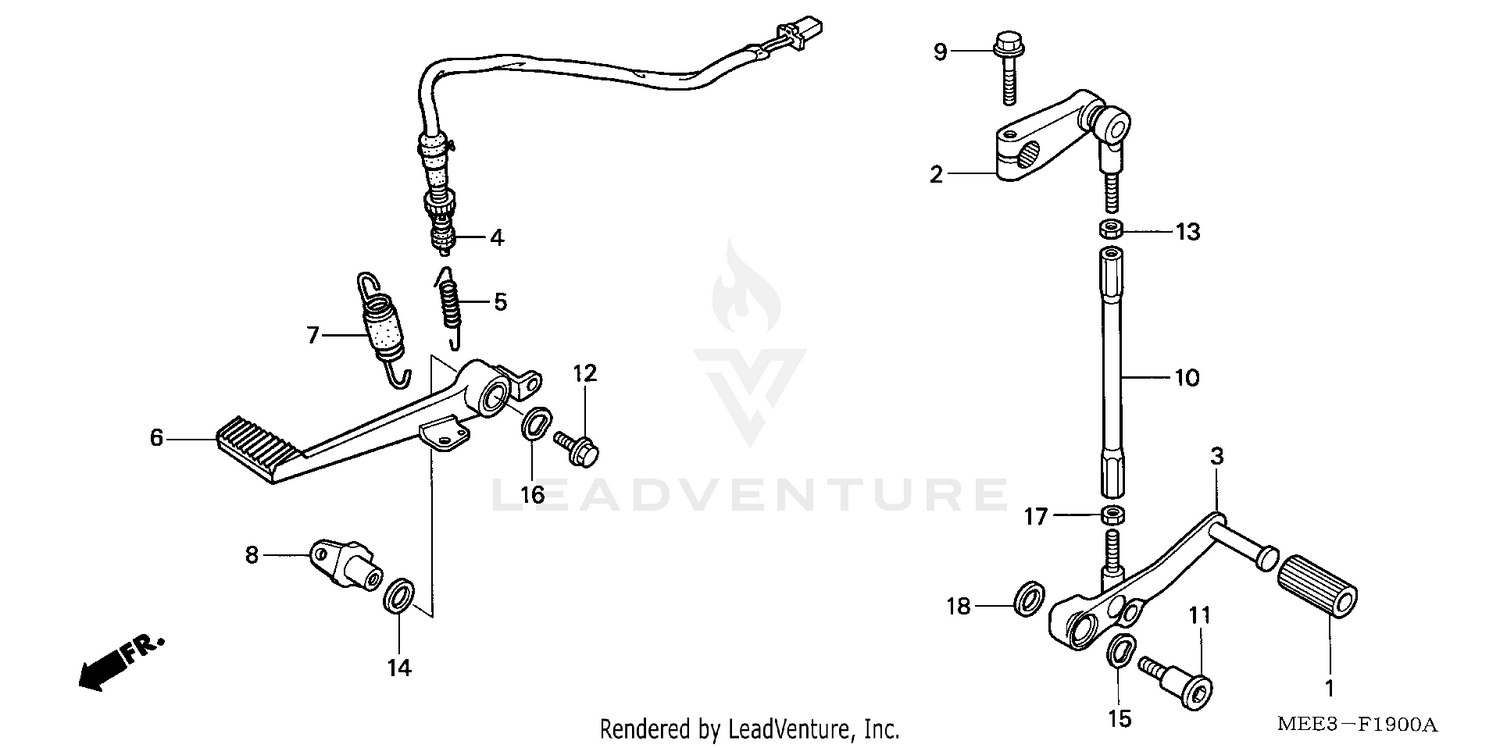

Brake Pedal + Change Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, GEARSHIFT PEDAL
24705-MR7-000
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM, GEARSHIFT
24710-MEE-000
|
$76.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, GEARSHIFT
24720-MEE-D00
|
$101.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., RR. STOP
35350-MEE-000
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, STOP SWITCH
35357-KE1-000
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
PEDAL, RR. BRAKE
46500-MEE-000
|
$112.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING SET, BRAKE PEDAL
46513-MEE-000
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, MAIN STEP
50612-MEE-D00
|
$17.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X20)
90010-ML0-720
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, CHANGE
90065-MEE-000
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, CHANGE PIVOT
90113-MCF-000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X40)
90121-MCJ-750
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
90201-700-000
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, THRUST (23.2MM)
90403-MCJ-750
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CHANGE PEDAL WAVE
90505-MBW-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, WAVE (20.1MM)
90505-MCJ-750
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (6MM)
94001-06020-0S
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN (8MM)
94103-08700
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
