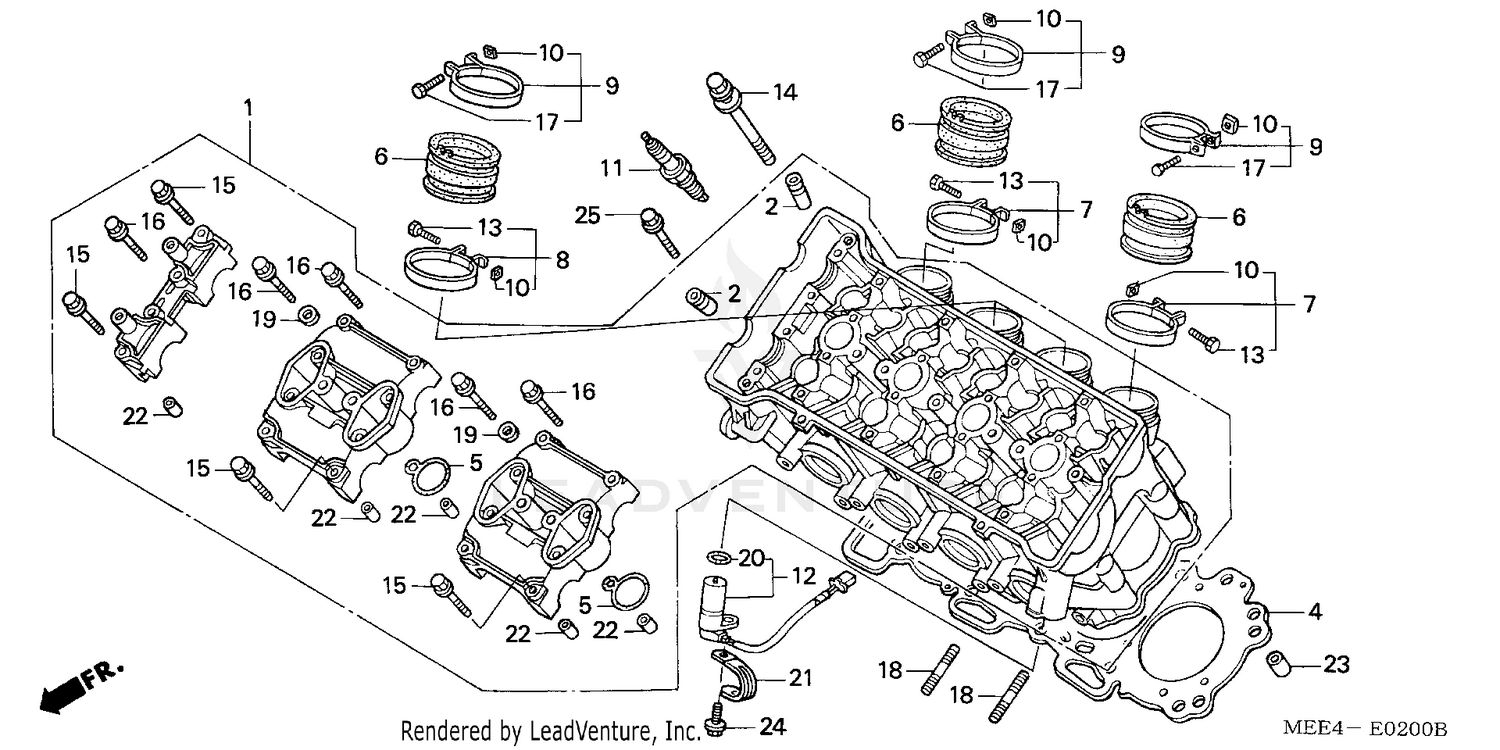

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-MEE-D00
Superseded by 12010-MEE-D01
|
$1,159.68 | ||
|
Available to order. Add to View Price |
|||
|
#1
CYLINDER HEAD ASSY.
12010-MEE-D01
|
$1,159.68 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-MBW-305
|
$17.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-MEE-013
|
$93.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, PLUG HOLE
12395-MBW-003
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
INSULATOR, THROTTLE BODY
16211-MEE-000
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND A, INSULATOR
16217-MEE-000
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND B, INSULATOR
16218-MEE-000
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND C, INSULATOR
16219-MEE-000
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPARK PLUG (IMR9C-9HES) (NGK)
31912-MEL-003
|
$20.86 | ||
|
Unavailable |
|||
|
#12
PULSER ASSY., CAM
36140-MEE-003
|
$74.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, RECESSED (5X30)
90006-MEE-000
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (9X90)
90007-MBW-000
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X45.5)
90017-MA6-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X39.5)
90019-MA6-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, RECESSED (5X28)
90023-MM5-000
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, STUD (8X24)
90035-MM5-000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (16X2.1) (NOK)
91309-PX4-003
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP (2X60)
91410-679-000
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL (8X20)
94301-08200
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL (10X16)
94301-10160
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X18)
95701-06018-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X45)
96001-06045-00
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
