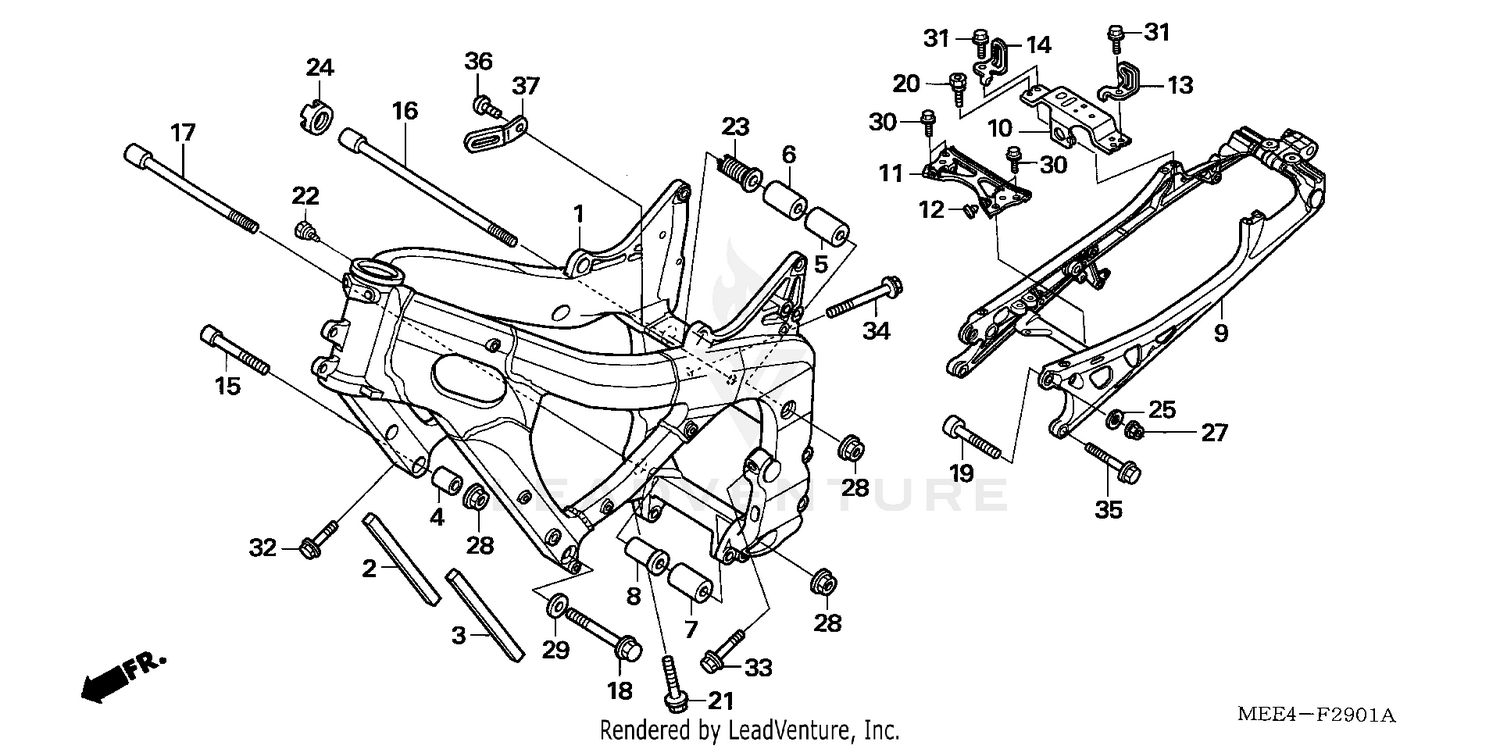

Frame ('05-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME *NH461M* (TEMPLE BLACK METALLIC)
50100-MEE-D00ZA
Superseded by 50100-MEE-L00ZA
|
$1,812.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
MAT, R. ENGINE HANGER
50115-MEE-300
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAT, L. ENGINE HANGER
50116-MEE-300
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR A, ENGINE HANGER
50191-MEE-000
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR B, ENGINE HANGER
50192-MEE-000
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR B, ENGINE HANGER
50192-MEE-000
|
$5.66 | ||
|
Unavailable |
|||
|
#7
COLLAR C, ENGINE HANGER
50193-MEE-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR D, ENGINE HANGER
50194-MEE-D00
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
RAIL ASSY., SEAT
50200-MEE-D00
|
$503.06 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CENTER CROSS
50204-MEE-D00
|
$25.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, FR. CROSS
50214-MEE-D00
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, TANK STOPPER
50352-MEE-D00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, L. HOOK
77106-MEE-D00
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, R. HOOK
77312-MEE-D00
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SOCKET (12X61)
90101-MEE-000
|
$21.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL SOCKET (12X301)
90102-MEE-000
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (12X262)
90103-MEE-000
|
$27.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (12X60)
90104-MEE-000
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SPECIAL (10X40)
90109-MEE-010
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL (8MM)
90115-MJ1-830
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (8X40)
90117-MEE-000
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SPECIAL (6MM)
90119-MEE-000
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, ADJUSTING (20X48.5)
90152-MCF-000
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, LOCK (20MM)
90201-MW0-000
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
90401-430-000
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE (10MM)
94050-10000
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, FLANGE (12MM)
94050-12000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (12MM)
94102-12000
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X14)
96300-06014-00
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (8X18)
96300-08018-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X35)
96400-08035-07
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (8X45)
96400-08045-07
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X85)
96400-08085-07
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (10X35)
96400-10035-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, SOCKET (6X13)
90130-MEE-000
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP (4X50)
90601-KJ9-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
