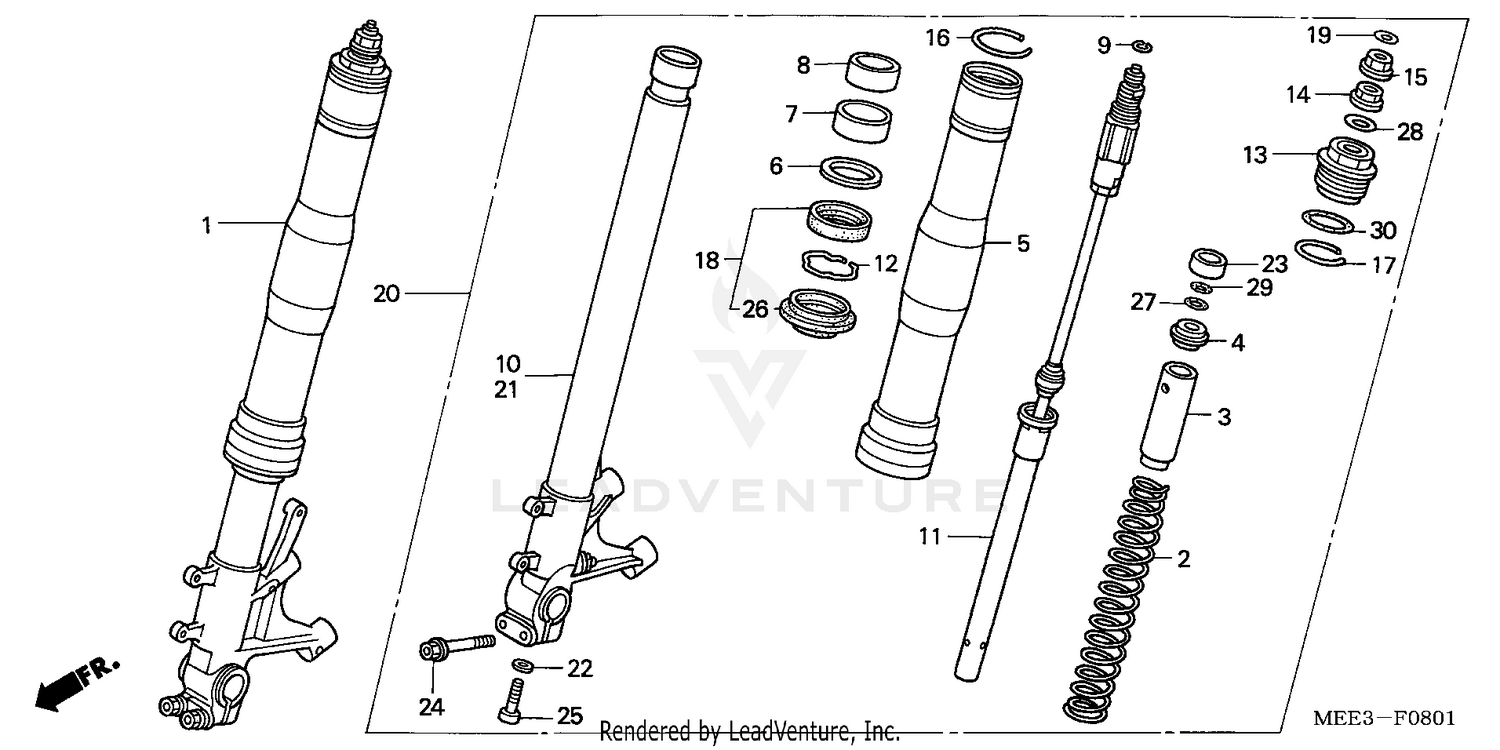

Front Fork ('05-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK ASSY., R. FR.
51400-MEE-D01
|
$702.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, FR. FORK
51401-MEE-D01
|
$56.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SPRING
51403-MEE-D01
|
$7.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, SPRING SEAT
51406-MW4-003
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE (OUTER)
51410-MEE-D01
|
$298.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, BACK-UP
51412-MB4-003
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, GUIDE (SHOWA)
51414-KCR-003
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SLIDER (SHOWA)
51415-KCR-003
|
$14.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING B, STOPPER
51423-MCJ-751
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, R. SLIDE
51425-MEE-D01
|
$308.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, FR.
51430-MEE-D01
|
$381.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, OIL SEAL STOPPER
51447-KA4-711
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FR. FORK
51450-MEE-D01
|
$42.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, LOCK
51451-MCJ-751
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE B, ADJUSTING
51453-MCJ-751
|
$17.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, STOPPER
51455-MEE-D01
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, STOPPER
51456-MEE-D01
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL SET, FR. FORK
51490-MEE-D01
Superseded by 51490-MFF-D01
|
$32.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
LABEL
51496-MCJ-751
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#20
FORK ASSY., L. FR.
51500-MEE-D01
|
$685.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, L. SLIDE
51525-MEE-D01
|
$302.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPECIAL (10MM)
52442-KA3-711
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, SPRING ADJUSTER
53702-MEE-D01
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X40)
90108-MR7-000
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SOCKET (10X35)
90126-MR7-003
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (SHOWA)
91254-MEE-D01
Superseded by 91251-MKA-D81
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (10.8X2.4)
91255-MCJ-751
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (23.3X2.4)
91256-MCJ-751
Superseded by 91356-KFG-003
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (9.5X1.5)
91257-MCJ-751
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (39.7X2.4)
91258-MEE-D01
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
