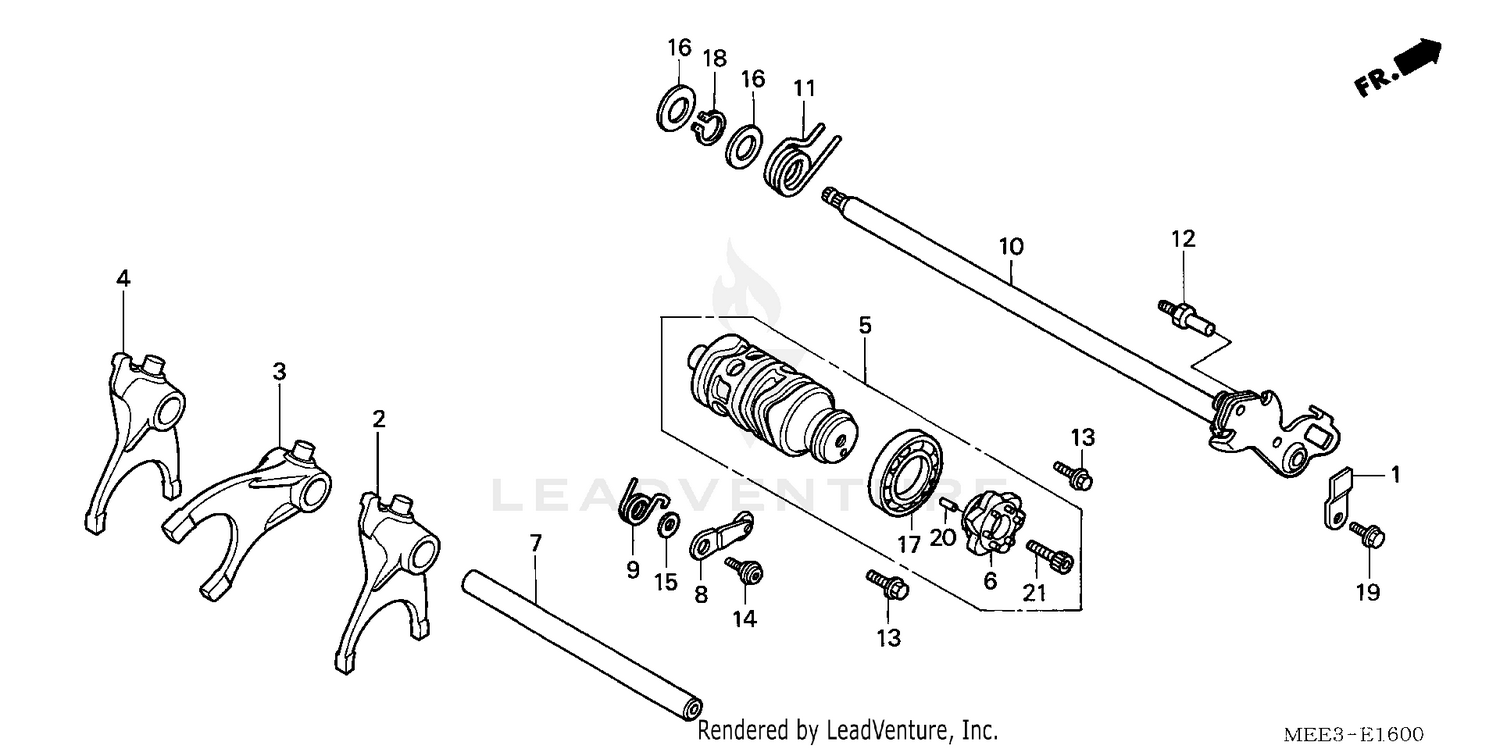

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, TENSIONER SETTING
14623-MV1-000
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, R. GEARSHIFT
24211-MEE-000
|
$69.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, CENTER GEARSHIFT
24212-MEE-000
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
FORK, L. GEARSHIFT
24213-MEE-000
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, GEARSHIFT
24310-MEE-000
|
$136.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
CENTER, SHIFT DRUM
24315-MW0-791
|
$42.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, GEARSHIFT FORK
24321-MEE-000
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOPPER, GEARSHIFT DRUM
24430-MAS-E00
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SHIFT DRUM STOPPER
24435-MAE-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPINDLE, GEARSHIFT
24610-MEE-000
|
$79.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, SHIFT RETURN
24651-MAE-000
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SHIFT RETURN SPRING
24652-035-000
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X12)
90021-MM5-000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIVOT, SHIFT DRUM STOPPER ARM
90022-MY5-600
|
$12.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, DRUM STOPPER
90417-360-000
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (14MM)
90451-155-000
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, BALL (16005) (NTN)
91008-374-003
|
$17.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP, OUTER (14MM)
94510-14000
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROLLER (4X8)
96220-40080
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (8X20)
96600-08020-10
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
