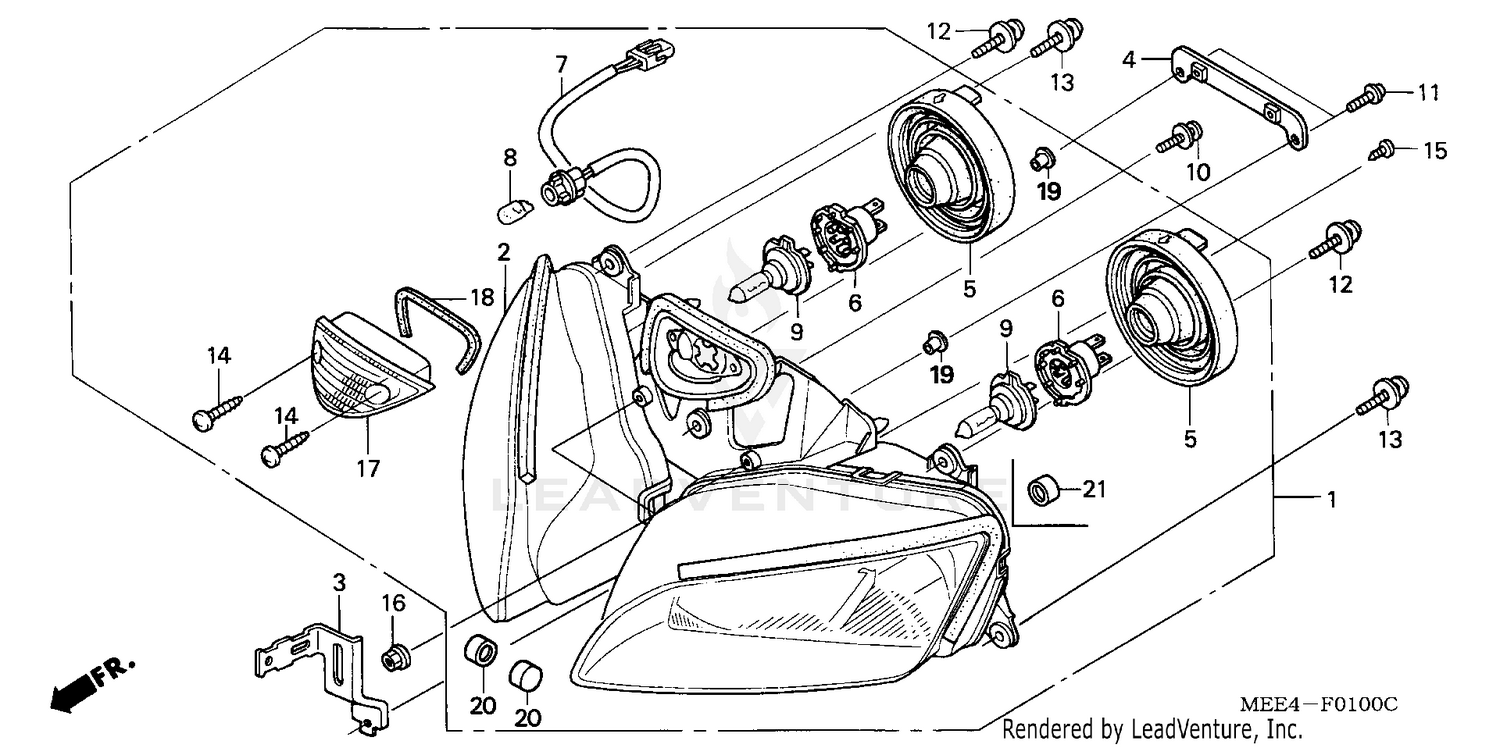

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY. (12V 55W)
33100-MEE-A01
|
$562.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
HEADLIGHT UNIT
33102-MEE-A01
|
$491.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, RELAY
33105-MEE-000
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, BANK ANGLE SENSOR
33106-MEE-010
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, RUBBER
33112-KPB-003
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SOCKET, HEADLIGHT
33130-MAT-611
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
SOCKET
33140-MEE-003
|
$26.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V 5W) (STANLEY)
33301-SA0-741
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)
34901-MAT-611
|
$31.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-WASHER (5X25)
93891-05025-07
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-WASHER (5X30)
93891-05030-07
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-WASHER (5X20)
93894-05020-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-WASHER (5X25)
93894-05025-07
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING (4X16)
93901-344J0
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPING (4X12)
93903-34380
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (5MM)
94050-05070
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
LENS, POSITION LIGHT
33180-MEE-003
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, SEAL
33184-MEE-641
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, HEADLIGHT
33103-MEE-641
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE, CP
33113-MBW-D21
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, CP
33113-MEE-D01
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
