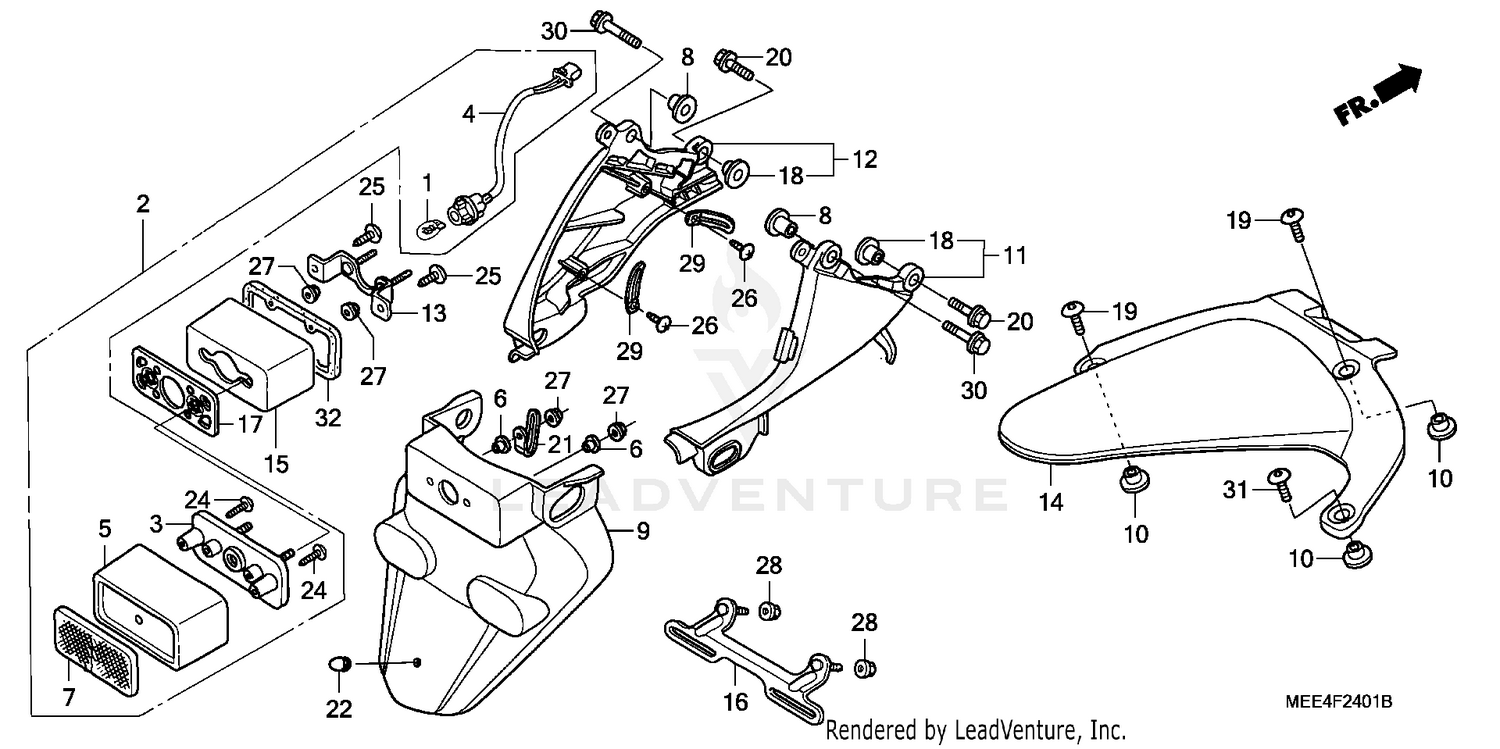

Rear Fender ('05-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB (12V 5W) (STANLEY)
33301-SA0-741
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
LIGHT ASSY., LICENSE (12V 5W)
33720-MEE-D00
|
$130.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
BASE, LICENSE
33721-MEE-003
|
$14.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET, LICENSE
33722-MEE-D00
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, LICENSE
33723-MEE-003
|
$43.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, REGULATOR MOUNTING
33731-MJ0-940
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
REFLECTOR, REFLEX
33741-MZ7-003
|
$24.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, CHAIN CASE
40514-310-000
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
FENDER A, RR.
80100-MEE-A00
|
$25.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, FENDER SETTING
80103-MCJ-750
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, R. FENDER A
80105-MEE-D00
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, L. FENDER A
80106-MEE-D00
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, LICENSE LIGHT BRACKET
80118-MEE-A00
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
FENDER C, RR.
80120-MEE-D00
|
$23.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, LICENSE LIGHT
80201-MEE-A00
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, NUMBER PLATE
84700-MEE-670
|
$18.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, LICENSE LIGHT
84703-MEE-D00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, SIDE MOUNTING
90001-961-670
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (5X20)
90103-MBG-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X29) (GUIDE)
90166-MEE-D00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP (4X50)
90601-KJ9-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, CONE
90899-KL8-000
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING (4X16)
93901-34410
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPING (4X10)
93913-14120
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, TAPPING (4X10) (PO)
93913-14180
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE (5MM)
94050-05000
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, FLANGE (6MM)
94050-06070
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, WIRE (2X40)
94591-24000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X20)
96300-06020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN (5X15)
90113-MCJ-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET, LENS
33729-MEE-003
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
