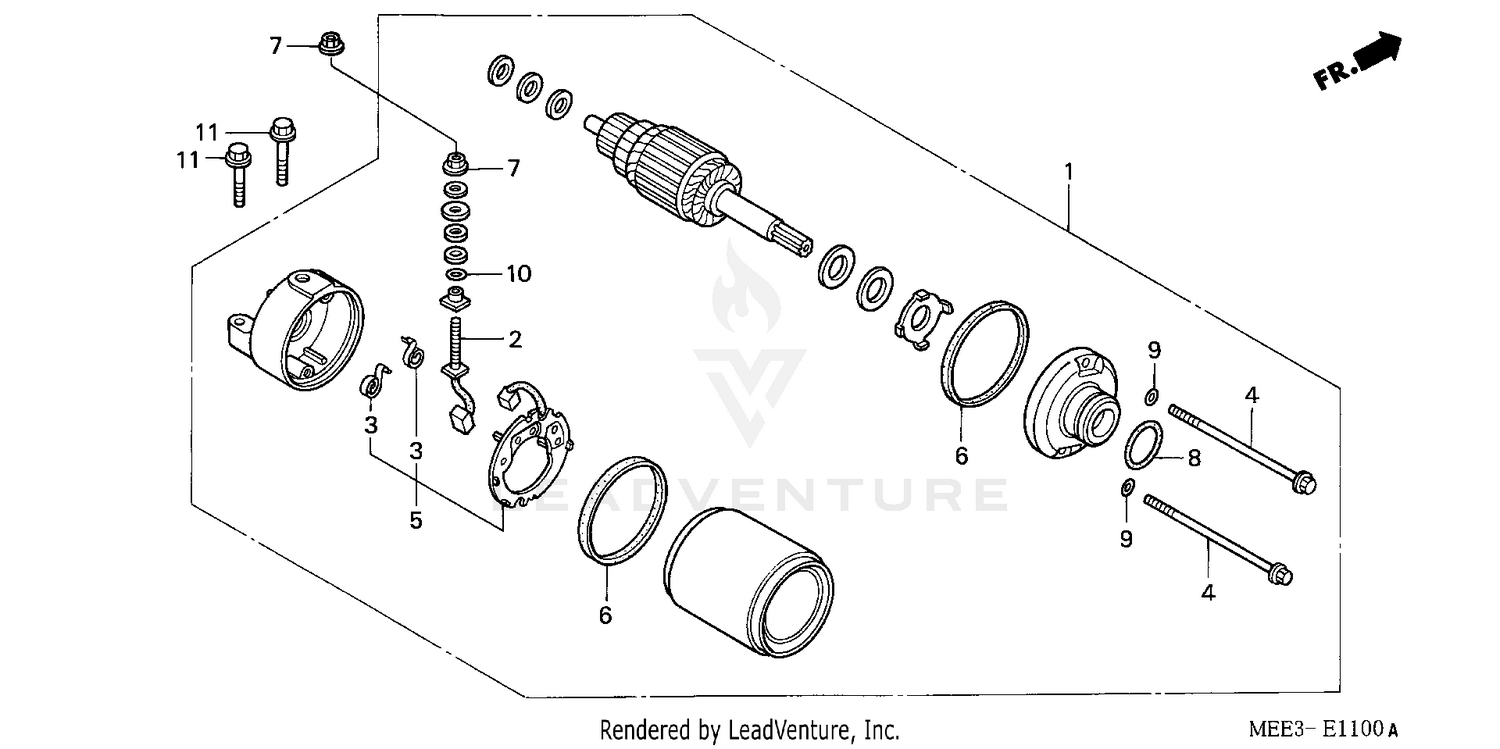

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY.
31200-MEE-D00
|
$429.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
TERMINAL SET, BRUSH
31201-MBE-008
|
$13.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, CARBON BRUSH
31204-KS5-901
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SETTING
31205-KFK-003
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER SET, BRUSH
31206-MBE-008
|
$28.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING
31207-MBE-008
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-WASHER (6MM)
90071-MB0-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (24.4X3.1)
91312-MG7-003
|
$7.61 | ||
|
Unavailable |
|||
|
#9
O-RING
91320-MBE-008
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
91320-MB0-000
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X25)
95801-06025-08
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
