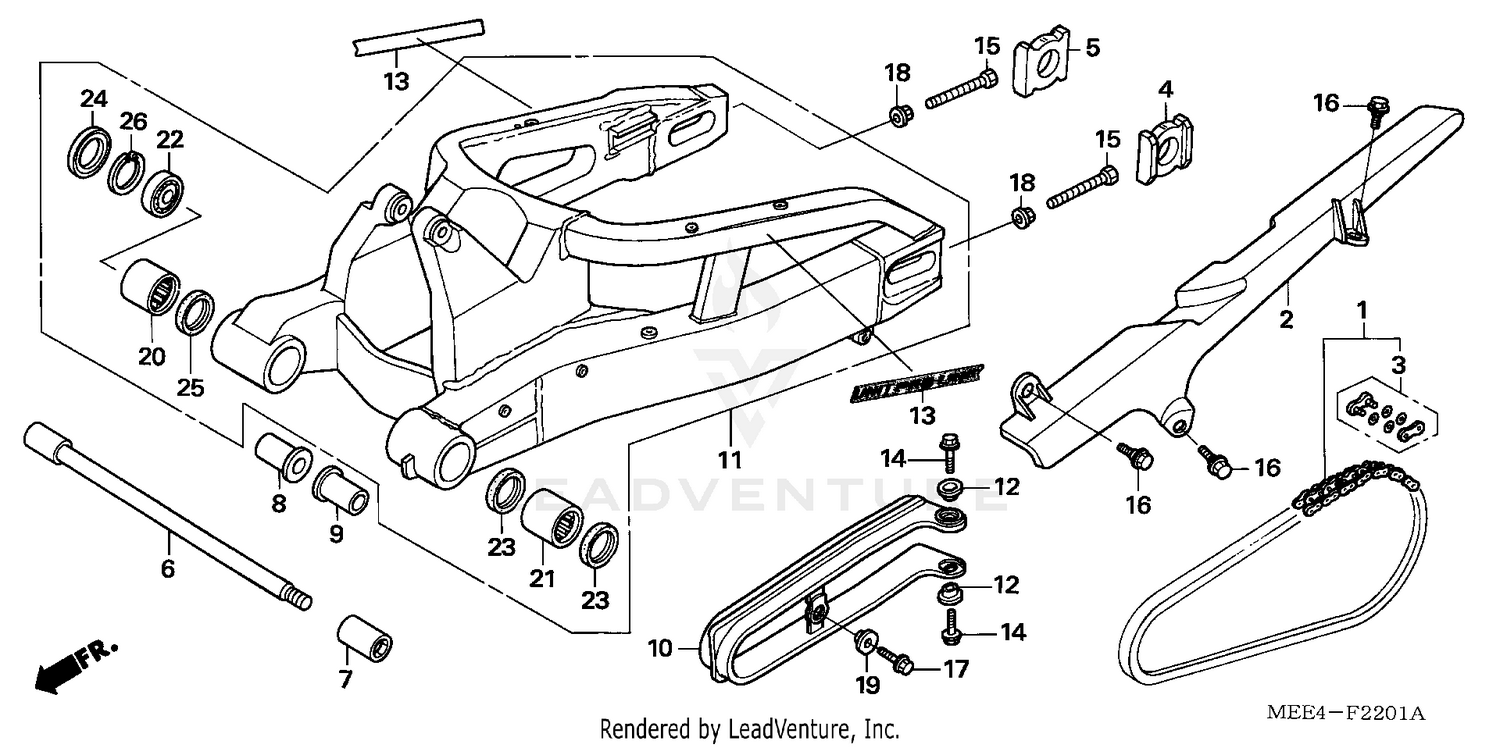

Swingarm ('05-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN SET, DRIVE (DID525HV-112L-120L) (DAIDO) (STANDARD LINK 112L)
06405-MAL-P00
|
$169.03 | ||
|
Available to order. Add to View Price |
|||
|
#1
CHAIN SET, DRIVE (RK525ROZ1) (112L-120L) (RK EXCEL) (STANDARD LINK 112L)
06405-MAL-P10
|
$157.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE, DRIVE CHAIN
40510-MEE-000
Superseded by 40510-MEE-010
|
$58.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE, DRIVE CHAIN
40510-MEE-010
|
$58.08 | ||
|
Unavailable |
|||
|
#3
MASTER LINK SET (DAIDO)
40535-MAL-G01
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER LINK SET (RK EXCEL)
40535-MAL-G02
|
$9.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, L. RR. AXLE
42305-MEE-D00
|
$36.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, R. RR. AXLE
42306-MEE-D00
|
$30.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SWINGARM PIVOT
52101-MEE-D00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SWINGARM PIVOT
52102-MCW-D00
|
$18.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, R. PIVOT DISTANCE
52142-MEE-000
|
$23.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, L. PIVOT DISTANCE
52143-MEE-000
|
$23.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
SLIDER, CHAIN
52170-MEE-000
|
$38.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWINGARM SUB-ASSY., RR.
52200-MEE-D00
|
$914.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
81312-GJ5-000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
MARK (UNIT PROLINK)
87121-MEE-000
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X18)
90105-MY9-000
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (8X50)
90106-MCF-D00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6MM)
90113-MAS-E00
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X14)
90130-MCJ-000
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (8MM)
90309-357-000
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (6MM)
90485-MB2-000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE
91071-MBW-E11
|
$19.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, NEEDLE
91071-MR7-003
|
$29.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (20X37X9)
91072-MR7-003
|
$20.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (28X37X4)
91202-MR7-003
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (26X37X5)
91214-MR7-003
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL (28X34X4)
91251-MBW-E11
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP (INNER) (37MM)
94520-37000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
