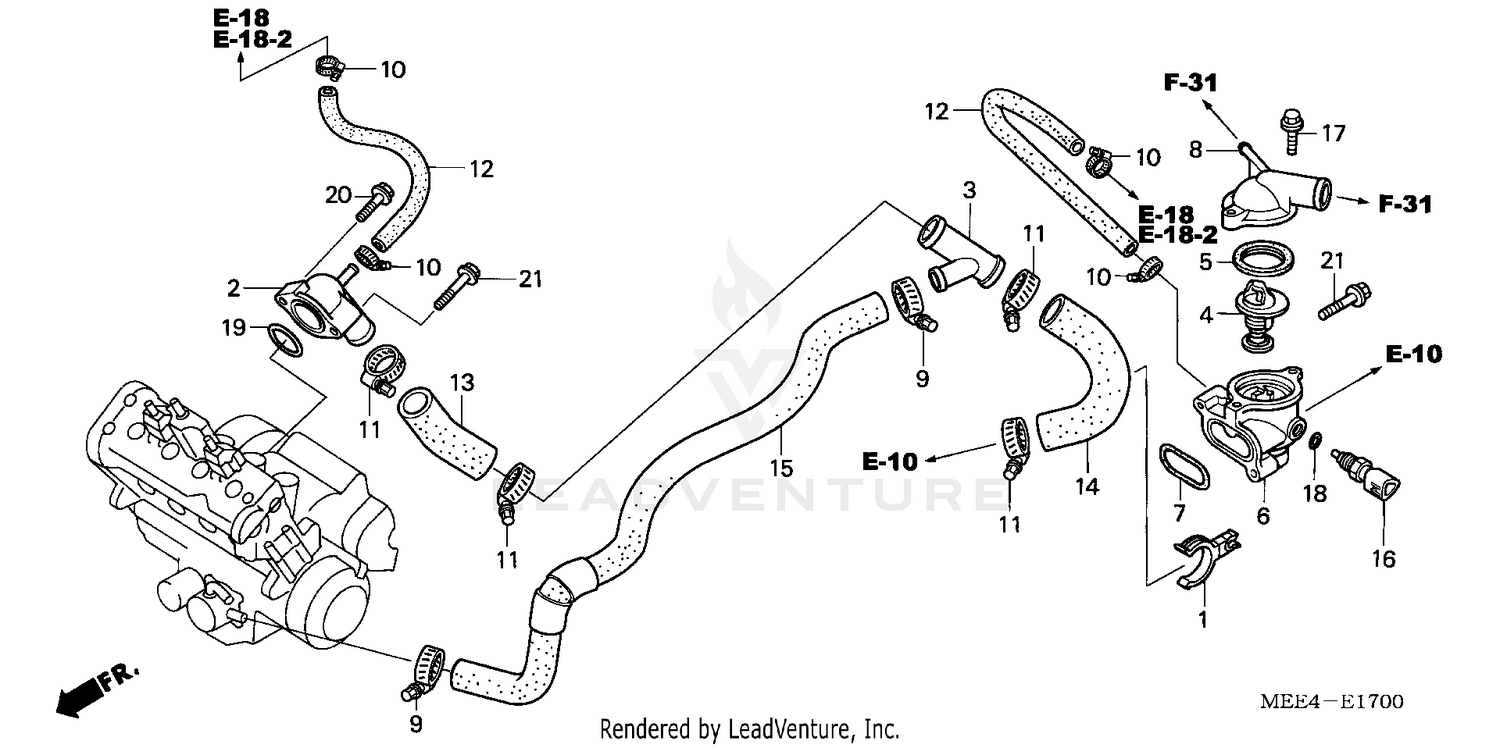

Thermostat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, HOSE
16965-MEE-003
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, WATER
19063-MEE-000
|
$22.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT B, WATER
19082-MEE-000
|
$24.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
THERMOSTAT ASSY.
19300-MCJ-003
|
$60.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, THERMOSTAT
19305-KV3-010
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE, THERMOSTAT
19310-MEE-305
|
$44.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, THERMOSTAT CASE
19312-MBW-000
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, THERMOSTAT
19315-MEE-000
|
$42.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, WATER HOSE (25MM)
19504-KY1-003
|
$11.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, RADIATOR HOSE
19507-MAT-000
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, HOSE (24-32MM)
19516-ML7-691
|
$16.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, FAST IDLE VALVE
19522-MEE-000
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE A, WATER SUB
19524-MEE-000
|
$11.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE A, WATER
19525-MEE-000
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE C, WATER
19527-MEE-000
|
$28.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
SENSOR ASSY., WATER TEMPERATURE
37870-KRJ-901
|
$35.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X23) (CT200)
90018-ZE1-000
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPECIAL (12MM)
90454-MC7-000
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (29.7X2.4) (NOK)
91356-425-003
Superseded by 91356-425-005
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (29.7X2.4) (NOK)
91356-425-005
|
$3.34 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
