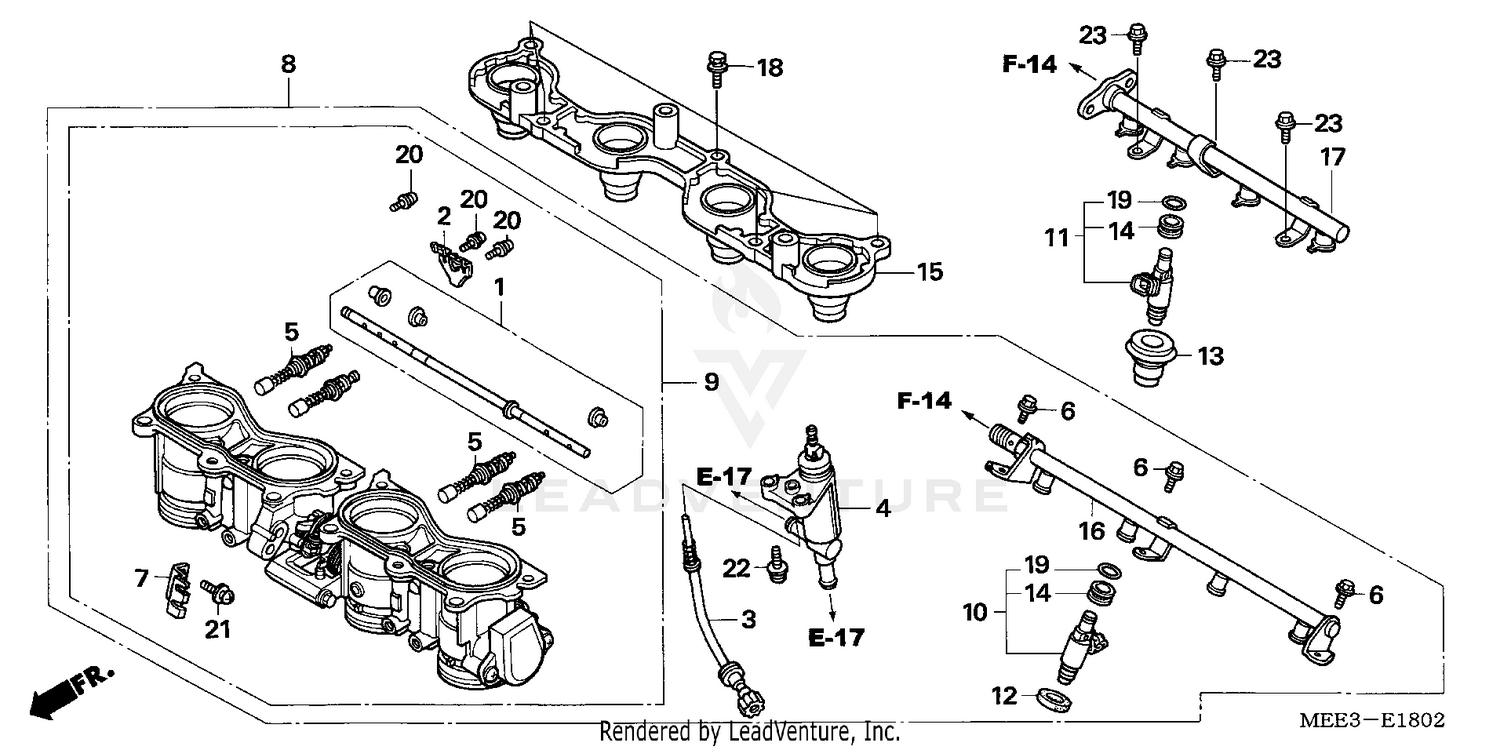

Throttle Body ('05-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT SET, STARTER
16017-MEE-003
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER, STARTER
16018-MEE-003
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW SET, STOP
16029-MEE-003
|
$38.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
WAX ASSY.
16044-MCJ-751
|
$66.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE SET, STARTER
16046-MEE-003
|
$35.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X12)
16080-MCJ-003
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, WIRE
16169-MEE-013
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BODY ASSY., THROTTLE (GQ63G A)
16400-MEE-A01
|
$1,577.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BODY ASSY., THROTTLE
16401-MEE-A01
|
$996.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
INJECTOR ASSY., FUEL
16450-MEE-D01
|
$181.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
INJECTOR ASSY., FUEL
16460-MEE-D01
|
$155.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL RING, INJECTOR
16472-MCW-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL RING, INJECTOR
16472-MEL-000
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION RING, INJECTOR
16473-P7A-004
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY, INJECTOR
16510-MEE-D00
|
$137.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, FUEL
16610-MEE-003
|
$118.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE, FUEL FEED
16620-MEE-D00
|
$111.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (5X14)
90003-MEL-000
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
91301-P7A-004
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-WASHER (3X8)
93892-03008-10
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (5X12)
93892-05012-00
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (5X12)
93892-05012-10
Superseded by 93892-05012-00
|
$0.81 | ||
|
Unavailable |
|||
|
#22
SCREW-WASHER (6X20)
93892-06020-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (6X20)
93892-06020-10
Superseded by 93892-06020-00
|
$0.85 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
