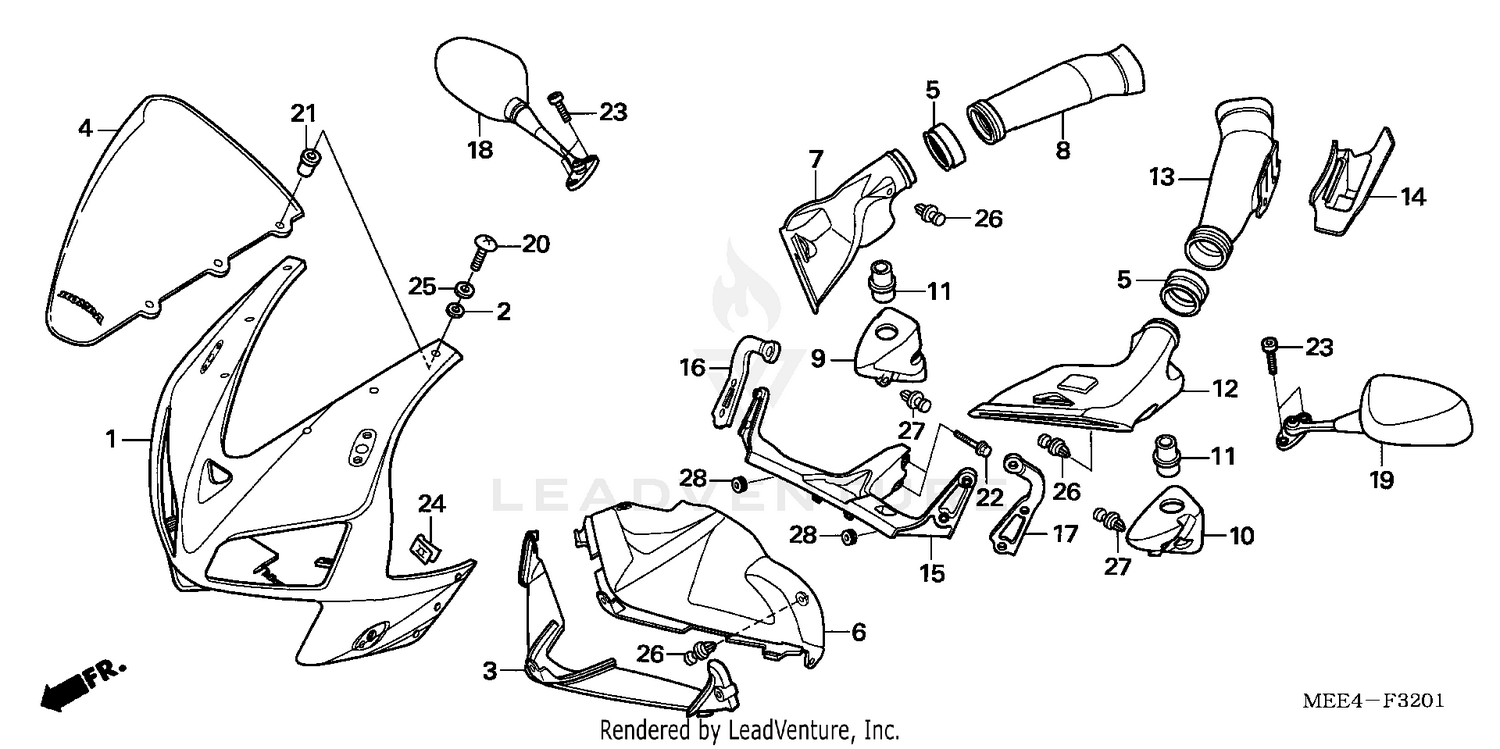

Upper Cowl ('05-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COWL (UPPER) (TYPE1) (WL)
64100-MEE-A10ZA
|
$940.46 | ||
|
Available to order. Add to View Price |
|||
|
#1
COWL (UPPER) (TYPE3) (WL)
64100-MEE-A10ZC
|
$906.61 | ||
|
Available to order. Add to View Price |
|||
|
#1
COWL (UPPER) (TYPE5) (WL)
64100-MEE-A10ZD
|
$926.87 | ||
|
Available to order. Add to View Price |
|||
|
#1
COWL (UPPER) (TYPE4) (WL)
64100-MEE-A10ZE
|
$920.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, SCREEN SETTING
64205-166-610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, AIR IN.
64230-MEE-D00
|
$33.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
WINDSCREEN SET (TYPE1) (WL)
64250-MEE-D00ZA
|
$170.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT B, AIR DUCT
64320-MEE-D00
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOILER, FR.
64321-MEE-D00
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUCT A, R. AIR
64330-MEE-A00
|
$69.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUCT B, R. AIR
64335-MEE-940
|
$43.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
RESONATOR, R. AIR DUCT
64340-MEE-A00
|
$23.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
RESONATOR, L. AIR DUCT
64345-MEE-A00
|
$27.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, RESONATOR
64351-MEE-A00
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUCT A, L. AIR
64380-MEE-A00
|
$68.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUCT B, L. AIR
64385-MEE-940
|
$37.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, RELAY
64390-MEE-D00
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY A, COWL (UPPER)
64501-MEE-000
|
$143.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY B, R. COWL (UPPER)
64502-MEE-000
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY B. L, COWL (UPPER)
64503-MEE-000
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
MIRROR ASSY., R. BACK
88110-MEE-003
|
$146.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
MIRROR ASSY., L. BACK
88120-MEE-003
|
$146.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TRUSS (5X15)
90109-MCJ-750
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X28)
90120-MEE-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SOCKET (6X13)
90130-MEE-000
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, CLIP (5MM)
90312-MT3-000
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (5MM)
90504-964-000
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, BODY COVER
90683-GR1-003
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, BODY
90683-MBW-003
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
RUBBER, CONTROL BOX
90852-898-000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
