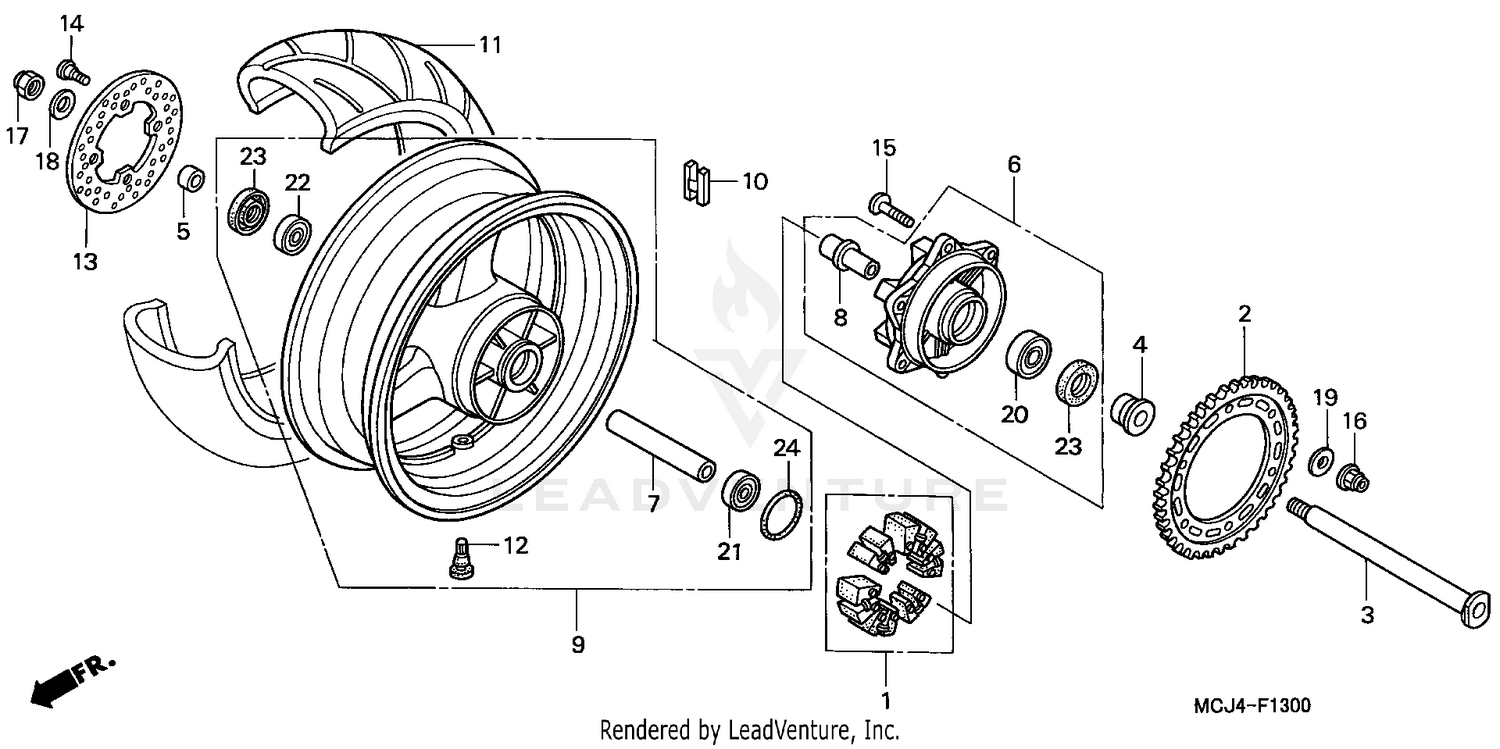

2003 Honda CBR 954RR REAR WHEEL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-MCF-000
|
$85.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (43T)
41201-MCJ-670
|
$126.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-MCJ-750
|
$50.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RR. WHEEL SIDE
42311-MCJ-750
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. BRAKE SIDE
42312-MCJ-750
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLANGE SUB-ASSY., RR. DRIVEN
42615-MCF-000
|
$281.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, RR. AXLE DISTANCE
42620-MCF-000
|
$31.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR B, RR. WHEEL DISTANCE
42625-MCF-000
|
$28.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL SUB-ASSY., RR. (TYPE2)
42650-MCJ-750ZA
|
$770.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
WEIGHT, BALANCE (10G)
42704-MB0-000
Superseded by 42704-MCF-D60
|
$14.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
WEIGHT, BALANCE (10G)
42704-MCF-D60
|
$14.55 | ||
|
Unavailable |
|||
|
#10
WEIGHT, BALANCE (20G)
42705-MB0-000
Superseded by 42705-MCF-D60
|
$16.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
WEIGHT, BALANCE (20G)
42705-MCF-D60
|
$16.55 | ||
|
Unavailable |
|||
|
#10
WEIGHT, BALANCE (30G)
42706-MB0-000
Superseded by 42706-MCF-D60
|
$16.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR. (190/50ZR17) (73W PSE) (MICHELIN) (NA USE ALT:42711-MCJ-003)
42711-MCJ-007
|
$323.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR. (190/50ZRR17) (M/C 73W) (BS)
42711-MCJ-751
|
$226.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE, RIM (BS)
42753-ML7-003
|
$14.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE, RIM (MICHELIN)
42753-MT4-005
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISK, RR. BRAKE
43251-MCJ-000
Superseded by 43251-MEE-000
|
$262.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISK, RR. BRAKE
43251-MEE-000
|
$262.56 | ||
|
Unavailable |
|||
|
#14
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MBB-000
Superseded by 90105-MV9-003
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.35 | ||
|
Unavailable |
|||
|
#15
BOLT (10X30)
90121-MCF-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (10MM)
90304-KAE-871
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (22MM)
90305-KZ4-J20
|
$10.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (22MM)
90305-MAZ-000
Superseded by 90305-KZ4-J20
|
$10.24 | ||
|
Unavailable |
|||
|
#18
WASHER (23X37X2.5)
90401-MCJ-000
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (10MM)
90502-MCF-000
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (27X52X23.8)
91051-MCF-003
|
$50.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6005)
91052-MCF-003
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6205X2)
91053-MAZ-003
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (35X52X7.5)
91254-MCF-003
Superseded by 91254-MEE-003
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (35X52X7.5)
91254-MEE-003
|
$8.18 | ||
|
Unavailable |
|||
|
#24
O-RING (51X2)
91352-MCF-003
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
