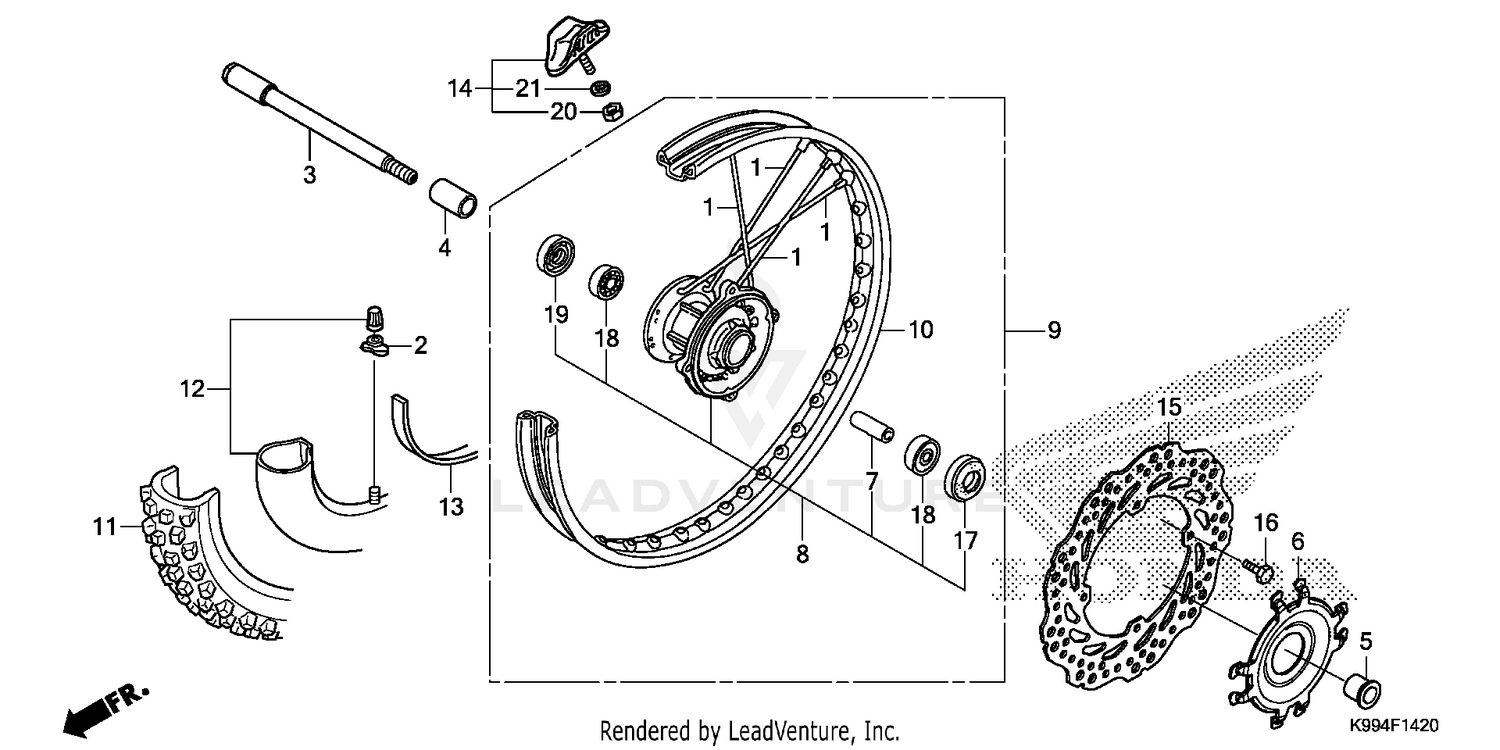

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET, FR.
06441-KPS-730
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPOKE SET, FR.
06441-K99-A00
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE
42714-KA3-710
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, FR. WHEEL
44301-K99-A00
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. WHEEL
44311-K99-A00
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, R. FR. WHEEL SIDE
44311-KPE-900
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, FR. HUB
44610-K99-A00
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, FR. AXLE DISTANCE
44620-KPS-900
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
HUB SUB-ASSY., FR.
44635-KPS-730
Superseded by 44635-KPS-900
|
$193.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL SUB-ASSY., FR.
44650-K99-A00
|
$415.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIM, FR. WHEEL
44701-KPS-902
|
$288.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, FR. (80/100-21 51R NHS) (PIRELLI)
44711-K99-A01
|
$125.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, TIRE (MA-21) (PIRELLI)
44712-MAN-622
|
$54.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAP, TIRE (1.40-21) (PIRELLI)
44713-KW8-901
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
STOPPER, BEAD (1.60)
44715-MA0-770
|
$42.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
DISK, FR. BRAKE
45351-K99-A01
|
$151.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, DISK (6X17)
90105-KAE-870
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (21X37X7) (ARAI)
90755-229-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (21X37X7) (ARAI)
90755-229-005
Superseded by 90755-229-003
|
$6.07 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (6202U)
91014-KPS-731
Superseded by 96140-62020-10
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6202U)
91014-KPS-732
Superseded by 96140-62020-10
|
$12.59 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (6202U)
96140-62020-10
|
$12.59 | ||
|
Unavailable |
|||
|
#19
DUST SEAL (22X50X5) (NOK)
91254-KA3-831
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
