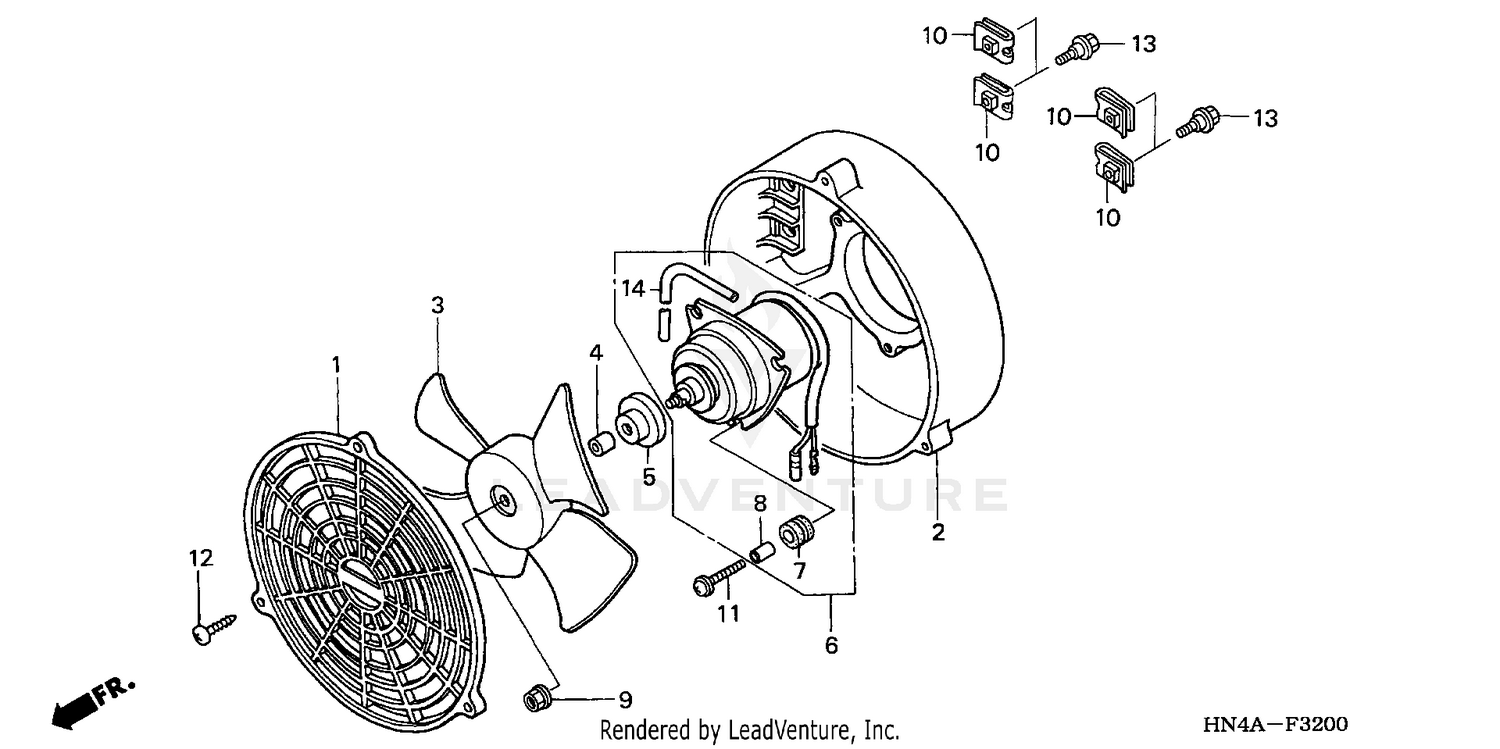

Cooling Fan Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SHROUD
19014-HM7-000
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHROUD, COOLING FAN
19015-HM7-000
|
$33.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
FAN, COOLING
19020-HM7-000
|
$56.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, FAN
19021-HC4-000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUP, WASHER
19021-VM5-305
|
$22.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTOR, COOLING FAN
19030-HM7-003
|
$425.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
19031-HA7-671
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
19032-HA7-671
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEX. (5MM) (MITSUBA)
90041-PG6-004
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CLIP (6MM)
90673-SB2-000
|
$8.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-WASHER (4X20)
93894-04020-00
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING (4X16) (PO)
93913-24480
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6MM)
90111-197-890
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULK HOSE, VINYL (4X7X8000) (4X7X540)
95003-07008-60M
|
$28.37 | ||
|
Available to order. Add to View Price |
|||
