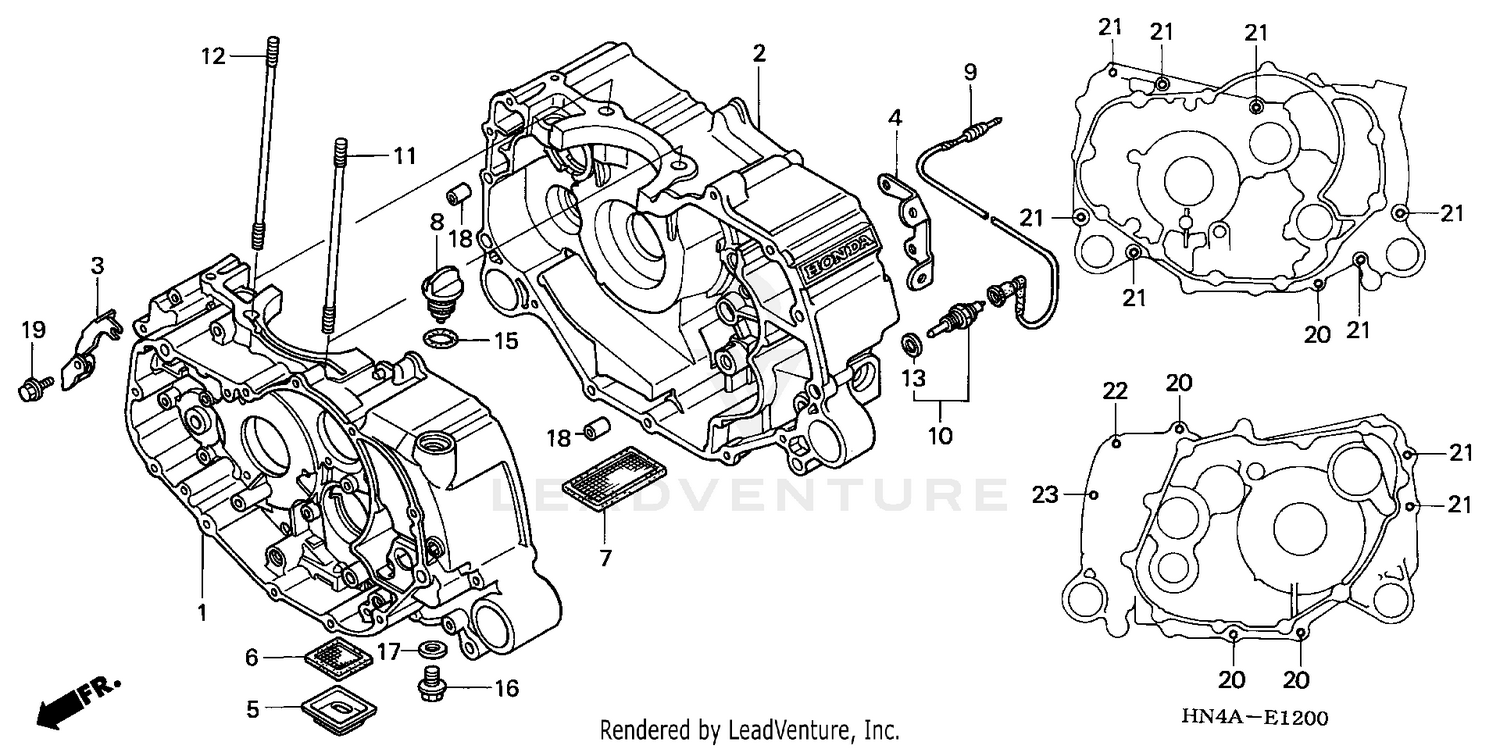

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, FR.
11100-HN5-670
|
$575.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANKCASE, RR.
11200-HN5-671
Superseded by 11200-HN5-M00
|
$580.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANKCASE, RR.
11200-HN5-M00
|
$580.81 | ||
|
Unavailable |
|||
|
#3
STAY, R. FR. ENGINE COVER
11360-HN5-670
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, L. RR. ENGINE COVER
11390-HN5-670
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
STRAINER, OIL
15153-HN5-670
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREEN, OIL FILTER
15421-HC4-005
Superseded by 15421-HR3-A40
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREEN, OIL FILTER
15421-HN5-671
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, OIL FILLER
15655-HN5-670
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUB-WIRE, THERMO SENSOR
32850-HN5-670
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., THERMOSTAT OIL (TOYO)
37750-HC4-751
|
$72.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD (10X166)
90031-HC0-000
|
$13.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD (10X206)
90031-HM7-000
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEALING
90401-HA8-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEALING
90401-HC4-750
Superseded by 90401-HA8-000
|
$4.58 | ||
|
Unavailable |
|||
|
#15
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL (8X14)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X75)
95701-06075-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X105)
95701-06105-00
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X115)
95701-06115-00
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
