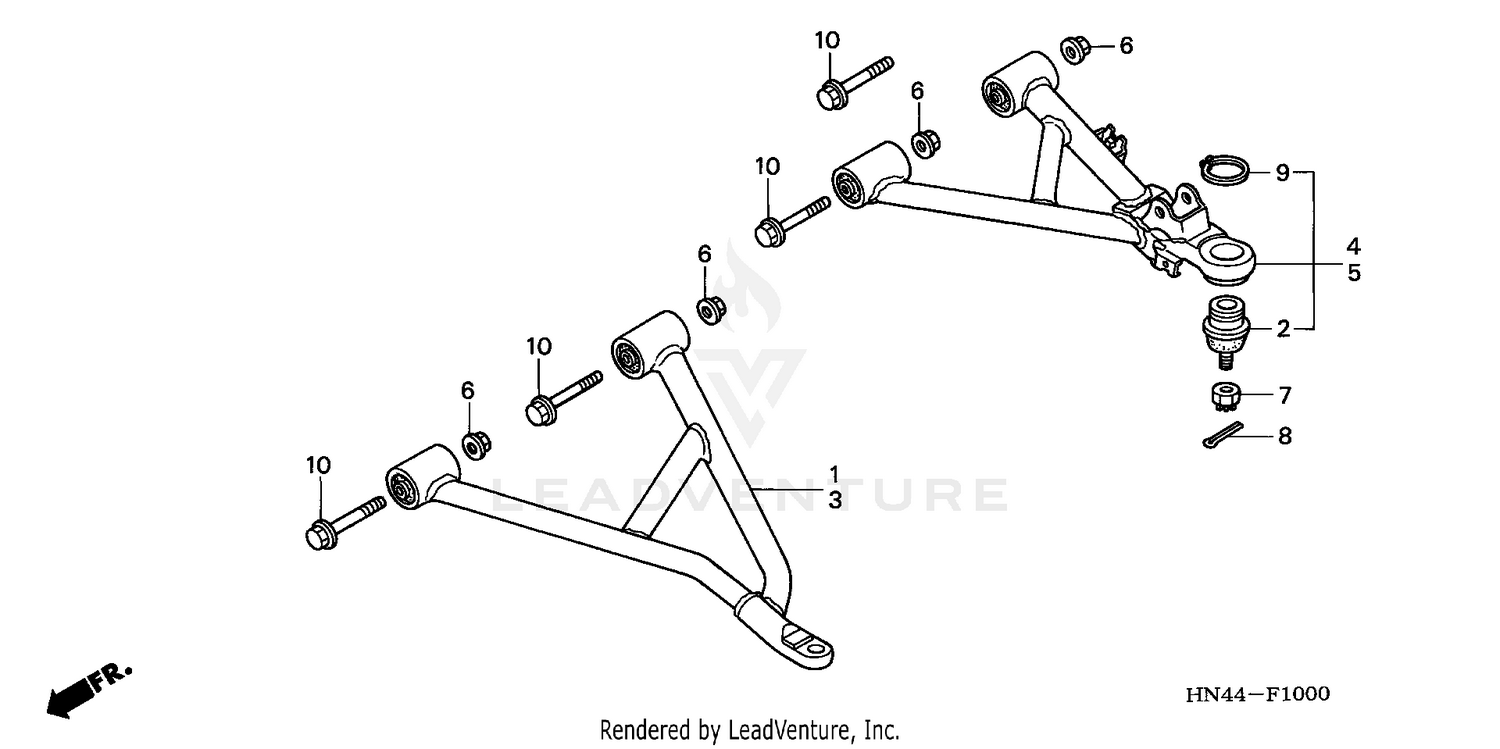

Front Arm (trx350tm/te) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM ASSY., R. (LOWER)
51350-HN4-670
|
$94.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT A, ARM BALL
51355-HN0-A01
Superseded by 51375-HP5-601
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT A, ARM BALL
51375-HP5-601
|
$24.15 | ||
|
Unavailable |
|||
|
#3
ARM ASSY., L. (LOWER)
51360-HN4-670
|
$94.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM ASSY., R. (UPPER)
51370-HN4-670
|
$125.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM ASSY., L. (UPPER)
51380-HN4-670
|
$106.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SPLIT (3.0X18)
94201-30180
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP (OUTER) (34MM)
94514-34000
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X62)
90151-HC5-000
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.60 | ||
|
Unavailable |
|||
