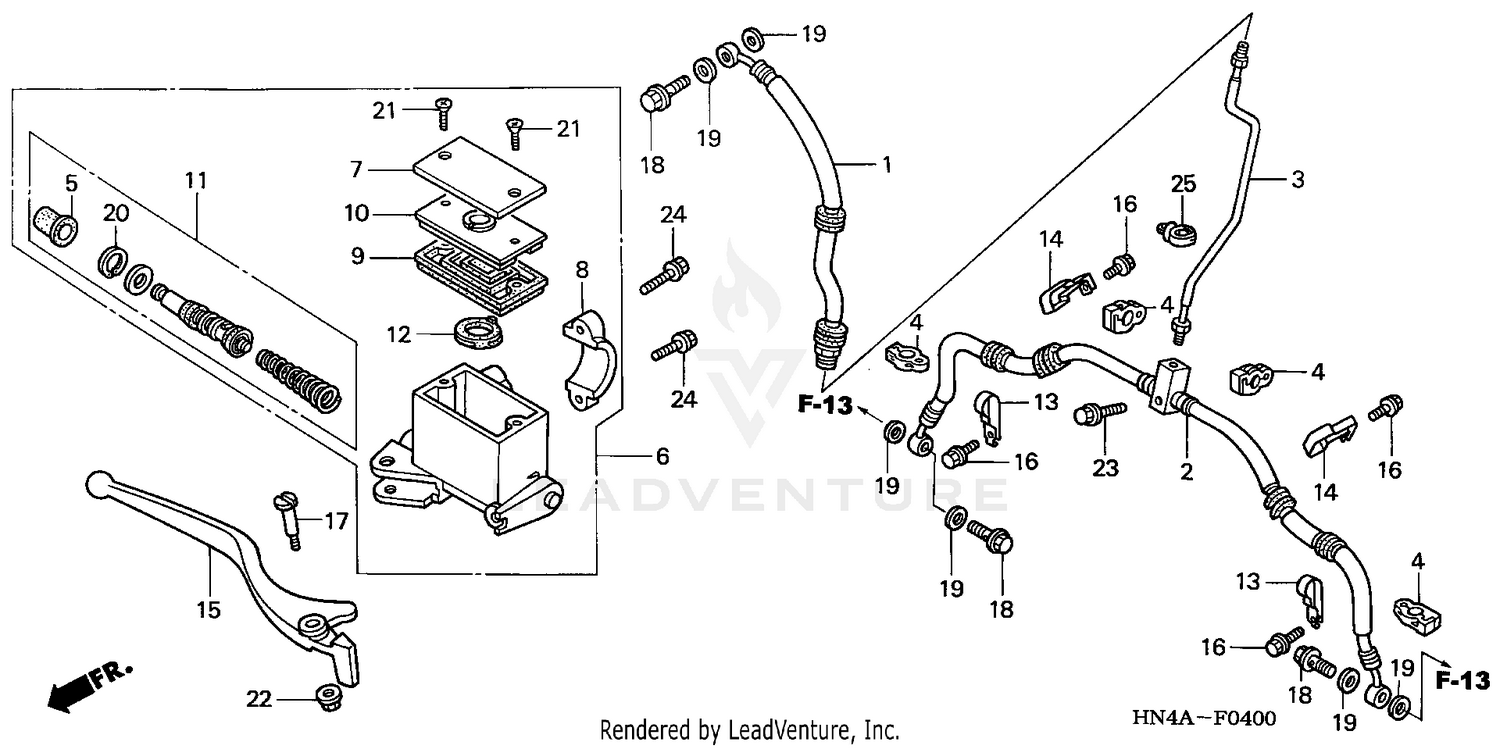

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE ASSY., FR. BRAKE
45126-HN5-671
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE B, FR. BRAKE
45127-HN5-671
|
$152.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, FR. BRAKE
45128-HN5-670
|
$14.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, BRAKE HOSE
45401-HM5-850
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
45504-410-003
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB-ASSY., FR.
45510-HN5-671
|
$101.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, MASTER CYLINDER (COO)
45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Unavailable |
|||
|
#8
HOLDER, MASTER CYLINDER
45517-166-006
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
DIAPHRAGM
45520-MG7-006
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DIAPHRAGM
45521-HA2-006
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
MASTER CYLINDER SET
45530-471-831
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEPARATOR
46666-HB9-006
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP B, FR. BRAKE HOSE
51208-HN5-670
|
$50.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP A, FR. BRAKE HOSE
51207-HN5-670
|
$55.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, R. HANDLEBAR
53175-HC0-670
|
$22.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X10)
90107-HC5-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HANDLE LEVER PIVOT
90114-166-006
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, OIL (10X22)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
90651-MA5-671
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.90 | ||
|
Unavailable |
|||
|
#22
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
95701-06025-07
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, WIRE HARNESS (25MM)
90683-SA0-003
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
