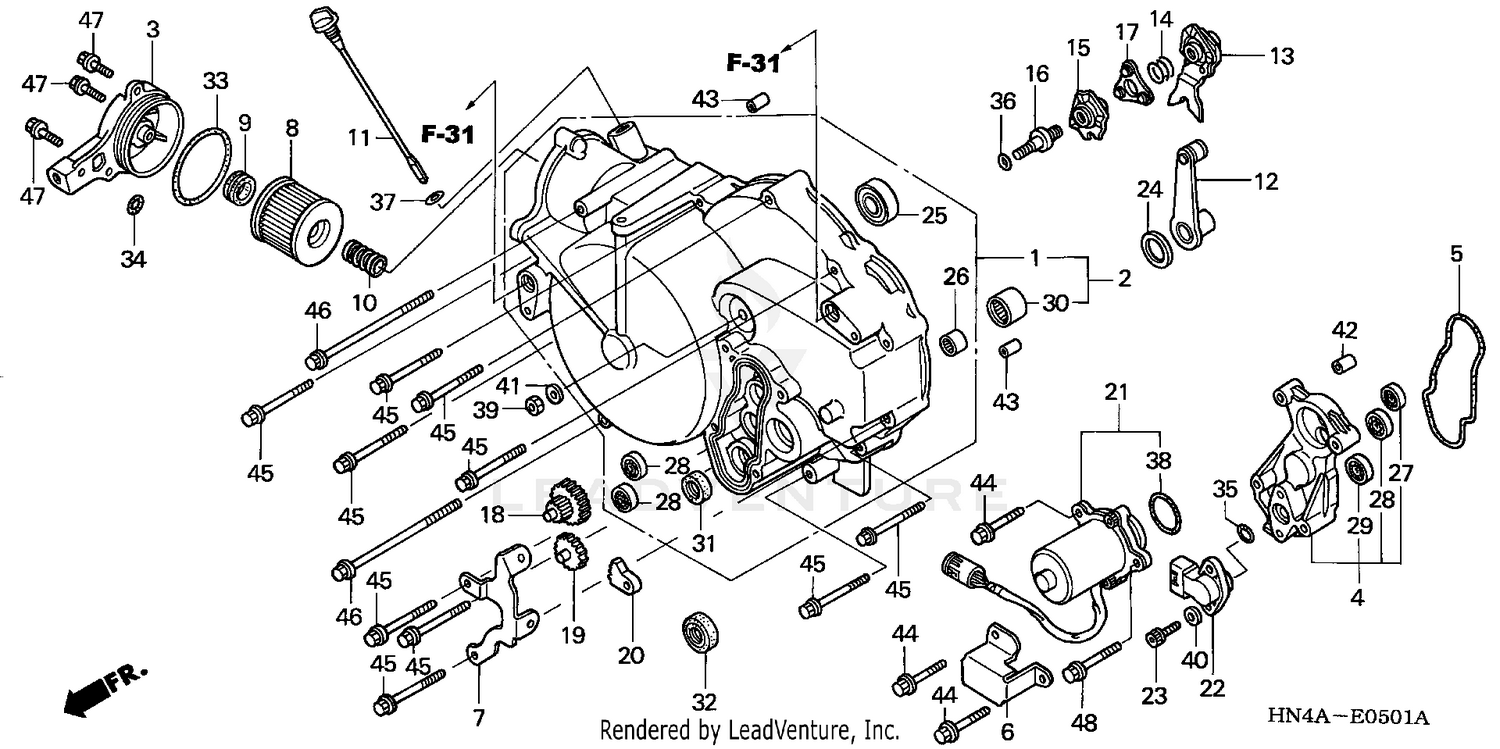

Front Crankcase Cover (trx350te/fe) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FR. CRANKCASE
11330-HN4-A10
Superseded by 11330-HN4-A70
|
$254.12 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, FR. CRANKCASE
11330-HN4-A70
|
$254.12 | ||
|
Unavailable |
|||
|
#3
COVER, OIL FILTER
11333-HN5-670
|
$56.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, REDUCTION GEAR
11335-HN5-A10
|
$51.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING, REDUCTION GEAR COVER
11337-HN5-A10
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, ANGLE SENSOR
11339-HN5-A10
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, L. FR. ENGINE COVER
11380-HN5-670
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
ELEMENT, OIL FILTER
15412-HM5-A10
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, FILTER
15413-MC8-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, OIL FILTER ELEMENT SETTING
15414-KF0-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIPSTICK, OIL
15650-HN5-670
|
$14.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, CLUTCH
22810-HM7-700
|
$101.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, CLUTCH CAM
22820-HN5-670
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, CAM PLATE SIDE
22825-HN0-671
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, CLUTCH LIFTER
22830-HN5-670
|
$15.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CLUTCH ADJUSTING
22841-HC4-000
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
RETAINER, BALL
22860-HB3-000
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, REDUCTION (40T/12T)
24616-HN0-A11
Superseded by 24616-HN0-771
|
$19.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, REDUCTION (40T/12T)
24616-HN0-771
|
$19.96 | ||
|
Unavailable |
|||
|
#19
GEAR, REDUCTION (41T/10T)
24615-HN0-A11
Superseded by 24615-HN0-771
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, REDUCTION (41T/10T)
24615-HN0-771
|
$18.24 | ||
|
Unavailable |
|||
|
#20
GEAR, REDUCTION (7/43T)
24617-HN0-A11
Superseded by 24617-HN0-771
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, REDUCTION (7/43T)
24617-HN0-771
|
$9.24 | ||
|
Unavailable |
|||
|
#21
MOTOR ASSY., CONTROL
31300-HN5-A11
|
$303.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
SENSOR ASSY., ANGLE
38800-HR3-A21
|
$31.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SOCKET (5X20)
90116-KCY-671
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (10X21.5)
90413-GE0-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (15X32X9)
91009-HF1-671
|
$25.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, NEEDLE (1010) (NTN)
91021-148-004
|
$26.88 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (696ZZ)
91050-HN0-A11
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (626ZZ)
91060-HN0-A11
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (698ZZ)
91070-HN0-A11
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (10X20X5) (ARAI)
91201-KM1-005
Superseded by 91202-HC0-003
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (10X20X5) (ARAI)
91202-HC0-003
|
$4.26 | ||
|
Unavailable |
|||
|
#33
O-RING (54X2.4) (ARAI)
91302-KF0-003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (12.7X1.9)
91304-HN5-670
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING, ANGLE SENSOR
91308-HN0-A10
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING (8.2X1.5)
91308-MC7-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (8.4X2.4)
91316-MJ8-003
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING, CONTROL MOTOR
91351-HM8-A51
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, HEX. (8MM)
94030-08000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLAIN (5MM)
94101-05800
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLAIN (8MM)
94102-08800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN, DOWEL (8X10)
94301-08100
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN, DOWEL (8X14)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE (6X45)
95701-06045-07
|
$2.17 | ||
|
Unavailable |
|||
|
#46
BOLT, FLANGE (6X105)
95701-06105-00
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE (6X18)
96001-06018-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE (6X45)
95701-06045-08
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
