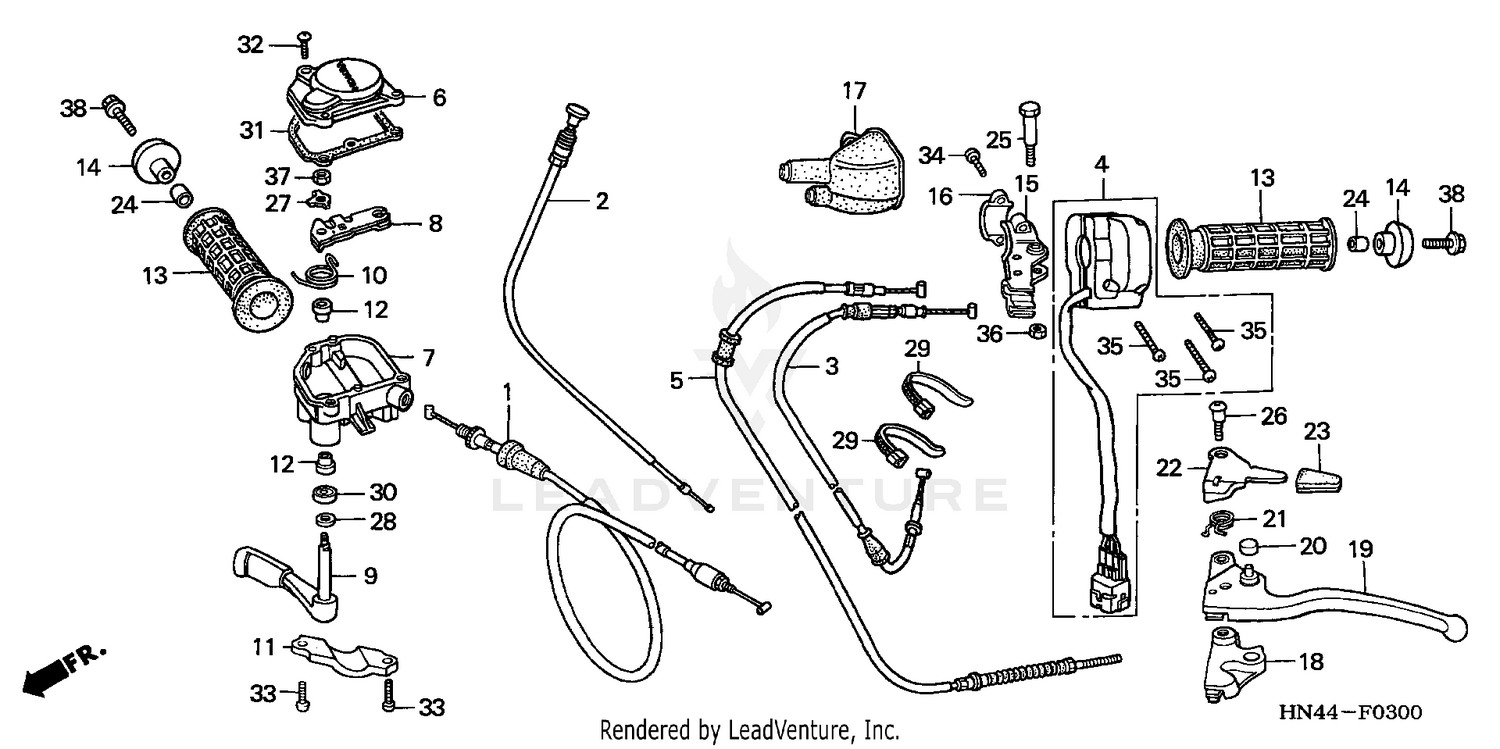

Handle Levers + Switches + Cables Diagram

Item MSRP Qty
#1 CABLE, THROTTLE
17910-HN5-670
 $58.11
Available to order.
Add to View Price
#2 CABLE, CHOKE
17950-HN5-671
 $13.89
Available to order.
Add to View Price
#3 CABLE, REVERSE ASSIST
22880-HN5-A80
 $23.07
Available to order.
Add to View Price
#4 SWITCH SET, L. HANDLE
35020-HN5-A10
 $144.89
Available to order.
Add to View Price
#5 CABLE, HAND BRAKE
43460-HN5-670
 $32.35
Available to order.
Add to View Price
#6 COVER, THROTTLE CASE
53141-HC3-000
 $32.44
Unavailable
#7 CASE, THROTTLE LEVER
53142-HC0-770
 $45.18
Available to order.
Add to View Price
#8 ARM, THROTTLE
53144-HA0-010
 $9.26
Available to order.
Add to View Price
#9 LEVER, THROTTLE
53145-HA0-305
Superseded by 53145-HA0-770
 $27.87
Available to order.
Add to View Price
#9 LEVER, THROTTLE
53145-HA0-770
 $27.87
Unavailable
#10 SPRING, THROTTLE RETURN
53146-HM8-000
 $3.73
Available to order.
Add to View Price
#11 HOLDER, THROTTLE CASE
53147-HM5-850
 $4.11
Available to order.
Add to View Price
#12 BUSH, THROTTLE PIVOT
53148-HA0-000
 $9.61
Available to order.
Add to View Price
#13 GRIP, HANDLE
53165-958-010
 $15.50
Available to order.
Add to View Price
#14 GUARD, HANDLE END
53167-958-680
 $7.70
Available to order.
Add to View Price
#15 BRACKET, BRAKE LEVER
53172-HN0-A11
 $64.94
Available to order.
Add to View Price
#16 HOLDER, LEVER BRACKET
53173-376-000
 $12.70
Available to order.
Add to View Price
#17 COVER, L. HANDLE LEVER
53177-HA0-680
 $13.58
Available to order.
Add to View Price
#18 ARM, REVERSE ASSIST
53179-HN0-A10
 $9.22
Available to order.
Add to View Price
#19 LEVER, RR. BRAKE
53180-HA8-770
 $34.05
Available to order.
Add to View Price
#20 CAP, REVERSE PIN
53187-VM6-000
 $4.67
Available to order.
Add to View Price
#21 SPRING, PARKING BRAKE LEVER
53191-961-010
 $4.17
Available to order.
Add to View Price
#22 LEVER, PARKING BRAKE LOCK
53192-HN0-A00
 $15.25
Available to order.
Add to View Price
#23 CAP, PARKING LEVER
53193-HA0-770
 $7.40
Available to order.
Add to View Price
#24 COLLAR, NUMBER BRACKET SETTING
84906-118-000
 $3.32
Available to order.
Add to View Price
#25 BOLT, HANDLE LEVER PIVOT
90114-HA0-770
 $2.81
Available to order.
Add to View Price
#25 BOLT, HANDLE LEVER PIVOT
90114-VM6-000
Superseded by 90114-HA0-770
 $2.81
Unavailable
#26 SCREW, PARKING LEVER PIVOT
90115-HA6-000
 $4.91
Available to order.
Add to View Price
#27 WASHER, LOCK (6MM)
90501-HA0-000
 $3.45
Available to order.
Add to View Price
#28 WASHER (9X20)
90504-HA0-000
 $2.49
Available to order.
Add to View Price
#29 BAND, WIRE (BLACK)
90652-KT1-771
 $5.39
Available to order.
Add to View Price
#30 DUST SEAL (9X16X5) (NOK)
91210-HA0-003
Superseded by 91210-HA0-004
 $4.71
Available to order.
Add to View Price
#30 DUST SEAL (9X16X5) (NOK)
91210-HA0-004
 $4.71
Unavailable
#31 GASKET, THROTTLE CASE
91532-HA0-020
 $7.40
Available to order.
Add to View Price
#32 SCREW, PAN (4X16)
93500-04016-0G
 $0.81
Available to order.
Add to View Price
#33 SCREW, PAN (5X14)
93500-05014-0G
 $4.41
Available to order.
Add to View Price
#34 SCREW, PAN (5X18)
93500-05018-0G
 $0.47
Available to order.
Add to View Price
#35 SCREW, PAN (5X28)
93500-05028-0G
 $0.74
Available to order.
Add to View Price
#36 NUT, HEX. (6MM)
94001-06070-0S
 $1.32
Available to order.
Add to View Price
#37 NUT, HEX. (6MM)
94002-06000-0S
 $1.32
Available to order.
Add to View Price
#38 BOLT, FLANGE (6X25)
95701-06025-07
 $1.79
Available to order.
Add to View Price
