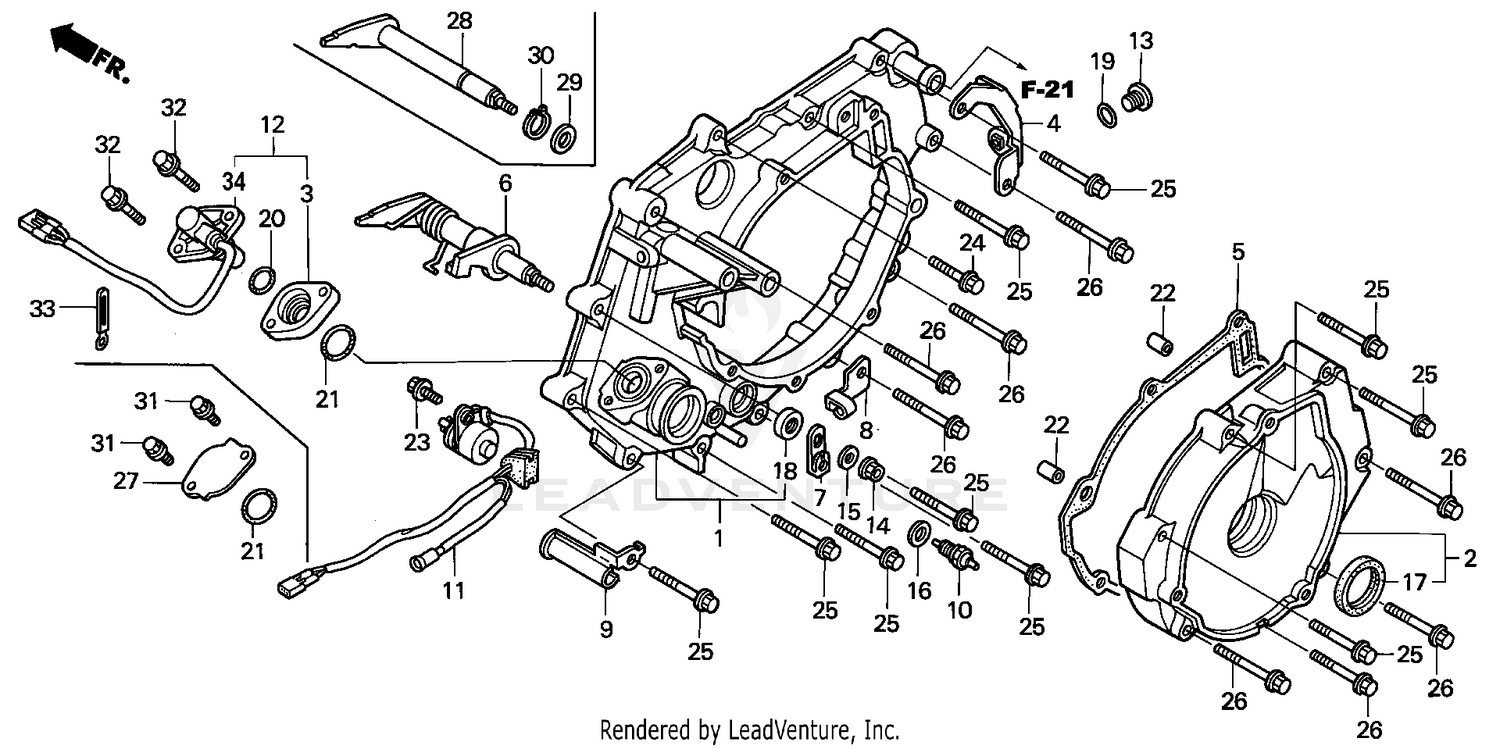

Rear Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR. CRANKCASE
11340-HN5-A11
Superseded by 11340-HN5-M10
|
$171.82 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, RR. CRANKCASE
11340-HN5-M10
|
$171.82 | ||
|
Unavailable |
|||
|
#2
COVER, ALTERNATOR
11350-HN5-670
|
$65.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
INSULATOR, SPEED SENSOR
11358-HN5-651
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, R. RR. ENGINE COVER
11370-HN5-670
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, ALTERNATOR COVER
11396-HN5-670
|
$13.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, REVERSE STOPPER
24860-HN5-A10
|
$42.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER, REVERSE STOPPER
24865-HN5-670
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, REVERSE STOPPER WIRE
24871-HN5-670
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, THERMO SENSOR WIRE
32855-HN5-670
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., NEUTRAL (TOYO)
35600-HA0-003
|
$21.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH ASSY., CHANGE
35759-HN5-A11
|
$150.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR SET, SPEED
37010-HN5-305
|
$106.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP (14MM)
90084-KY2-000
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U (6MM)
90301-473-003
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CRANK ARM
90545-044-000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (24X34X7)
91201-HN5-671
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (10X20X5) (ARAI)
91202-HC0-003
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (13.8X2.5)
91303-377-000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (18.3X2.4) (NOK)
91321-PF4-004
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (24.5X1.9)
91307-PY4-003
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (24.5X1.9)
91361-MT3-003
Superseded by 91307-PY4-003
|
$3.08 | ||
|
Unavailable |
|||
|
#22
PIN, DOWEL (8X14)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X45)
95701-06045-07
|
$2.17 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.79 | ||
|
Unavailable |
|||
|
#33
CLIP (2X60)
91410-679-000
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
