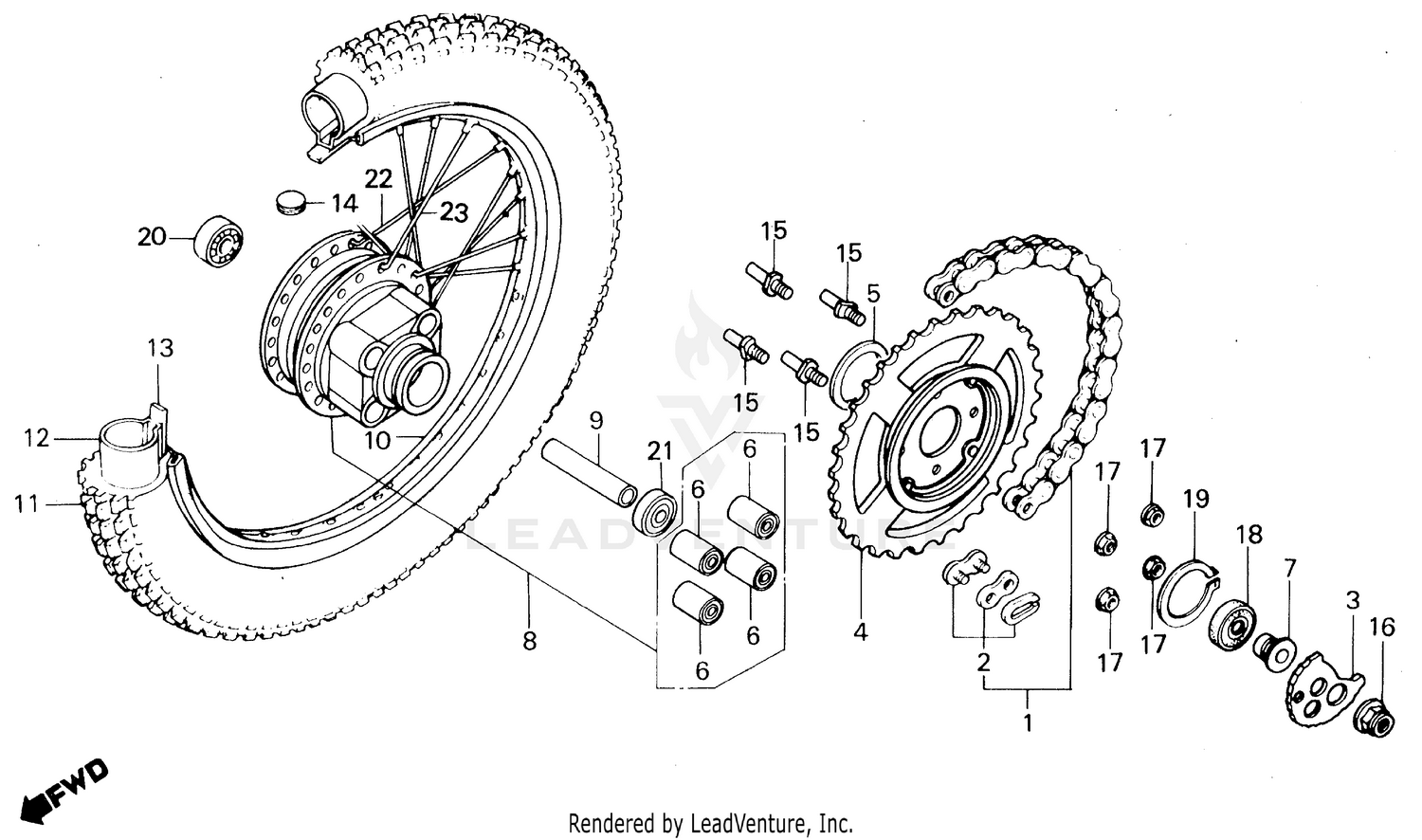

1986 Honda TLR200 REFLEX REAR WHEEL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE (102L) (DAIDO)
405W3-434-505
|
$110.12 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE (102L) (DAIDO)
40530-KJ2-003
Superseded by 405W3-434-505
|
$110.12 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE (102L) (DAIDO)
40530-KJ2-005
Superseded by 405W3-434-505
|
$110.12 | ||
|
Unavailable |
|||
|
#2
MASTER LINK (DAIDO)
40531-KA3-711
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK (TAKASAGO)
40531-KA3-712
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADJUSTER, CHAIN
40544-KJ2-000
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, FINAL DRIVEN (44T)
41200-KJ2-000
|
$83.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, DRIVEN SPROCKET (NOT AVAILABLE)
41212-KJ2-000
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, RR. WHEEL DAMPER
41241-307-010
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, RR. WHEEL SIDE
42311-KJ2-000
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
HUB, RR. WHEEL
42610-KJ2-000
|
$308.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. AXLE DISTANCE
42620-KJ2-000
|
$11.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIM, RR. WHEEL
42701-KJ2-670
|
$99.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR. (4.00-18) (4PR) (DUNLOP) (NOT AVAILABLE)
42711-KR8-004
|
$75.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, TIRE
42712-KS7-641
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE
42712-KT1-671
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE
42712-KV6-009
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE
42712-300-004
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE
42712-400-003
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#13
FLAP, TIRE (2.15-18) (DUNLOP)
42713-300-004
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, RIM HOLE (NOT AVAILABLE)
42717-310-000
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, DRIVEN SPROCKET FIXING
90128-382-670
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, DRIVEN SPROCKET FIXING
90128-446-770
Superseded by 90128-382-670
|
$7.73 | ||
|
Unavailable |
|||
|
#16
NUT, FLANGE (12MM)
90306-KF0-003
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE (10MM)
90308-382-670
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (21X37X5.5) (ARAI)
90755-GC4-003
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (21X37X5.5) (ARAI)
90755-GC4-005
Superseded by 90755-GC4-003
|
$5.98 | ||
|
Unavailable |
|||
|
#19
CIRCLIP (OUTER) (50MM)
94511-50000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6201U)
96140-62010-10
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6301U)
96140-63010-10
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPOKE SET B (9X192.5)
97336-52225-P0
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPOKE SET B (9X192)
97772-52224-P0
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
