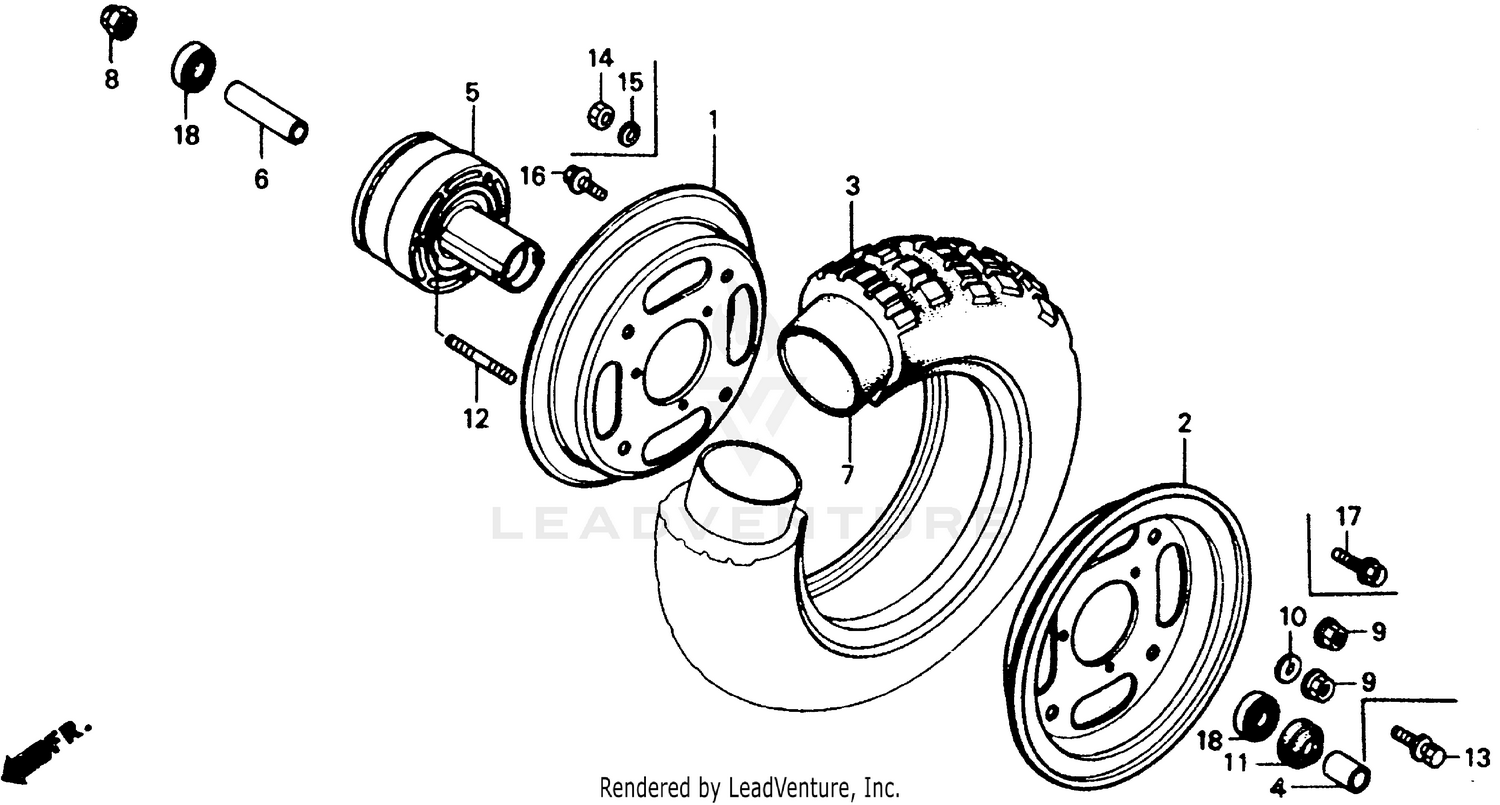

1987 Honda Z50RH FRONT WHEEL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RIM, R. *YR112MU*
42701-165-890ZB
Superseded by 42701-165-891ZB
|
$29.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM, L. *YR112MU*
42702-165-890ZB
Superseded by 42702-165-891ZB
|
$29.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIRE (3.50-8) (2PR) (BS)
42711-130-671
Superseded by 44711-120-671
|
$60.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIRE, WHEEL (3.50-8) (NITTO) (NOT AVAILABLE)
42711-130-672
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIRE (3.50-8) (2PR) (BS)
44711-120-671
|
$60.44 | ||
|
Unavailable |
|||
|
#3
TIRE, WHEEL (3.50-8) (2PR/35J) (INOUE)
42711-181-003
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. WHEEL SIDE
44311-045-670
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, FR. WHEEL *YR112MU* (SUPER GOLD METALLIC-U) (NOT AVAILABLE)
44601-181-830ZA
|
$132.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)
44620-165-890
|
$8.53 | ||
|
Unavailable |
|||
|
#7
TUBE, TIRE (3.50-8) (BS)
44712-120-003
|
$28.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, TIRE (3.50-8) (BS)
44712-120-006
Superseded by 44712-120-003
|
$28.56 | ||
|
Unavailable |
|||
|
#7
TUBE, TIRE (3.00-8) (IRC)
42712-GC3-004
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, TIRE (3.00-8) (IRC)
44712-045-670
Superseded by 42712-GC3-004
|
$31.45 | ||
|
Unavailable |
|||
|
#7
TUBE, TIRE (3.00-8) (IRC)
44712-120-154
Superseded by 42712-GC3-004
|
$31.45 | ||
|
Unavailable |
|||
|
#8
NUT, FLANGE (12MM) (FUSERASHI)
90306-KF0-003
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (21X35X7)
90752-035-003
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (8X16)
93482-08016-00
Superseded by 93412-08016-00
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (8X16)
93412-08016-00
|
$1.31 | ||
|
Unavailable |
|||
|
#14
NUT, HEX. (8MM)
94030-08000
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING (8MM)
94111-08000
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPLIT WHEEL
90194-567-010
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6201U)
96140-62010-10
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
