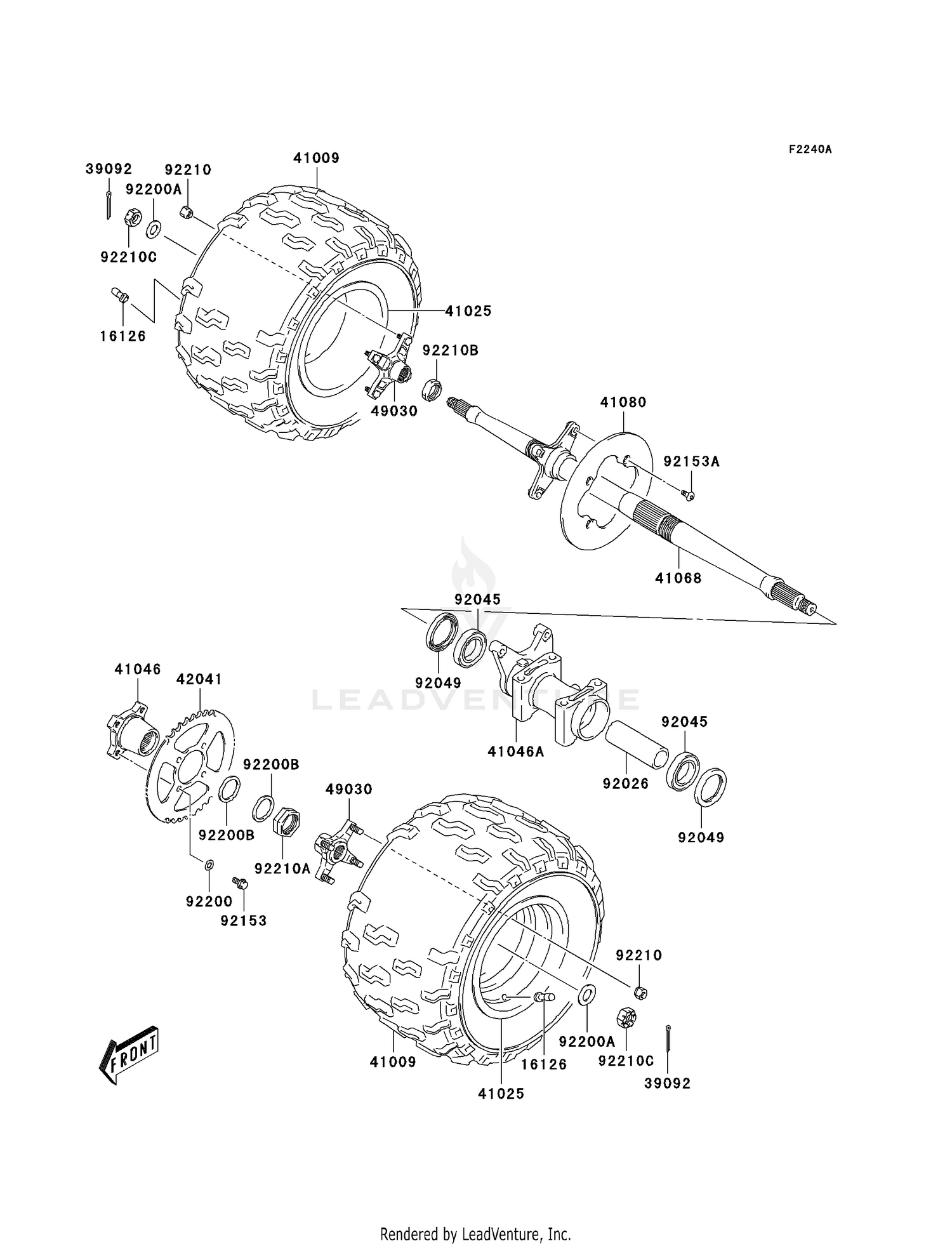

Rear Hub (a2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#16126
VALVE,WHEEL RIM,TR412
16126-S002
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#39092
PIN-HAIR,REAR HUB
39092-S010
Superseded by 39092-S019
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#41009
TIRE,RR
41009-S013
|
$199.74 | ||
|
Available to order. Add to View Price |
|||
|
#41025
RIM,REAR WHEEL
41025-S009
|
$396.62 | ||
|
Available to order. Add to View Price |
|||
|
#41046
HOUSING-BEARING
41046-S004
Superseded by 41046-S009
|
$141.04 | ||
|
Available to order. Add to View Price |
|||
|
#41046A
HOUSING-BEARING
41046-S006
Superseded by 41046-S007
|
$172.51 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-S015
|
$625.53 | ||
|
Available to order. Add to View Price |
|||
|
#41080
DISC,REAR BRAKE
41080-S006
|
$172.77 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB
42041-S006
Superseded by 42041-S011
|
$60.68 | ||
|
Available to order. Add to View Price |
|||
|
#49030
HUB,RR,F.GRAY
49030-S004-563
|
$173.00 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,REAR AXLE
92026-S106
|
$48.34 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,REAR AXL
92045-S049
|
$44.33 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,AXLE
92049-S052
|
$21.54 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,REAR SPROCKET
92153-S277
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FRONT BRAKE DISC
92153-S283
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,REAR SPROCKET
92200-S139
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,REAR HUB
92200-S141
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,REAR AXLE
92200-S143
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,WHEEL
92210-S100
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,REAR AXLE
92210-S109
|
$43.85 | ||
|
Available to order. Add to View Price |
|||
|
#92210B
NUT,REAR AXLE
92210-S110
|
$21.78 | ||
|
Available to order. Add to View Price |
|||
|
#92210C
NUT,REAR HUB
92210-S113
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
