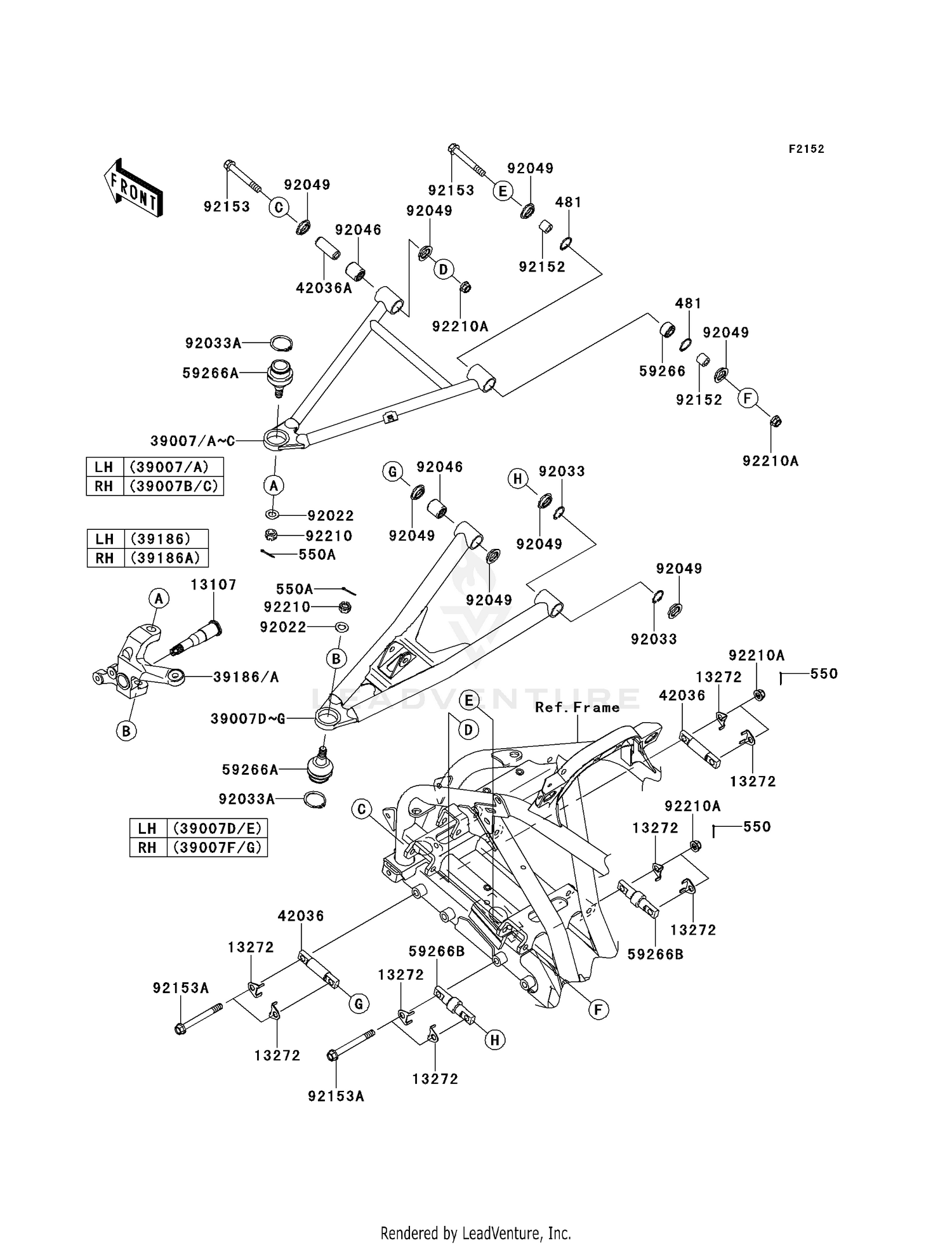

Front Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#481
CIRCLIP-TYPE-C,24MM
481J2400
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.5X20
550AA2520
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#550A
PIN-COTTER,3.0X25
550AA3025
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT,FRONT AXLE
13107-0159
|
$41.71 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE
13272-0081
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#39007
ARM-SUSP,FR,UPP,LH,SI
39007-0148-16H
|
$142.15 | ||
|
Available to order. Add to View Price |
|||
|
#39007B
ARM-SUSP,FR,UPP,RH,SI
39007-0149-16H
|
$142.15 | ||
|
Available to order. Add to View Price |
|||
|
#39007D
ARM-SUSP,FR,LWR,LH,SI
39007-0150-16H
|
$169.43 | ||
|
Available to order. Add to View Price |
|||
|
#39007F
ARM-SUSP,FR,LWR,RH,SI
39007-0151-16H
|
$169.43 | ||
|
Available to order. Add to View Price |
|||
|
#39186
KNUCKLE,LH
39186-0076
Superseded by 39186-0078
|
$198.62 | ||
|
Available to order. Add to View Price |
|||
|
#39186A
KNUCKLE,RH
39186-0077
Superseded by 39186-0079
|
$198.62 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE
42036-0037
|
$56.18 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE
42036-1376
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#59266
JOINT-BALL
59266-0013
|
$63.04 | ||
|
Available to order. Add to View Price |
|||
|
#59266A
JOINT-BALL
59266-0014
|
$69.61 | ||
|
Available to order. Add to View Price |
|||
|
#59266B
JOINT-BALL
59266-0015
|
$104.49 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,12.3X22X1.6
92022-1065
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-0046
|
$2.63 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,C-TYPE,32MM
92033-1262
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE
92046-1046
|
$26.89 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,MHA17245.7F
92049-1223
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,10X17X14.5
92152-1455
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,10X70
92153-1606
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,10X95
92153-1859
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,CASTLE,12MM
92210-0395
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,LOCK,FLANGED,10MM
92210-1080
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
