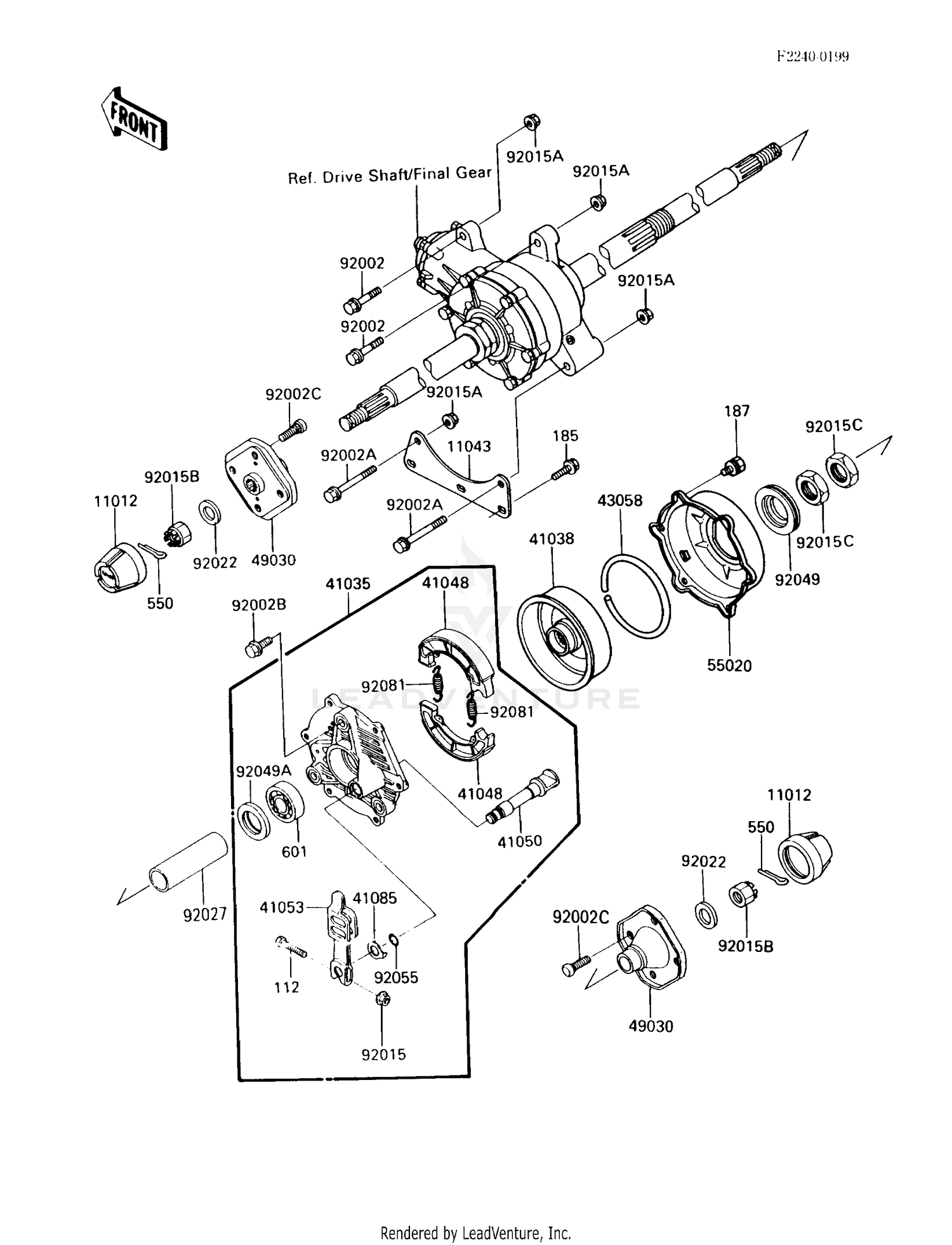

Rear Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,WHEEL
11012-1519
Superseded by 11012-1969
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#11043
BRACKET
11043-1550
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,RR
41035-1246
|
$528.96 | ||
|
Available to order. Add to View Price |
|||
|
#41038
DRUM,REAR BRAKE
41038-1177
|
$210.52 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1058
Superseded by 41048-1069
|
$26.34 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM-BRAKE
41050-1062
|
$61.26 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM
41053-1056
|
$33.42 | ||
|
Available to order. Add to View Price |
|||
|
#41085
INDICATOR
41085-1053
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#43058
RING,REAR BRAKE DRUM
43058-1064
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#49030
HUB,RR
49030-1076
|
$122.25 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,RR BRAKE DRUM
55020-1250
|
$24.76 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X38
92002-1313
Superseded by 92001-1293
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,10X70
92002-1315
Superseded by 92001-1618
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,FLANGED,10X20
92002-1368
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT,10MM
92002-1459
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
41072-007
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,10MM
92015-1366
Superseded by 92015-1428
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,CASTLE,18MM
92015-1441
Superseded by 42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,LOCK,32MM
92015-1493
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,18.5X52X4.5
92022-1794
Superseded by 92200-1474
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,RR HUB,L=124.5
92027-1758
|
$51.48 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,RR BRAKE DRU
92049-1194
|
$19.21 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,REAR HUB
92049-4001
|
$17.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,ID=16.8
92055-1258
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING-BRAKE SHOE
42020-004
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#112
BOLT-UPSET
112H0640
Superseded by 112BA0640
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#185
BOLT-UPSET-WSP-SMALL
185H0818
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#187
BOLT-UPSET-WSP
187D0614
Superseded by 187AA0614
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X30
550D4030
Superseded by 550AA4030
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL
601A6007UU
|
$40.48 | ||
|
Available to order. Add to View Price |
|||
