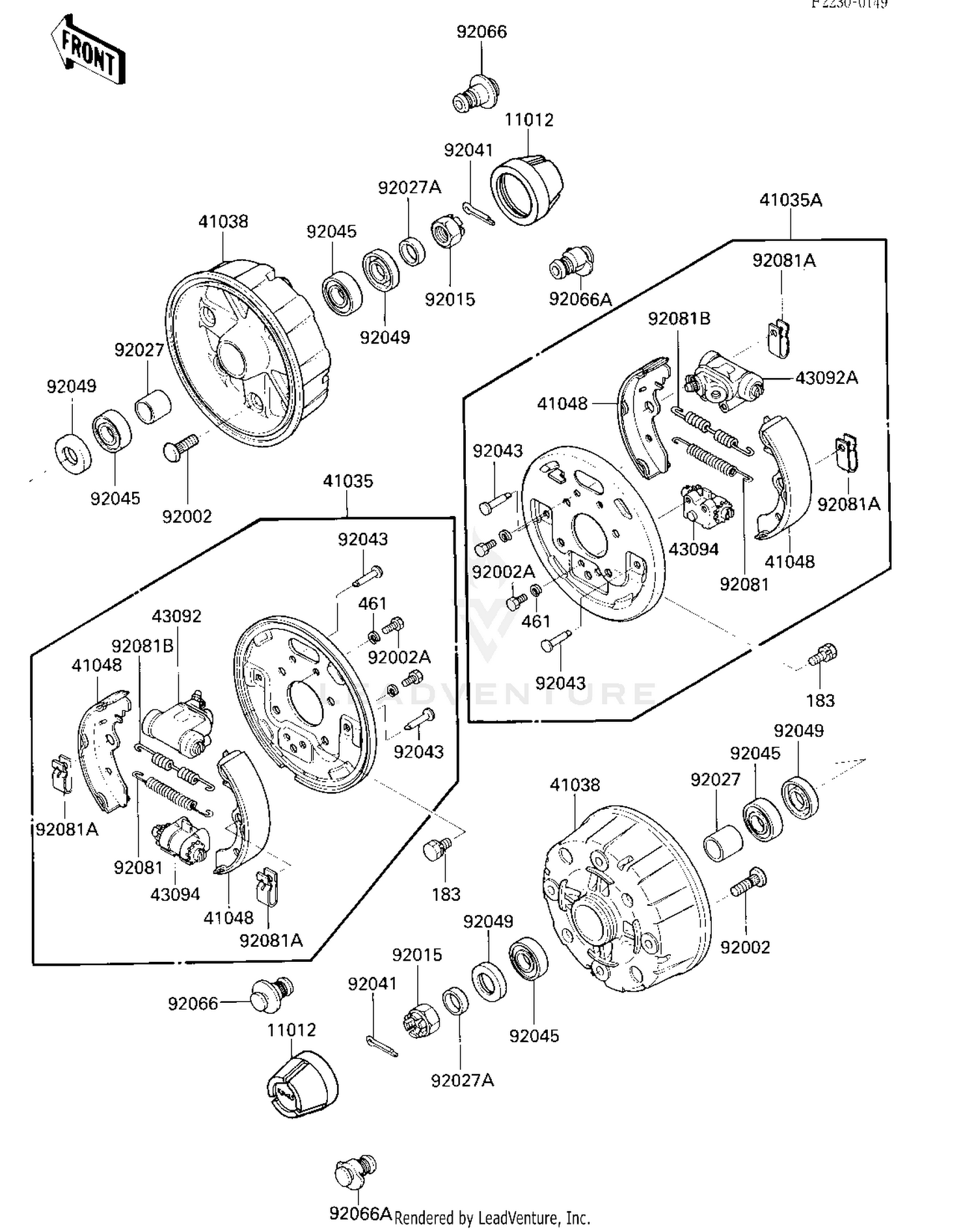

Front Hub/brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,WHEEL
11012-1519
Superseded by 11012-1969
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,FR,L
41035-1202
Superseded by 41035-1310
|
$489.41 | ||
|
Available to order. Add to View Price |
|||
|
#41035A
PANEL-ASSY-BRAKE,FR,R
41035-1203
Superseded by 41035-1311
|
$292.90 | ||
|
Available to order. Add to View Price |
|||
|
#41038
DRUM,FR
41038-1164
|
$167.58 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1061
Superseded by 41048-1089
|
$24.79 | ||
|
Available to order. Add to View Price |
|||
|
#43092
CYLINDER,BRAKE,FR,LH
43092-1051
|
$133.37 | ||
|
Available to order. Add to View Price |
|||
|
#43092A
CYLINDER,BRAKE,FR,RH
43092-1052
|
$133.37 | ||
|
Available to order. Add to View Price |
|||
|
#43094
ADJUSTER,BRAKE
43094-1051
|
$91.43 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,10X30
92002-1388
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
92002-1586
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,20X25X25
92027-1898
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,20X25X9
92027-1899
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#92041
COTTER,4.0X35
92041-1053
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-1295
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL
92045-1148
|
$32.40 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TC25427
92049-1224
|
$18.06 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,SHOE CHECK
92066-1269
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,SHOE ADJUST
92066-1270
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,SHOE
92081-1903
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,SHOE CLAMP
92081-1904
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,SHOE
92081-1970
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
183J0814
Superseded by 183BB0814
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
