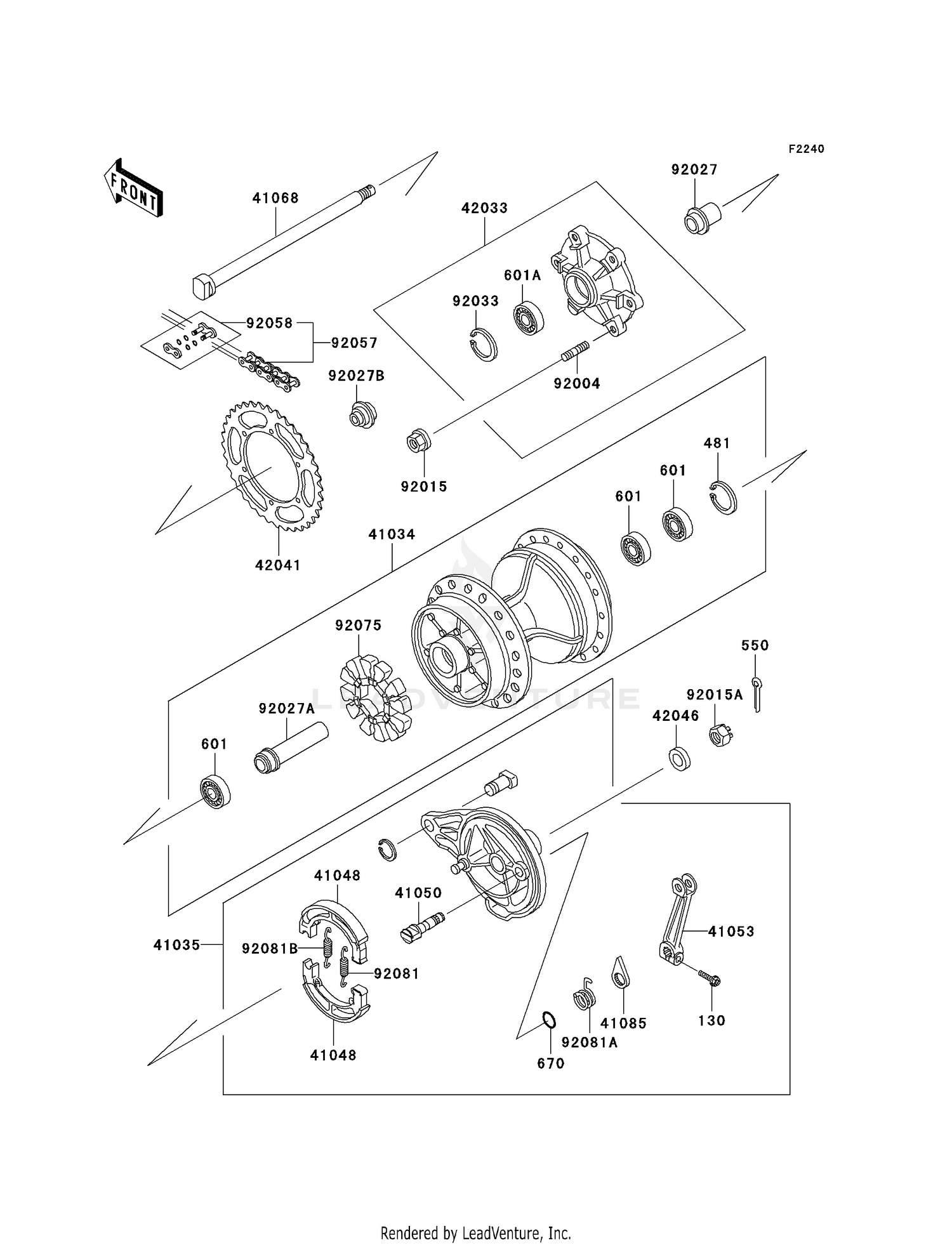

Rear Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X25
130G0625
Superseded by 130BA0625
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,35MM
481J3500
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6003UC3
601B6003UG
Superseded by 601B6003U
|
$21.60 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6004UG
601B6004UG
|
$14.68 | ||
|
Unavailable |
|||
|
#670
O RING,15MM
670B2015
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#41034
DRUM-ASSY,REAR BRAKE
41034-1113
|
$526.47 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,RR
41035-1289
|
$489.80 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1084
|
$28.71 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM-BRAKE
41050-1058
|
$43.07 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM
41053-1061
|
$82.79 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1178
|
$84.38 | ||
|
Available to order. Add to View Price |
|||
|
#41085
INDICATOR,FR BRK PNL
41085-005
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,REAR HU
42033-1111
|
$239.01 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,44T
42041-1191
|
$71.15 | ||
|
Available to order. Add to View Price |
|||
|
#42046
WASHER,17.3X32X3.2
42046-009
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD
92004-1149
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1432
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT
92015-1947
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,REAR HUB COUPL
92027-1770
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,REAR BRAKE DRU
92027-1823
|
$35.97 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,REAR HUB COUPL
92027-1826
|
$35.60 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK520LV-O
92057-0015
|
$182.98 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-1100
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SHOCK,RR HUB
92075-1068
|
$46.01 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
92081-1550
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,BRAKE CAM LEVE
92081-1615
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,BRAKE SHOE
92081-1766
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
