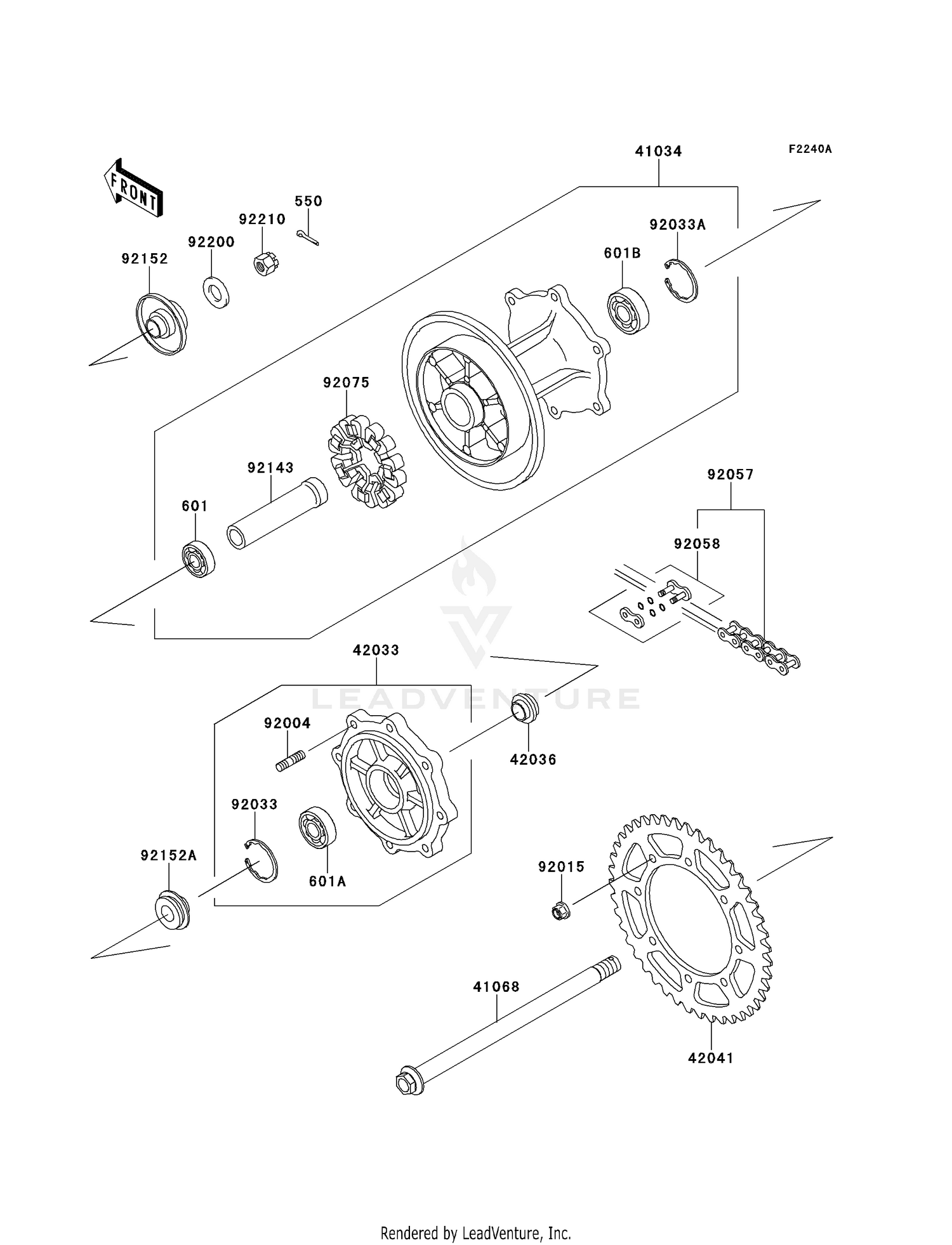

Rear Hub (ecf-ees) Diagram

Item MSRP Qty
#550 PIN-COTTER,4.0X35
550AA4035
 $2.11
Available to order.
Add to View Price
#601 BEARING-BALL,#6003G
601B6003G
 $10.58
Available to order.
Add to View Price
#601A BEARING-BALL,#6004UG
601B6004UG
 $14.68
Unavailable
#601B BEARING-BALL,#6204UG
601B6204UG
 $14.80
Available to order.
Add to View Price
#41034 DRUM-ASSY,REAR BRAKE,
41034-0041-21
 $588.41
Available to order.
Add to View Price
#41068 AXLE,RR
41068-0056
 $83.23
Available to order.
Add to View Price
#42033 COUPLING-ASSY,REAR HU
42033-1112
 $215.05
Available to order.
Add to View Price
#42036 SLEEVE
42036-0074
 $23.43
Available to order.
Add to View Price
#42041 SPROCKET-HUB,43T
42041-1260
 $73.07
Available to order.
Add to View Price
#92004 STUD,8X16
92004-1150
 $5.29
Available to order.
Add to View Price
#92015 NUT,8MM
92015-1432
 $6.36
Available to order.
Add to View Price
#92033 RING-SNAP,42MM
92033-1041
 $5.96
Available to order.
Add to View Price
#92033A RING-SNAP,47MM
92033-1042
 $4.09
Available to order.
Add to View Price
#92057 CHAIN,DRIVE,EK520SR-O2X106L
92057-0019
 $214.82
Available to order.
Add to View Price
#92058 JOINT-CHAIN,DRIVE
92058-1102
 $14.52
Available to order.
Add to View Price
#92075 DAMPER,SHOCK,RR HUB
92075-1068
 $46.01
Available to order.
Add to View Price
#92143 COLLAR,REAR BRAKE DRUM,L=113
92143-1060
 $34.38
Available to order.
Add to View Price
#92152 COLLAR,L=30MM
92152-0851
 $21.78
Available to order.
Add to View Price
#92152A COLLAR,L=17MM
92152-0852
 $24.77
Available to order.
Add to View Price
#92200 WASHER,17.3X32X3.2
92200-0563
 $3.74
Available to order.
Add to View Price
#92210 NUT,CASTLE,16MM
92210-1171
 $11.24
Available to order.
Add to View Price
