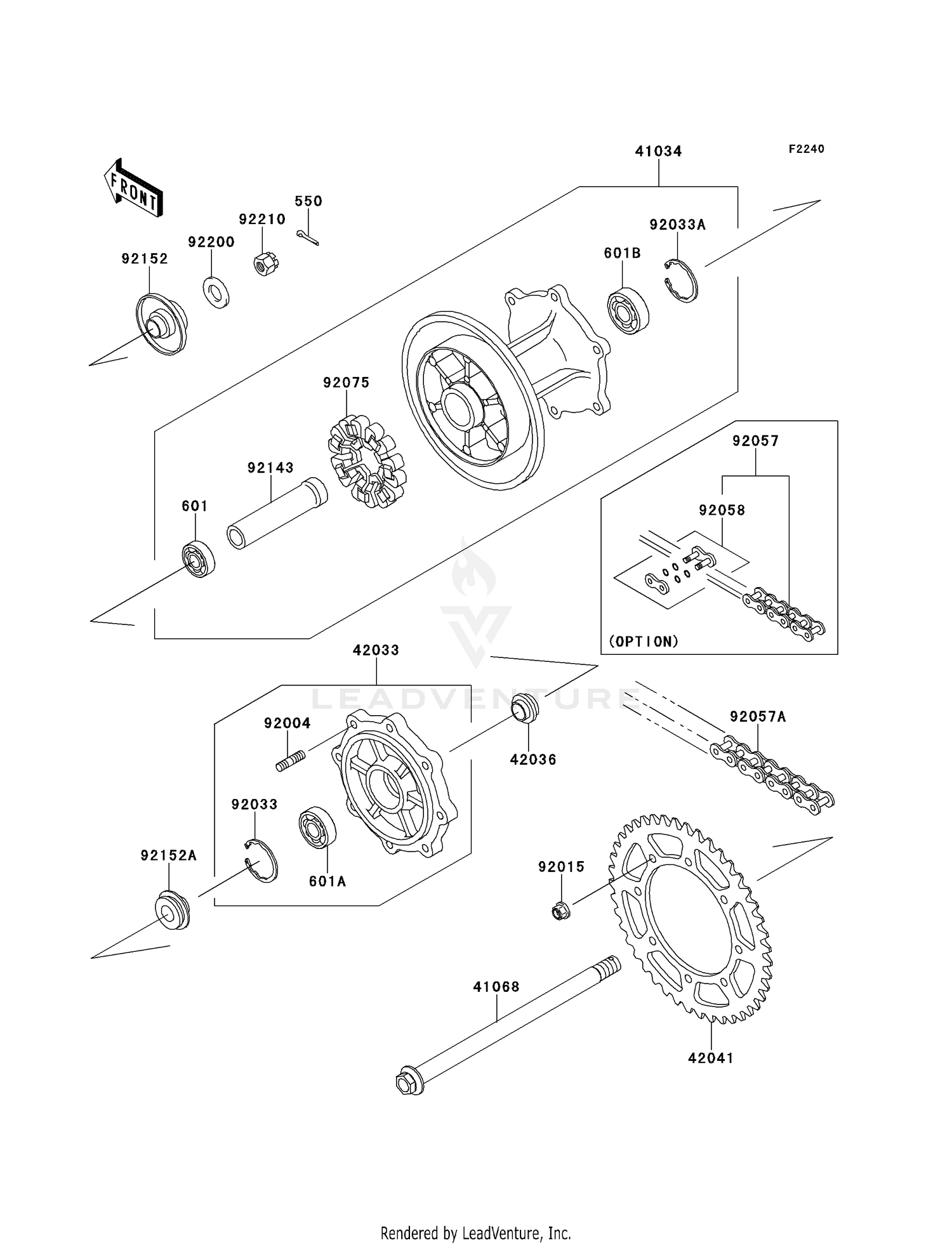

Rear Hub (ebf) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#550
PIN-COTTER,4.0X35
550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6003G
601B6003G
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6004UG
601B6004UG
|
$14.68 | ||
|
Unavailable |
|||
|
#601B
BEARING-BALL,#6204UG
601B6204UG
|
$14.80 | ||
|
Available to order. Add to View Price |
|||
|
#41034
DRUM-ASSY,REAR BRAKE,
41034-0041-21
|
$588.41 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-0056
|
$83.23 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,REAR HU
42033-1112
|
$215.05 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE
42036-0074
|
$23.43 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,43T
42041-0090
|
$73.21 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,8X16
92004-1150
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1432
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK520SR-O2X106L
92057-0019
|
$214.82 | ||
|
Available to order. Add to View Price |
|||
|
#92057A
CHAIN,DRIVE,EK520SR-O2X106L
92057-0207
Superseded by 92057-0019
|
$214.82 | ||
|
Unavailable |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-1102
|
$14.52 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SHOCK,RR HUB
92075-1068
|
$46.01 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,REAR BRAKE DRUM,L=113
92143-1060
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,L=30MM
92152-0851
|
$21.78 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,L=17MM
92152-0852
|
$24.77 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,17.3X32X3.2
92200-0563
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,CASTLE,16MM
92210-1171
|
$11.24 | ||
|
Available to order. Add to View Price |
|||
