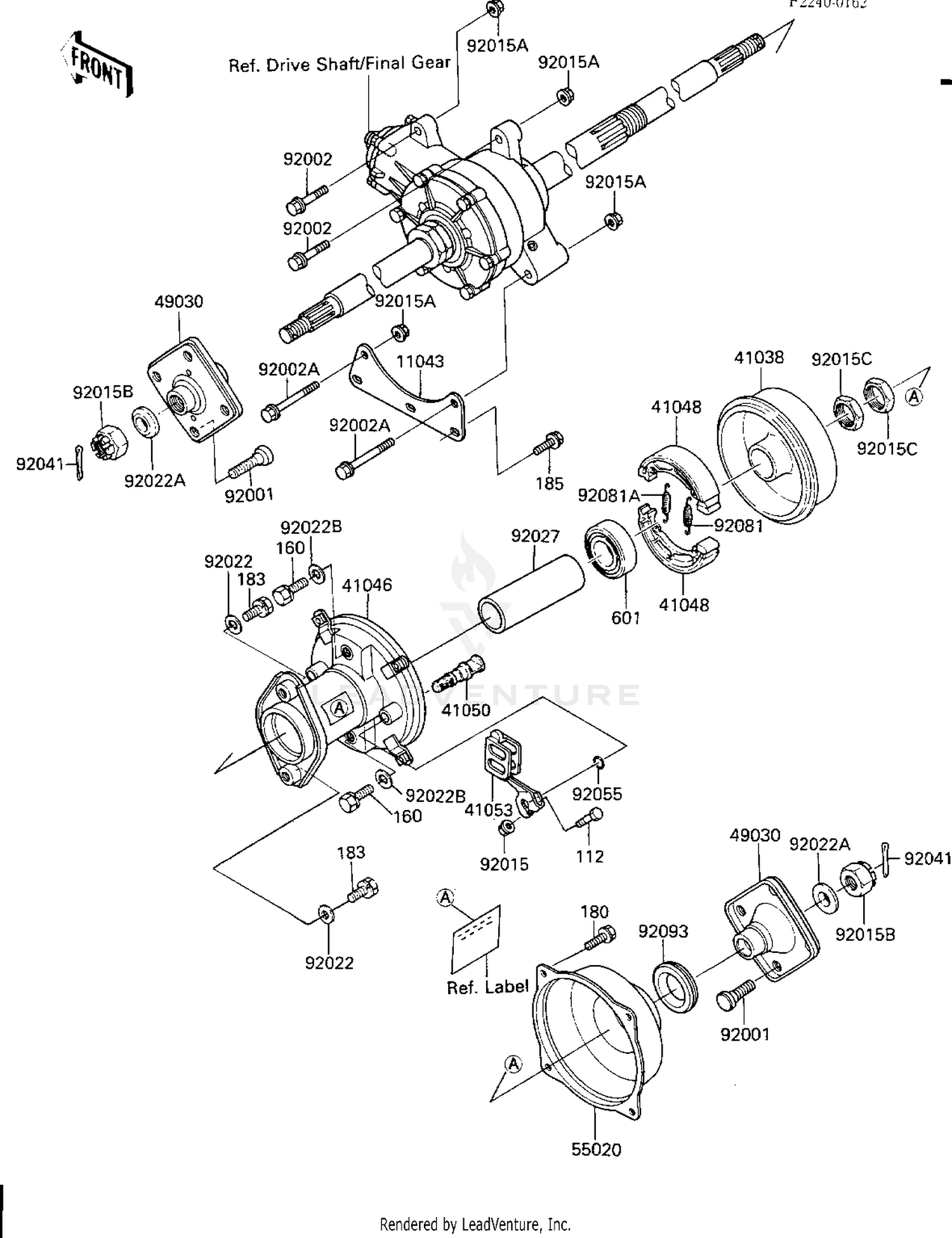

Rear Hub/brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11043
BRACKET
11043-1550
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#41038
DRUM
41038-4010
|
$296.84 | ||
|
Available to order. Add to View Price |
|||
|
#41046
HOUSING-BEARING
41046-1056
|
$121.30 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1025
Superseded by 41048-1076
|
$36.61 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM SHAFT,REAR BRAKE
42026-026
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM
41053-4004
|
$37.95 | ||
|
Available to order. Add to View Price |
|||
|
#49030
HUB,RR,G.SILVER
49030-4022-F2
|
$36.93 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,RR-BRAKE-DRUM
55020-4036
|
$16.34 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,LUG
92001-4006
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X38
92002-1313
Superseded by 92001-1293
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,10X70
92002-1315
Superseded by 92001-1618
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,10MM
92015-1428
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,LOCK,32MM
92015-1493
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,9X24X3.2
92022-1295
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,18.3X34X4.5
92022-1658
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,12.5X28X4.5
92022-4037
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,RR HUB,L=124.5
92027-1758
|
$51.48 | ||
|
Available to order. Add to View Price |
|||
|
#92041
COTTER,4.0X35
92041-1053
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,11MM
92055-004
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
92081-1550
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,BRAKE SHOE
92081-1766
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-4008
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#112
BOLT-UPSET
112H0640
Superseded by 112BA0640
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#160
BOLT-FINE-WS
160H1225
|
$7.41 | ||
|
Available to order. Add to View Price |
|||
|
#180
BOLT-UPSET-WS
180D0612
Superseded by 180AA0612
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#183
UNAVAILABLE IN PRICE BOOK
T83H0814
|
|||
|
Unavailable |
|||
|
#185
BOLT-UPSET-WSP-SMALL
185H0818
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL
601A6007UU
|
$40.48 | ||
|
Available to order. Add to View Price |
|||
