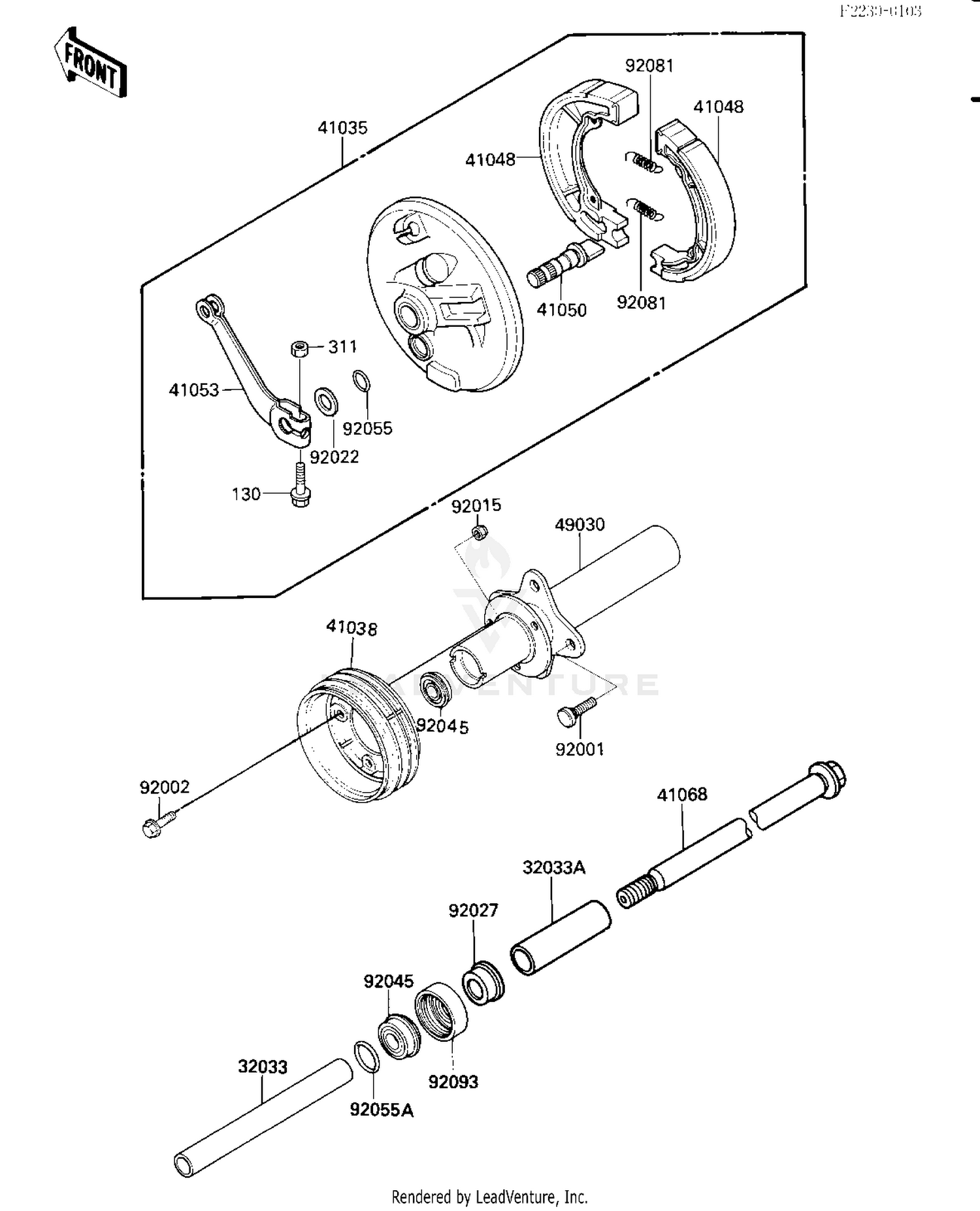

Front Hub/brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#32033
PIPE,FR-HUB
32033-1321
|
$9.00 | ||
|
Available to order. Add to View Price |
|||
|
#32033A
PIPE,FRONT HUB,L=70
32033-1325
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,FR
41035-1171
|
$203.10 | ||
|
Available to order. Add to View Price |
|||
|
#41038
DRUM,FR
41038-1119
|
$105.44 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1085
|
$21.73 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM-BRAKE
41050-1056
|
$27.80 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM
41053-1055
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,FR,L=345
41068-1173
|
$62.63 | ||
|
Available to order. Add to View Price |
|||
|
#49030
HUB-FR,G.SILVER
49030-1056-F2
|
$120.12 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,LUG
92001-4006
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X22
92002-1312
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,10MM
92015-1429
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-257
|
$12.83 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-1783
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING BALL HUB-ASSY
92045-4005
|
$25.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,11MM
92055-004
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
0 RING
92055-4001
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
92081-1766
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FR HUB
92093-1157
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X30
130G0630
Superseded by 130BA0630
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
