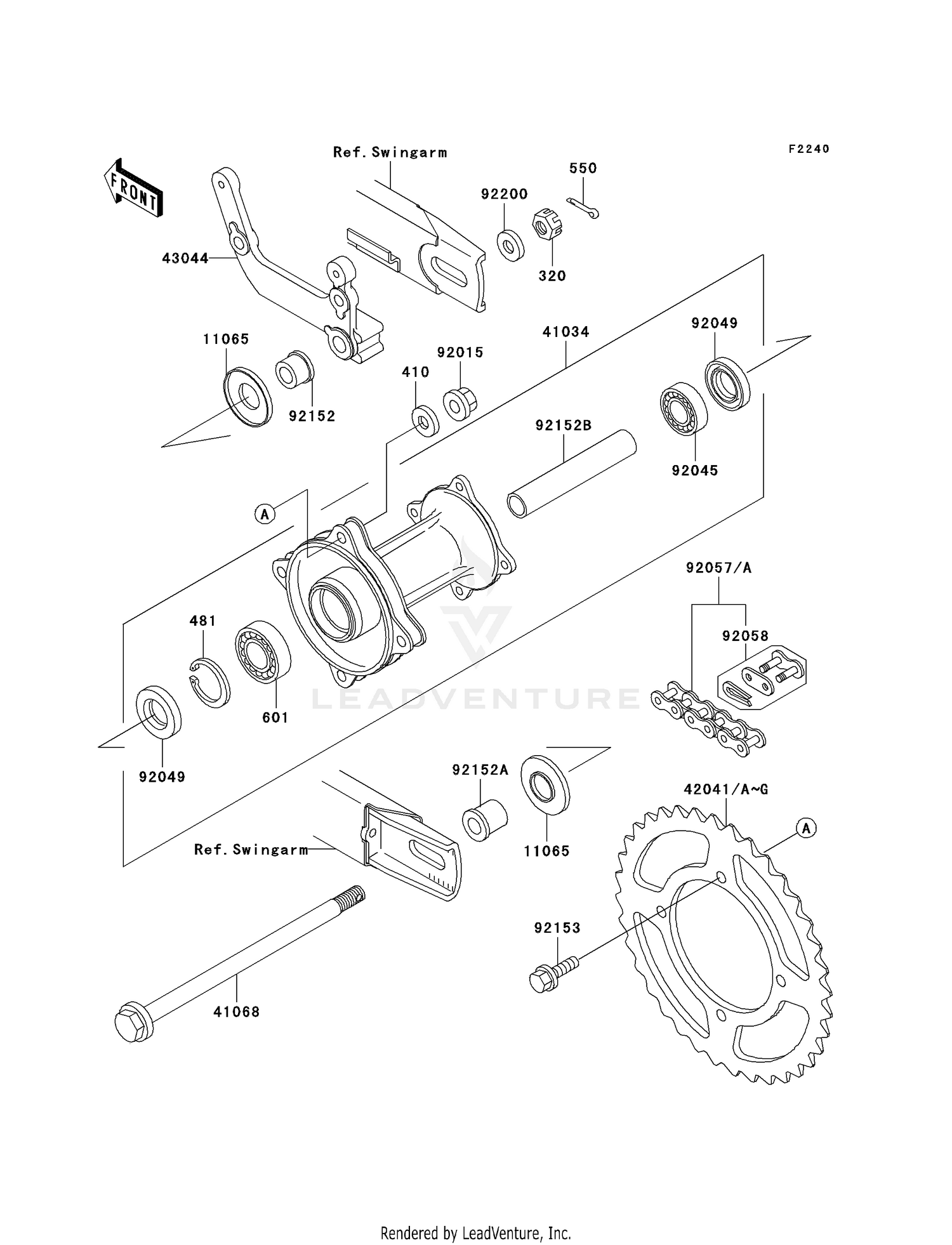

Rear Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#320
NUT,12MM
320G1200
Superseded by 92210-7501
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,37MM
481J3700
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,3.0X25
550D3025
Superseded by 550AA3025
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6301UUC3
601B6301UU
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-1137
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#41034
DRUM-ASSY,REAR BRAKE
41034-1303
|
$261.09 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1419
|
$28.71 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,44T
42041-1525
|
$70.22 | ||
|
Available to order. Add to View Price |
|||
|
#42041A
SPROCKET-HUB,45T
42041-1526
|
$62.93 | ||
|
Available to order. Add to View Price |
|||
|
#42041B
SPROCKET-HUB,46T
42041-1527
|
$62.93 | ||
|
Available to order. Add to View Price |
|||
|
#42041E
SPROCKET-HUB,47T
42041-1528
|
$62.93 | ||
|
Available to order. Add to View Price |
|||
|
#42041F
SPROCKET-HUB,48T
42041-1529
|
$62.93 | ||
|
Available to order. Add to View Price |
|||
|
#43044
HOLDER-COMP-CALIPER,RR
43044-1127
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1432
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,TMB201LLUC3/2A
92045-1062
|
$25.15 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TC20376.5
92049-1257
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,DID420MBK
92057-1479
|
$41.25 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-1073
|
$11.66 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,AXLE,L=15.5
92152-1196
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,RR AXLE,L=22
92152-1198
|
$10.54 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR,RR BRAKE DRUM,L=89
92152-1199
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,8X28
92153-1101
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,12.3X23X2.3
92200-1004
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
