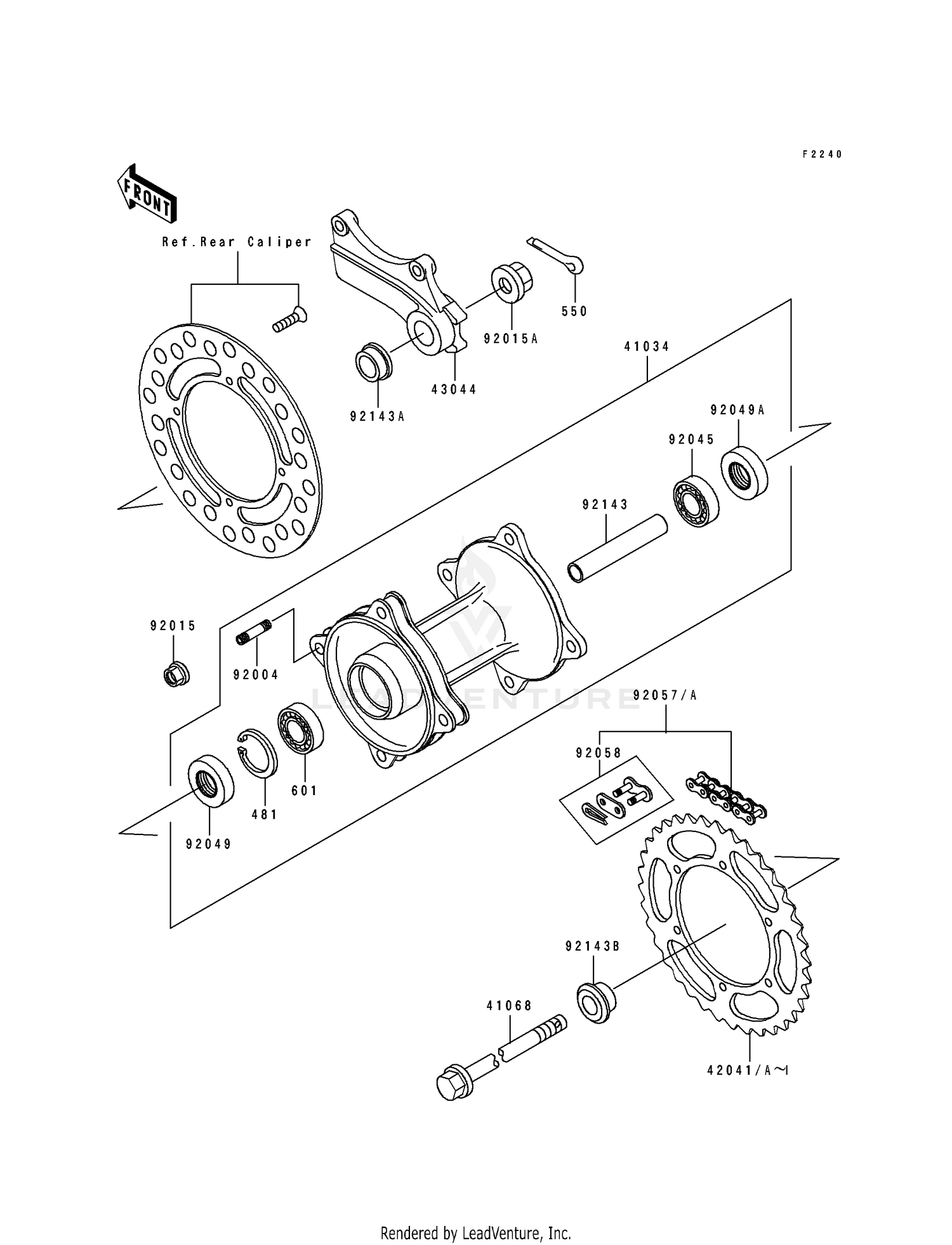

Rear Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41034
DRUM-ASSY,REAR BRAKE
41034-1194
|
$307.05 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1302
|
$37.94 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,49T
42041-1207
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#42041B
SPROCKET-HUB
42041-1226
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#42041C
SPROCKET-HUB,48T
42041-1227
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#42041D
SPROCKET-HUB,50T
42041-1228
|
$58.36 | ||
|
Available to order. Add to View Price |
|||
|
#42041E
SPROCKET-HUB,51T
42041-1229
|
$66.41 | ||
|
Available to order. Add to View Price |
|||
|
#43044
HOLDER-COMP-CALIPER
43044-1073
|
$116.59 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,8X16
92004-1183
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1432
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,FLANGED,12MM
92015-1433
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,TMB201LLUC3/2A
92045-1062
|
$25.15 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,DD20377
92049-1096
|
$16.34 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,DC17323.5
92049-1290
|
$9.41 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,DID420DSX
92057-1314
|
$101.36 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-1066
Superseded by 92058-1086
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,12X17.3X107.5
92143-1282
|
$21.26 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,REAR AXLE,L=12
92143-1284
|
$25.25 | ||
|
Available to order. Add to View Price |
|||
|
#92143B
COLLAR,REAR AXLE,L=14
92143-1286
|
$23.78 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,37MM
481J3700
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.5X20
550D2520
Superseded by 550AA2520
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6301UUC3
601B6301UU
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
