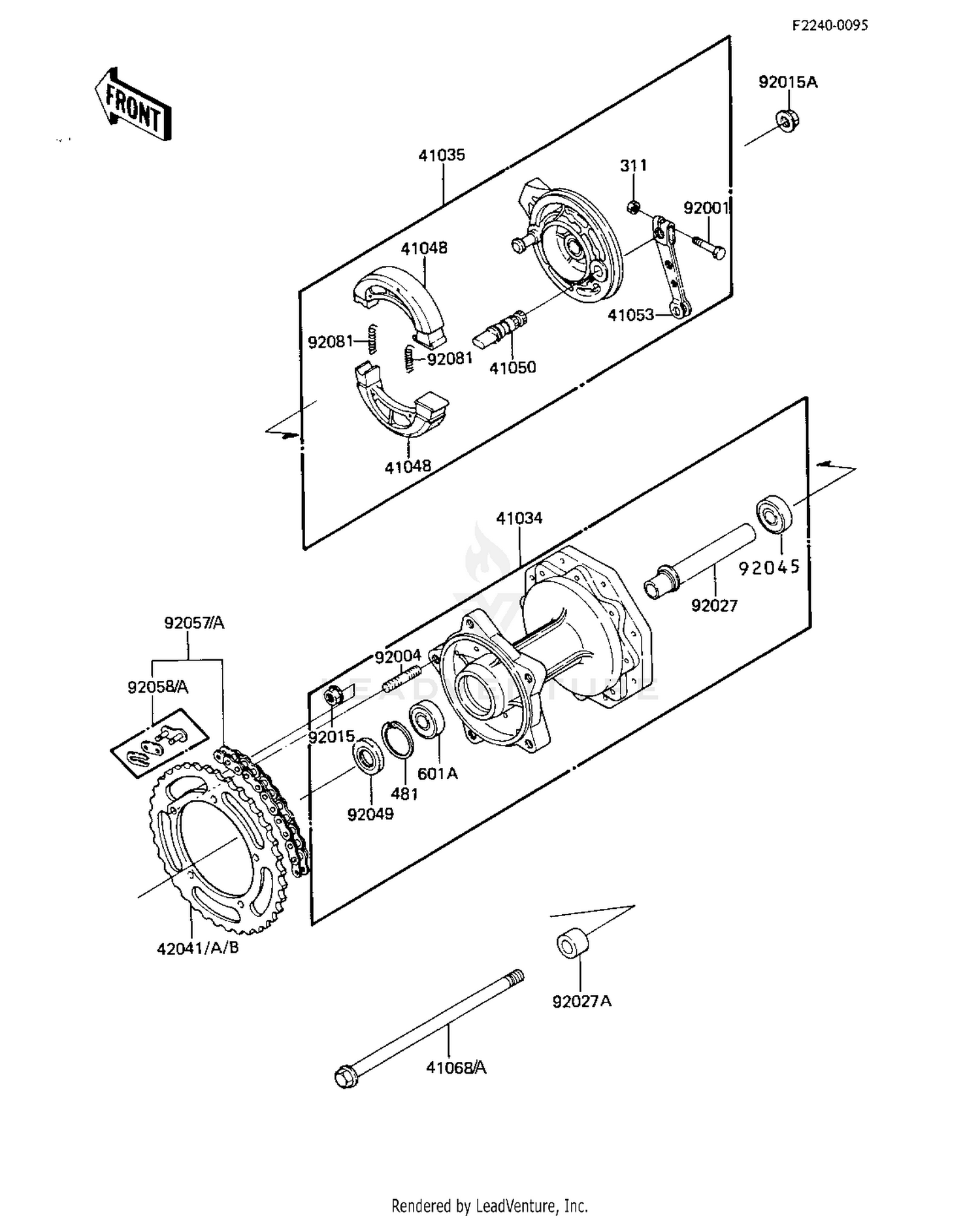

Rear Hub/brake/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41034
DRUM-ASSY,REAR BRAKE
41034-1068
Superseded by 41034-1169
|
$373.78 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,RR
41035-1099
|
$253.81 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1083
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM-BRAKE
41050-1031
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM,RR
41053-1058
|
$52.52 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,REAR,12X211
41068-1036
|
$52.48 | ||
|
Available to order. Add to View Price |
|||
|
#41068A
AXLE,L=206
41068-1167
|
$36.91 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,44T
42041-1114
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#42041A
SPROCKET-HUB,43T
42041-1116
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#42041B
SPROCKET-HUB,45T
42041-1117
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#42041C
SPROCKET-HUB,49T
42041-1121
|
$72.17 | ||
|
Available to order. Add to View Price |
|||
|
#42041D
SPROCKET-HUB,48T
42041-1122
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#42041E
SPROCKET-HUB,50T
42041-1123
|
$72.17 | ||
|
Available to order. Add to View Price |
|||
|
#42041F
SPROCKET-HUB,47T
42041-1129
|
$72.17 | ||
|
Available to order. Add to View Price |
|||
|
#42041G
SPROCKET-HUB,46T
42041-1178
|
$72.17 | ||
|
Available to order. Add to View Price |
|||
|
#42041H
SPROCKET-HUB,51T
42041-1181
|
$72.17 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,5X25
92001-1695
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,8X14
92004-1053
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,12MM
92015-1156
Superseded by 92015-1426
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,REAR DRUM,L=11
92027-1471
|
$21.98 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,REAR AXLE,L=14
92027-1473
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,TMB201LLUC3/2A
92045-1062
|
$25.15 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,DD20377
92049-1096
|
$16.34 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN.EK420SH-G 104L
92057-1114
|
$79.98 | ||
|
Available to order. Add to View Price |
|||
|
#92057A
CHAIN,DRIVE
92057-1155
Superseded by 92057-1436
|
$48.75 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT,CHAIN
92058-1016
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#92058A
JOINT-CHAIN
92058-1053
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
92081-1564
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311G0500
Superseded by 311BA0500
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,37MM
481J3700
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6301UUC3
601B6301UU
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
