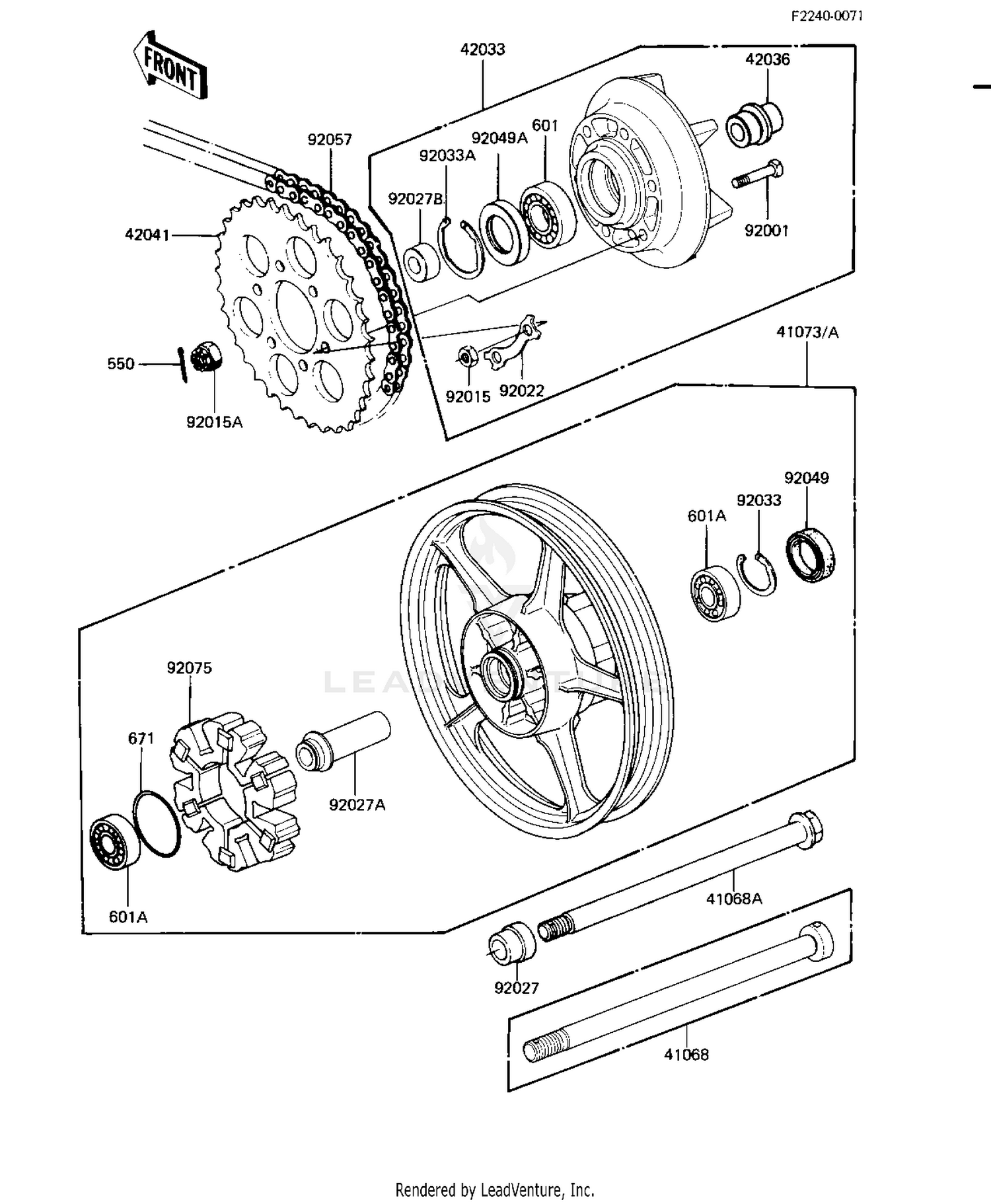

1983 Kawasaki KZ550H2 GPZ REAR WHEEL/HUB/CHAIN OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41068
AXLE,RR
41068-1086
|
$66.03 | ||
|
Available to order. Add to View Price |
|||
|
#41068A
AXLE,RR
41068-1086
|
$66.03 | ||
|
Unavailable |
|||
|
#41073
WHEEL-ASSY,RR,F.RED
41073-1137-B1
|
$632.46 | ||
|
Available to order. Add to View Price |
|||
|
#41073A
WHEEL-ASSY,RR,SOLID,NO2 G (Can
41073-1137-F6
|
|||
|
Unavailable |
|||
|
#42033
COUPLING-ASSY
42033-1045
|
$173.39 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=30
42036-1055
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET,REAR,38T
42041-1054
|
$105.27 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT
92001-161
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT 10MM
42045-005
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CASTLE,16MM
92015-055
Superseded by 92015-1951
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,LOCK
92022-1212
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=31
92027-1263
|
$25.09 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,RR WHEEL BRG
92027-1267
|
$27.48 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,L=25.5
92027-1434
|
$17.93 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,52MM
92033-1043
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN28475
92049-1056
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK530SH-0
92057-1077
|
$339.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1351
|
$117.92 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING BALL #6205
601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BRG,BALL,#6303ZZC3
601B6303ZZ
|
$38.46 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
