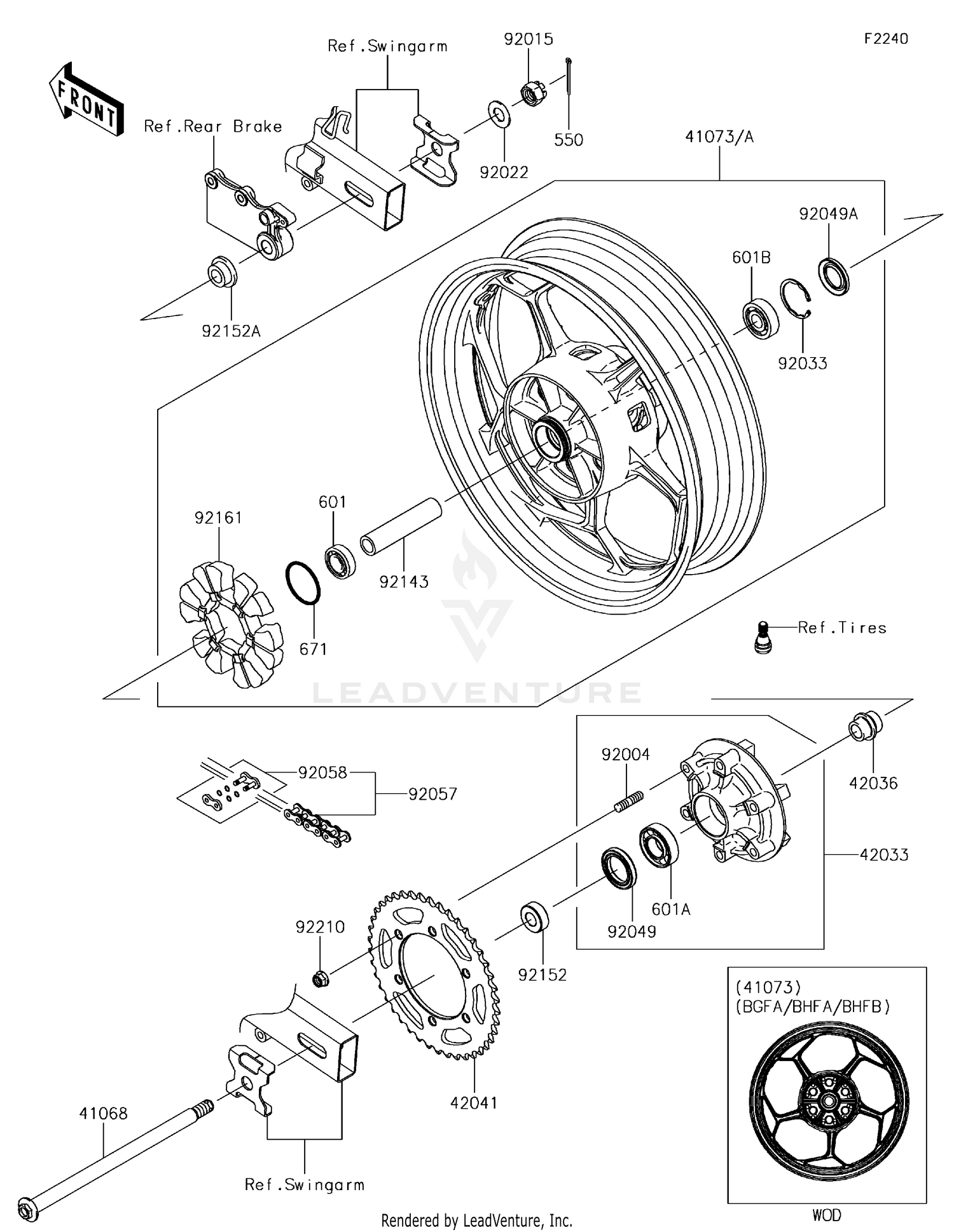

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41068
AXLE,RR
41068-1223
|
$63.32 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,G.BLACK
41073-0652-QT
|
$714.53 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-0574
|
$229.34 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=30
42036-1055
|
$26.74 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,42T
42041-0118
|
$81.75 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6203UUC3
601B6203UU
|
$22.17 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING BALL #6205
601B6205G
Superseded by 601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#601B
BEARING-BALL,6303LLUC3/2ASU68
601B6303UU
|
$32.00 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,50MM
671B2550
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-0048
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1947
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1916
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,35X52X7
92049-0730
|
$10.52 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,BJN28475
92049-1056
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK520SR-O2X106L
92057-0019
|
$214.82 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-1102
|
$14.52 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,RR HUB,L=111
92143-1416
|
$23.54 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,17X35X13
92152-0843
|
$26.52 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,17X28(38)X15
92152-0844
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,RR HUB SHOCK
92161-0700
|
$82.31 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-0276
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
