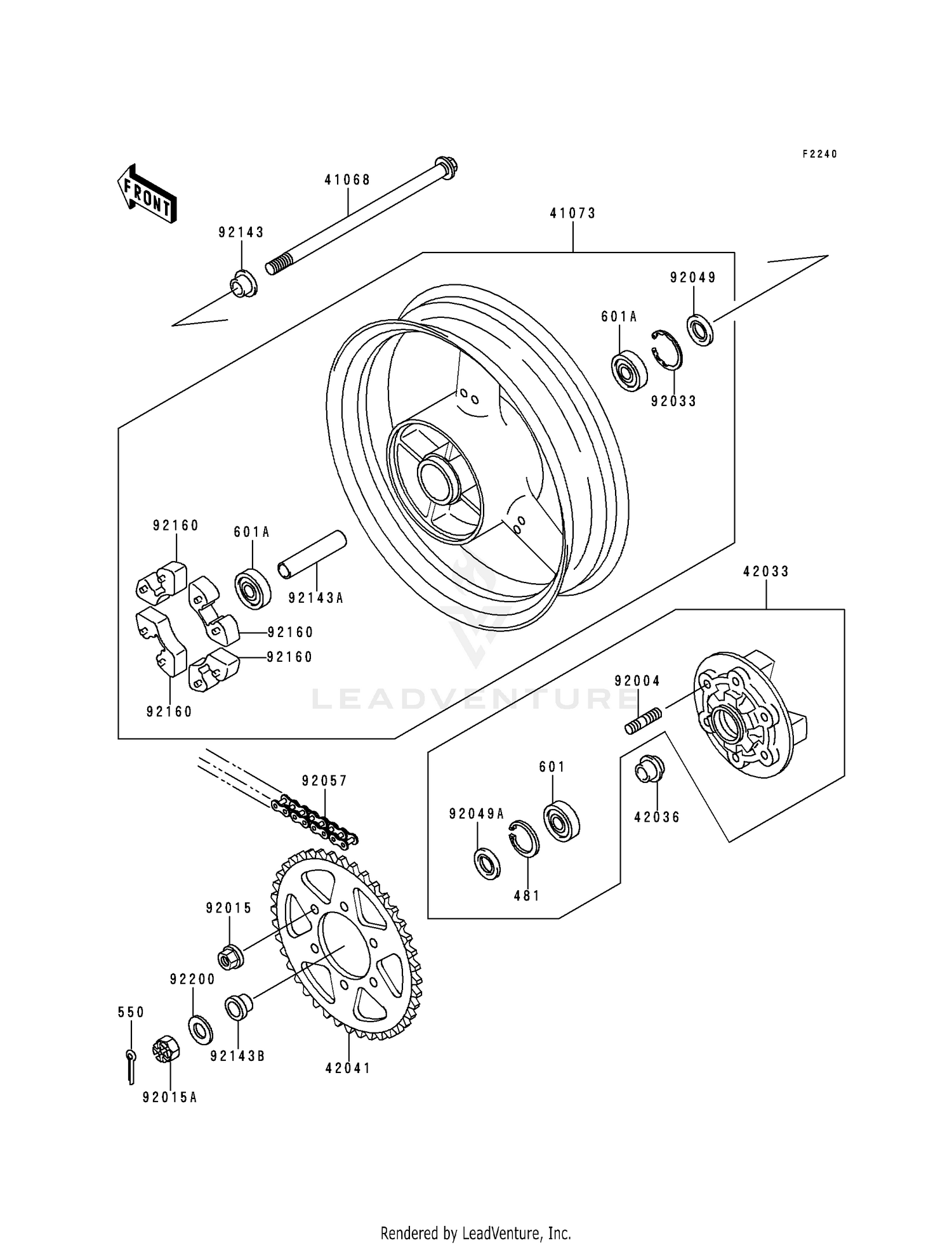

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#481
RING-SNAP,55MM
481J5500
Superseded by 92033-1274
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X40
550D4040
Superseded by 550AA4040
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6006G
601B6006G
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL
601B6205UU
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1326
|
$94.67 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,J.S.VIO
41073-1597-F8
|
$867.96 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-1144
Superseded by 42033-1213
|
$237.74 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=22
42036-1279
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,42T
42041-1456
|
$71.30 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-1151
Superseded by 92004-0028
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,10MM
92015-1720
Superseded by 92210-1258
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CASTLE,24MM
92015-1844
Superseded by 92210-0280
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN 32 52 5
92049-1375
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,PJN 40 55 8
92049-1376
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,RK525ROZ2
92057-1412
|
$384.62 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,RR AXLE,RH,L=2
92143-1475
|
$46.40 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,RR HUB,L=136
92143-1783
|
$35.70 | ||
|
Available to order. Add to View Price |
|||
|
#92143B
COLLAR,RR AXLE,LH,L=1
92143-1784
|
$46.40 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,SHOCK,RR HUB
92160-1485
|
$24.70 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,25.5X38X4.5
92200-1081
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
