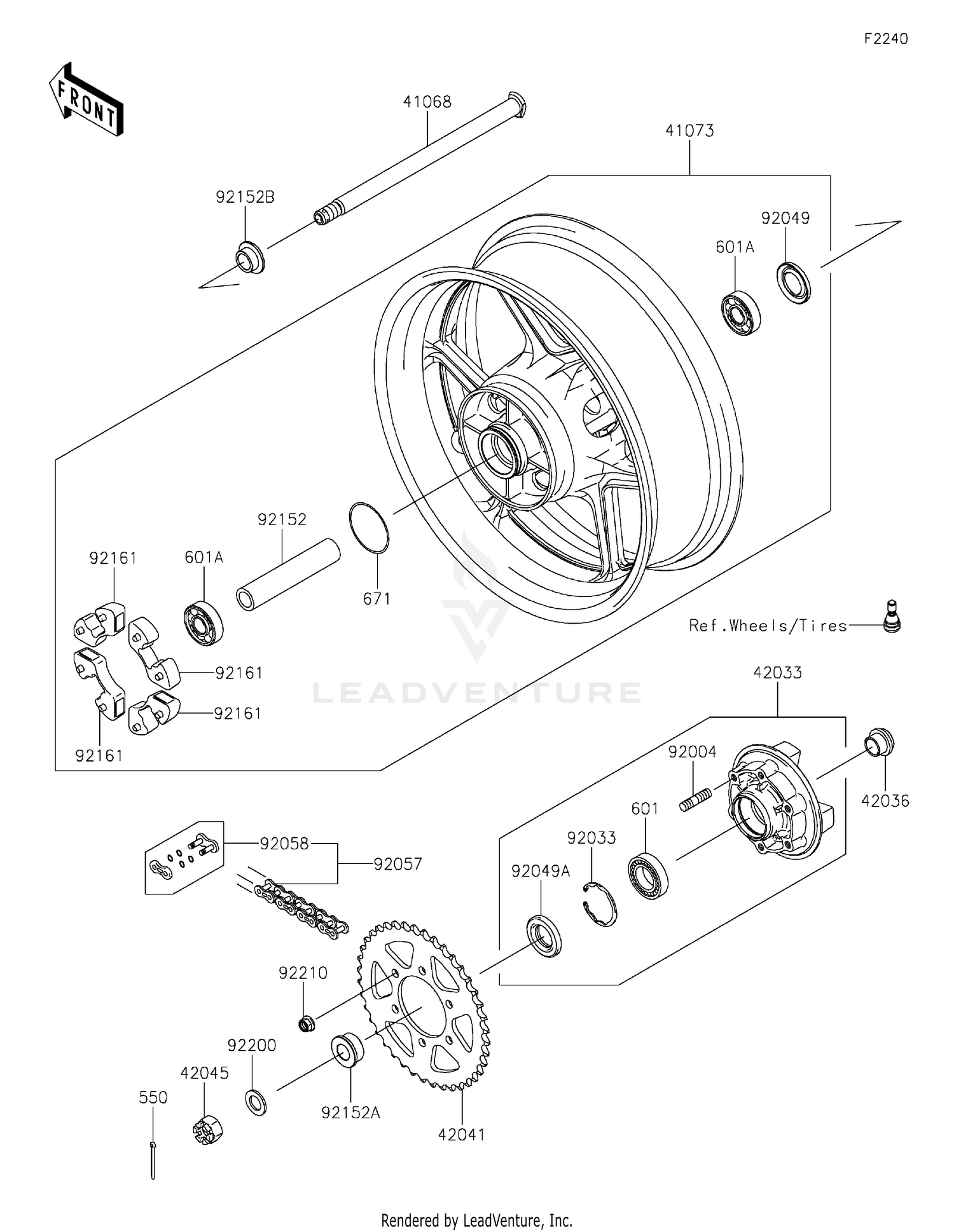

Rear Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41068
AXLE,RR
41068-0040
|
$111.35 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,G.BLACK
41073-0733-18F
|
$919.06 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-0028
|
$227.83 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=23
42036-1251
|
$25.28 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,43T
42041-1467
|
$71.30 | ||
|
Available to order. Add to View Price |
|||
|
#42045
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X40
550AA4040
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL
601B6205UU
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6304UUC3
601B6304UU
|
$33.17 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-0028
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,27X52X5
92049-0723
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL
92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK525XE,116L
92057-0749
|
$460.84 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN
92058-0060
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,RR HUB,L=144.5
92152-0088
|
$46.90 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,RR AXLE,LH,L=18
92152-0118
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR,RR AXLE,RH,20X28X14.5
92152-0876
|
$24.27 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,SHOCK,RR HUB
92161-0342
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,19X32X2.6
92200-1489
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-0276
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
