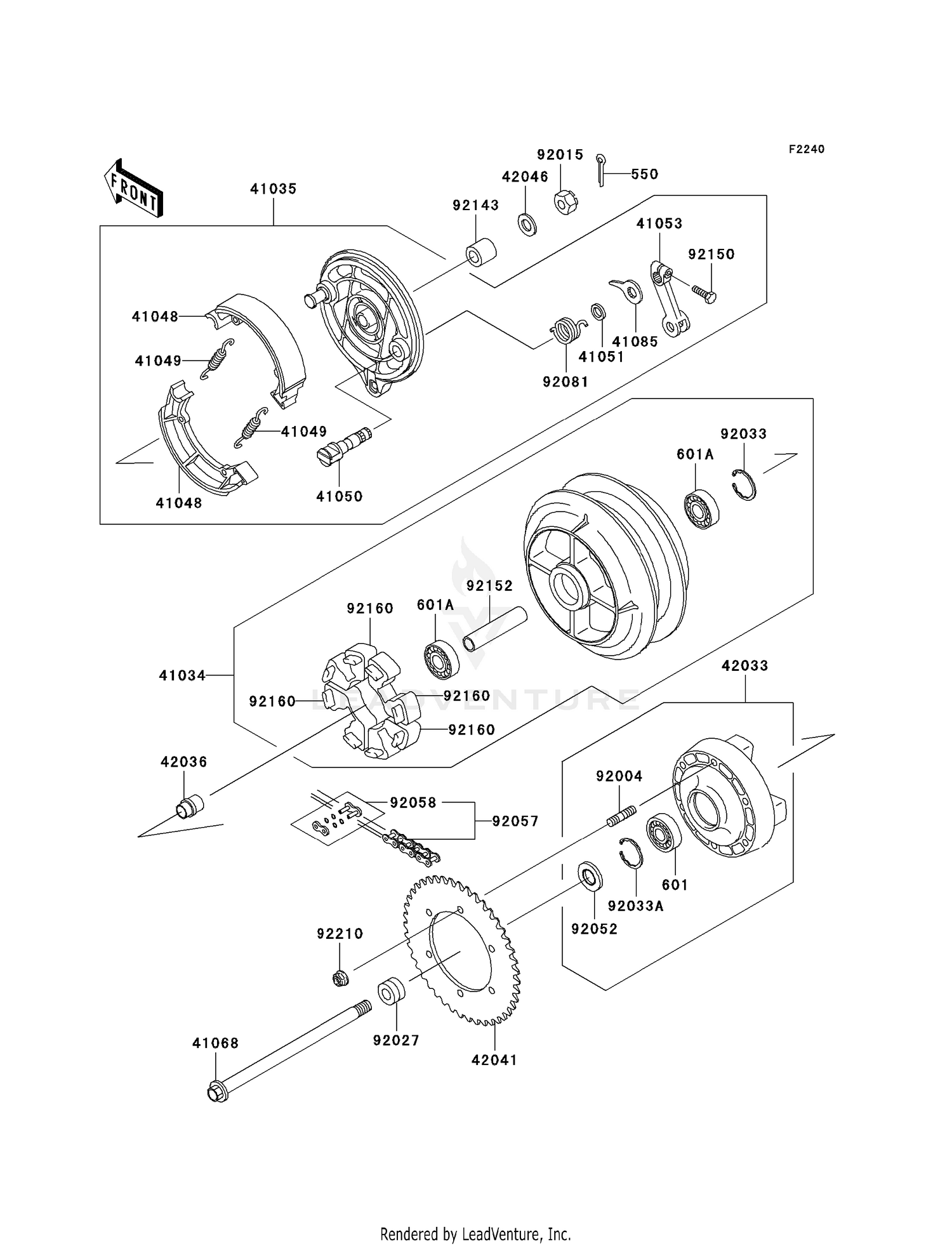

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#550
PIN-COTTER,4.0X35
550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6205UG
601B6205UG
|
$32.14 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,6303LLUC3/2ASU68
601B6303UU
|
$32.00 | ||
|
Available to order. Add to View Price |
|||
|
#41034
DRUM-ASSY,REAR BRAKE
41034-1258
|
$1,049.90 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,RR
41035-1485
|
$523.75 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1070
|
$49.66 | ||
|
Available to order. Add to View Price |
|||
|
#41049
SPRING,BRAKE SHOE
41049-012
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM-BRAKE
41050-1059
|
$37.76 | ||
|
Available to order. Add to View Price |
|||
|
#41051
DUST SHIELD-BRAKE CAM
41051-003
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM
41053-1072
|
$63.27 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1377
|
$69.64 | ||
|
Available to order. Add to View Price |
|||
|
#41085
INDICATOR
41085-1054
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-1219
|
$203.86 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=28
42036-1328
|
$46.80 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,42T
42041-1474
|
$71.30 | ||
|
Available to order. Add to View Price |
|||
|
#42046
WASHER,17.3X32X3.2
42046-009
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-0028
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CASTLE,16MM
92015-1951
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-1368
|
$31.71 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92052
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK520MVXL
92057-0049
|
$371.46 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-0002
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE CAM LEVE
92081-1814
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1898
|
$22.50 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1797
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1117
|
$29.02 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,SHOCK,RR HUB
92160-1697
|
$25.11 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-0276
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
