2020 KTM 250 XC-F Air Filter OEM Parts

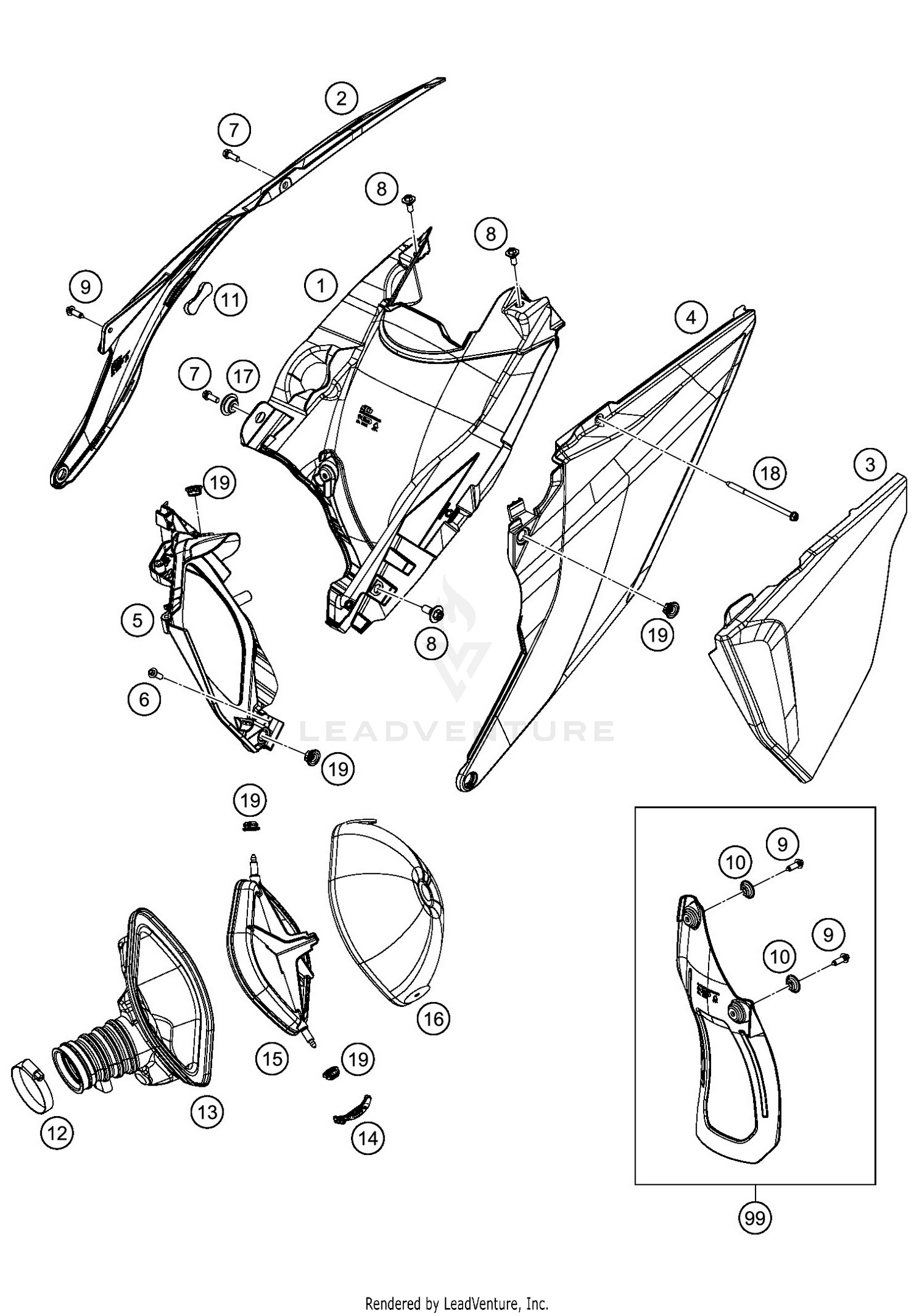

Air Filter Diagram

Item	MSRP	Qty
#1 Air filter box 79106001000AB	$35.19
Available to order. Add to View Price
#2 Filter box cover right 79106004000AB	$30.35
Unavailable
#3 Air filter cover left 79106003000ABA	$62.47
Available to order. Add to View Price
#4 Filter box cover left 79106005000AB	$50.92
Available to order. Add to View Price
#5 Air filter box front part 79106001010AB	$20.67
Available to order. Add to View Price
#6 SCREW FOR PLASTIC K60X20 SW6 0017060205	$2.41
Unavailable
#7 HH collar screw M6x16 TX30 0025060166	$3.62
Available to order. Add to View Price
#8 SPECIAL SCREW M6X15X3 83008000015	$3.62
Available to order. Add to View Price
#9 SCREW F. PLASTIC K60X20AL SW6 0017060206	$3.62
Available to order. Add to View Price
#10 Chain slider bushing 77304066050 Superseded by 77304066150	$1.20
Unavailable
#11 exhaust spacer 79105098000	$6.48
Available to order. Add to View Price
#12 HOSE CLAMP 45-65MM 78006027000	$6.15
Available to order. Add to View Price
#13 Airbox Rubber 79106026000	$74.24
Available to order. Add to View Price
#14 FILTER MOUNTING BRACKET 79006017000	$2.41
Available to order. Add to View Price
#15 AIR FILTER SUPPORT 79006016000	$29.14
Available to order. Add to View Price
#16 AIR FILTER 79006015000	$37.79
Available to order. Add to View Price
#17 COLLAR BUSH. F.REAR FENDER 07 77308013010	$6.15
Available to order. Add to View Price
#18 Seat screw 79107040010	$3.62
Available to order. Add to View Price
#19 quick release rubber grommet 47106003160	$4.83
Available to order. Add to View Price
#99 SPLASH PROTECTOR KIT 79006010010	$28.81
Available to order. Add to View Price
