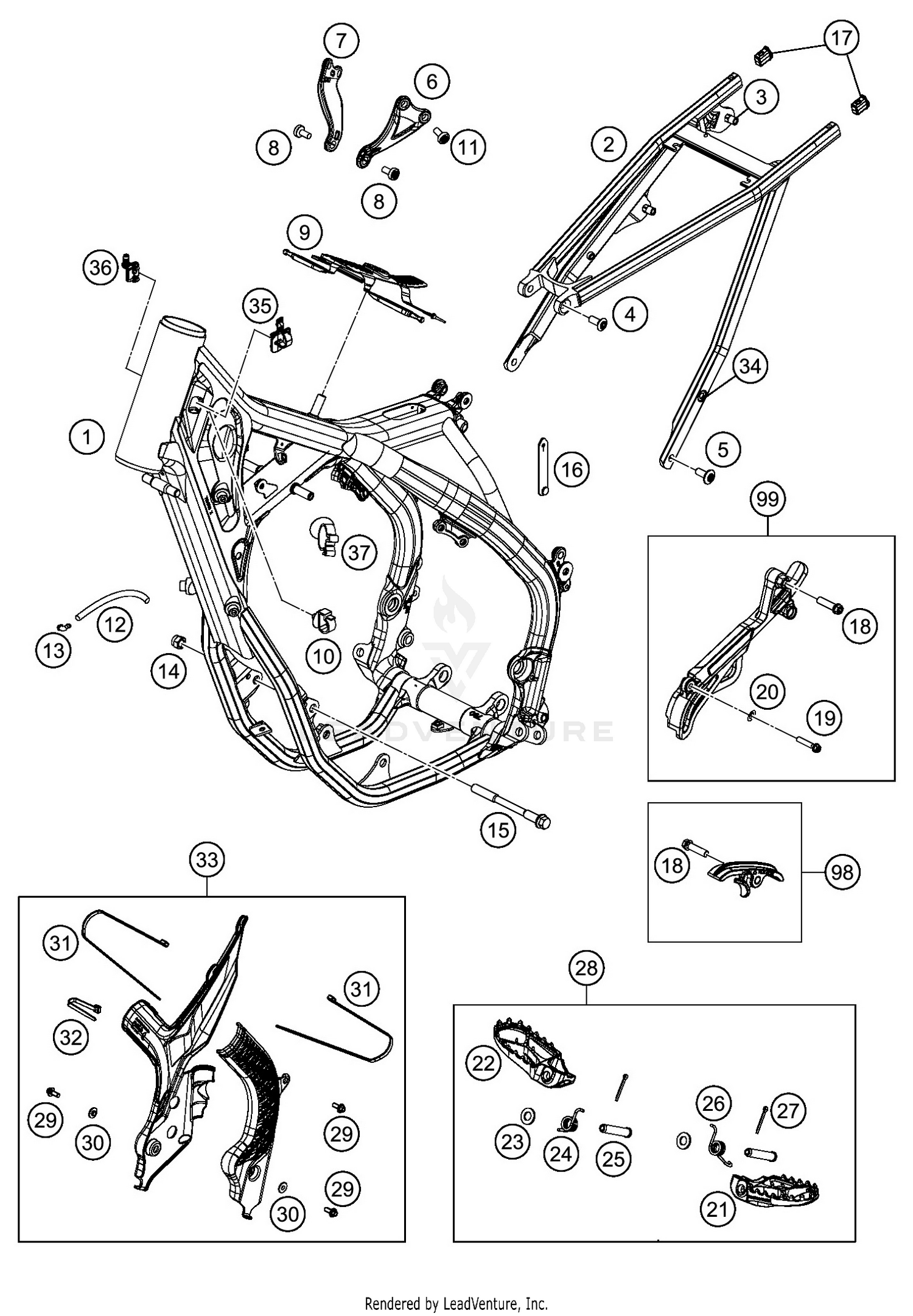

Frame Diagram

Item MSRP Qty
#1 Frame 791T4
7910300130033
 $2,642.85
Available to order.
Add to View Price
#2 Subframe
79103002100
 $355.84
Available to order.
Add to View Price
#3 BLIND RIVET NUT EM6-60LF/HX
77303139000
 $4.83
Available to order.
Add to View Price
#4 FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
 $2.41
Available to order.
Add to View Price
#5 SPECIAL SCREW M8X18 TORX45 SS
79003003000
 $3.62
Available to order.
Add to View Price
#6 Engine brace, left
7910301300001S
 $66.76
Available to order.
Add to View Price
#7 Engine brace, right
7910301400001S
 $66.76
Available to order.
Add to View Price
#8 SHCS M8x20 TX45
0035080206S
 $6.26
Available to order.
Add to View Price
#9 TANK REST RUBBER
79607012000
 $11.87
Available to order.
Add to View Price
#10 CABLE SUPPORT KHS NR.150-47610
58111076000
 $4.83
Available to order.
Add to View Price
#11 AH-COLLAR SCREW M8X15 TORX45
0035080156S
 $2.41
Available to order.
Add to View Price
#12 PVC-HOSE 7X10 PER METER
55007016001
 $7.14
Available to order.
Add to View Price
#13 ANGLE PIECE '97
50303089000
 $6.15
Available to order.
Add to View Price
#14 SELF LOCKING NUT M10 CU WS=14
54310086100
 $2.41
Available to order.
Add to View Price
#15 engine brac.scr. M10x115
77203014000
 $10.55
Available to order.
Add to View Price
#16 RUBBER CABLE TIE 75MM 03
60011093075
 $6.15
Available to order.
Add to View Price
#17 Rear frame bit
79103002010
 $4.83
Available to order.
Add to View Price
#18 HH collar screw M8x30
0025080306
 $3.62
Available to order.
Add to View Price
#19 HH collar screw M6x40 TX30
0025060406
 $3.62
Available to order.
Add to View Price
#20 WASHER DIN0125-A 6,4
0125060003
 $1.20
Available to order.
Add to View Price
#21 FOOTREST L/S 2016
79003040000
 $48.83
Available to order.
Add to View Price
#22 FOOTREST R/S 2016
79003041000
 $48.83
Available to order.
Add to View Price
#23 washer DIN 125 A 10.5
0125100003
 $2.41
Available to order.
Add to View Price
#24 FOOTREST SPRING R/S 2016
79003044000
 $2.41
Available to order.
Add to View Price
#25 PIN FOR FOOT PED 51.5X9.8 MM
54803044000
 $14.62
Available to order.
Add to View Price
#26 FOOTREST SPRING L/S 2016
79003045000
 $2.41
Available to order.
Add to View Price
#27 PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
 $1.20
Available to order.
Add to View Price
#28 FOOT PEGS SET CPL. 2016
79003040033
 $119.01
Available to order.
Add to View Price
#29 HH COLLAR SCREW M 5X12 WS=6
0014050123
 $2.41
Unavailable
#30 BUSH F. FRAME PROTECTION 03
54803092060
 $4.83
Available to order.
Add to View Price
#31 CABLE TIE 300/4,8MM BLACK
44011076305
 $2.41
Available to order.
Add to View Price
#32 CABLE TIE 140/2,5MM BLACK
44011076140
 $1.20
Available to order.
Add to View Price
#33 Frame protection set
7910309400030
Superseded by 7910309410030
 $31.23
Available to order.
Add to View Price
#34 BLIND RIVET NUT M6 KNURLED
79003002080
 $3.62
Available to order.
Add to View Price
#35 wire holder le 19
79111093000
 $1.20
Available to order.
Add to View Price
#36 wire holder / fuel ventilation
79107013010
 $1.20
Available to order.
Add to View Price
#37 Cable bracket d8
61111041000
Superseded by 79711013010
 $1.20
Available to order.
Add to View Price
#98 CHAIN SLIDING KIT BELOW CPL.16
79003053010
 $21.00
Available to order.
Add to View Price
#99 SPROCKET COVER KIT
79003096010
 $29.14
Available to order.
Add to View Price
