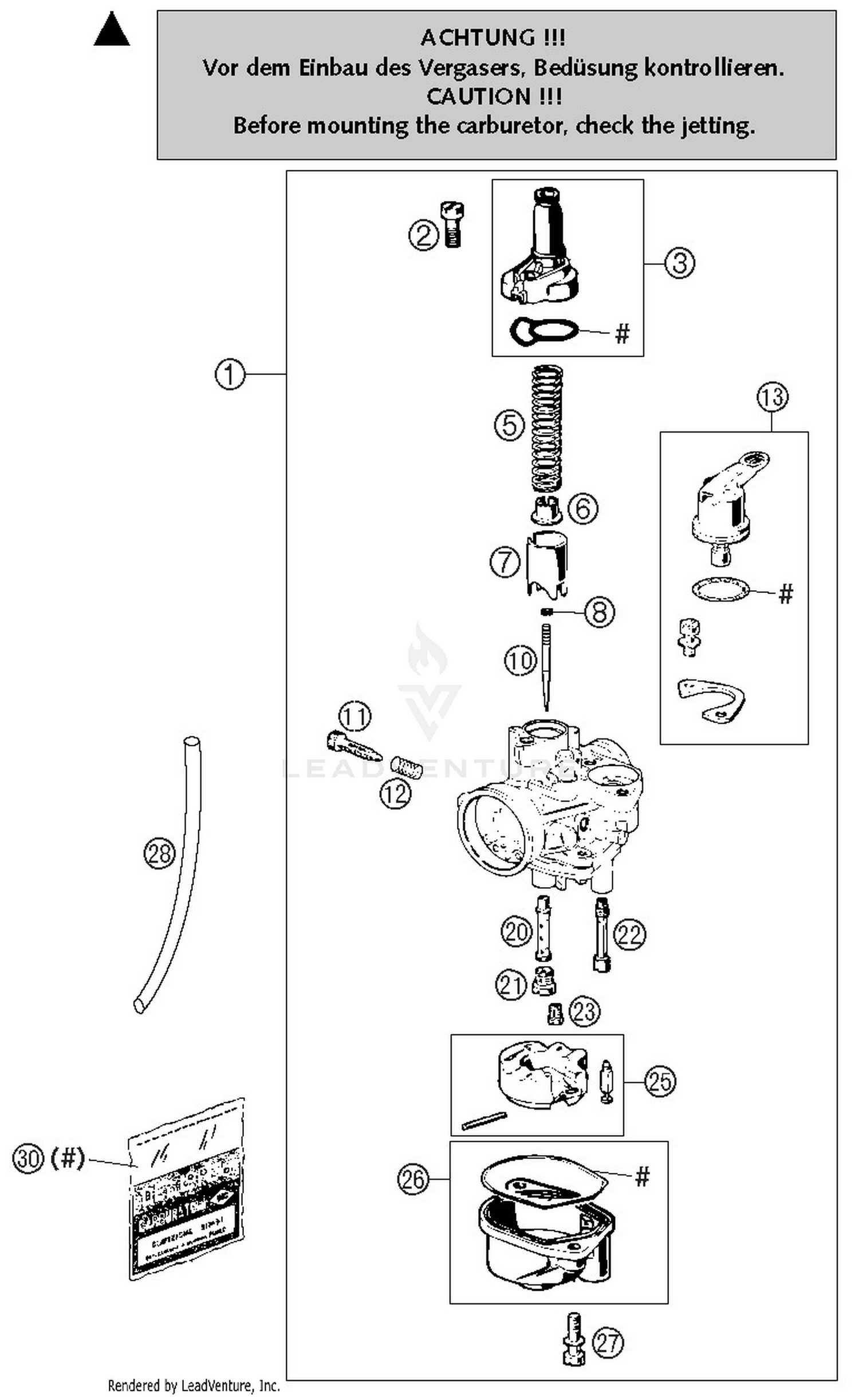

Carburetor Dellorto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Carburetor Dellorto PHVA 12XS 15
45131001200
Superseded by 45231001400
|
$419.97 | ||
|
Available to order. Add to View Price |
|||
|
#1
CARBURETOR DELLORTO 14PHVA DS
45131001000
|
$336.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYL.HEAD SCREW DIN0084-M 5X16A
0084050163
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARBURETOR COVER DELLOR. 12-14
45131527000
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
45131530000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING CAP
45131531000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
THROTTLE VALVE 40
45131535000
|
$55.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP SPRING
45131545000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
JET NEEDLE A10
45131534010
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
IDLE ADJUST SCREW
45131517000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
45131516000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
STARTING LEVER CPL. DELL.12-14
45131548000
|
$58.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
ATOMIZER 211FA
45131536000
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET 60 DELLORTO M6X0,75
59030054000
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
MAIN JET 70 DELLORTO
45131023070
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
MAIN JET 80
57031523080
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
STARTING JET 60
45131551060
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
IDLING JET 35
45131507035
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
IDLING JET 38
45131507038
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
IDLING JET 45
45131507045
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
FLOAT CPL.
45131509000
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#26
FLOAT BOWL DELLORTO 12-14
45131511000
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#27
CYL.SCREW DIN0084-M 4X20 A
0084040203
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
PVC-HOSE 3X5MM
52031137001
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET SET DELLORTO 12-14 PHVA
45131599000
|
$23.53 | ||
|
Available to order. Add to View Price |
|||
