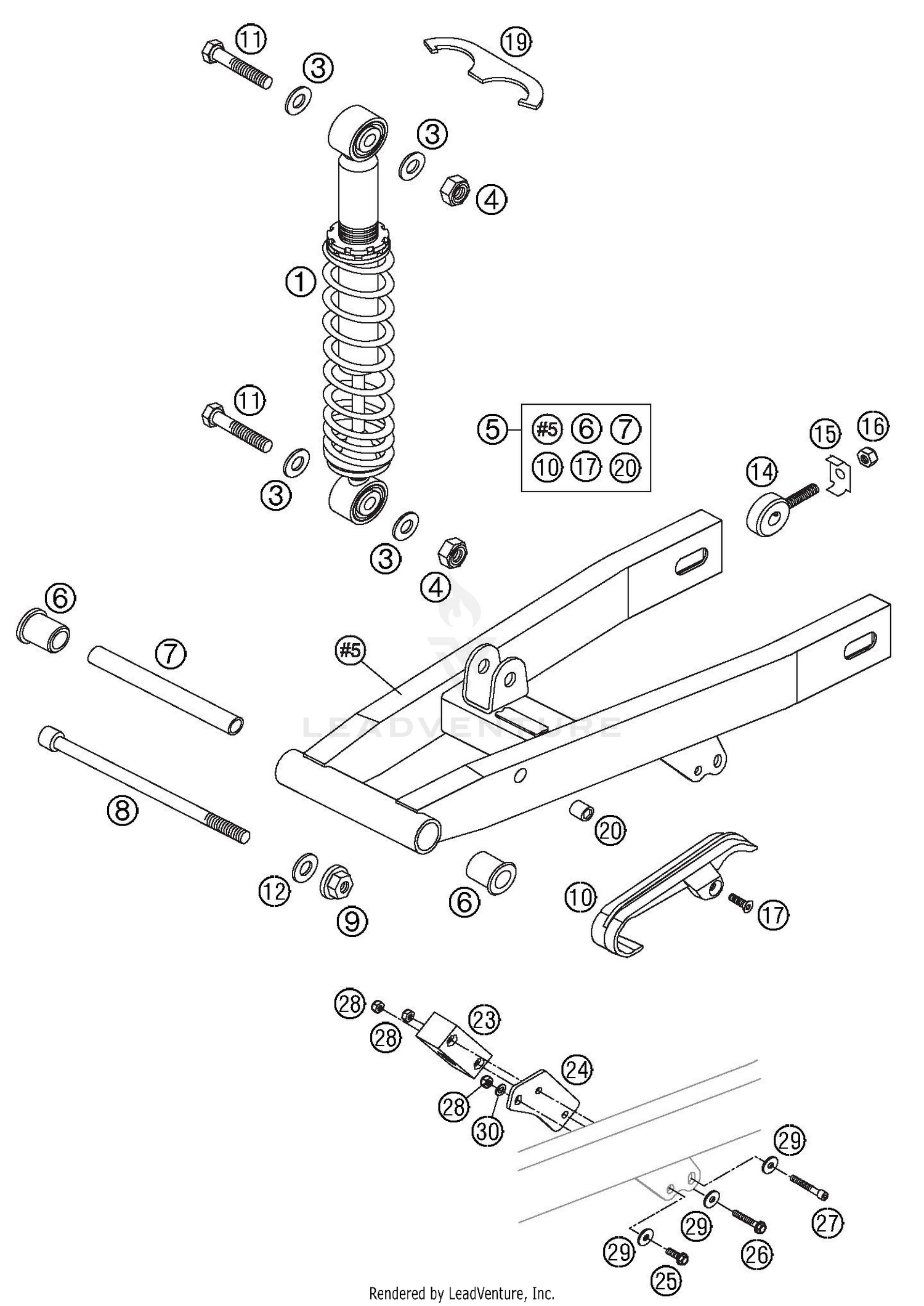

Swingarm, Monoshock Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MONOSHOCK 50SX 2012
45104010400
Superseded by 03189L0201
|
$976.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
washer DIN 125 A 10.5
0125100003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
SELF LOCK.NUT DIN0982-M10 HIGH
0982100003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWINGARM CPL. SEN. ADV.+LC 02
45104030144
|
$178.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING BOX L=30 MM
45004031000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACING TUBE 10X13X140 MM
45004039000
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWING ARM BOLT M10X158,5 02
45103014000
|
$28.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
flanged hex nut DIN 6927 M10 WS15
49009082000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
CHAIN SLID. GUARD FRO. MINI 02
45104066000
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH SCREW DIN0931-M10X45
0931100453
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER 10,5 X 21 X 3
31004001100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
CHAIN ADJUSTER
45010083000
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
SUPPORTING BRACKET
45010083060
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
SELF LOCKING NUT DIN0985-M 8
0985080003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOOK WRENCH 50 SXR
45004010090
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BLIND RIVET THREAD M6 STE. 4MM
55003139900
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#23
CHAIN GUIDE REAR
45004070000
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET FOR CHAIN GUARD 02
45104170000
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH collar screw M5x16 TX30
0015050163
Superseded by 0025050166
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
HH COLLAR SCREW M 5X30 WS=8
0015050303
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
AH SCREW DIN912 M5X35
0912050353
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#28
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#29
washer DIN 9021 A - 5.3
0021050003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER DIN0125-A 5,3
0125050003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
