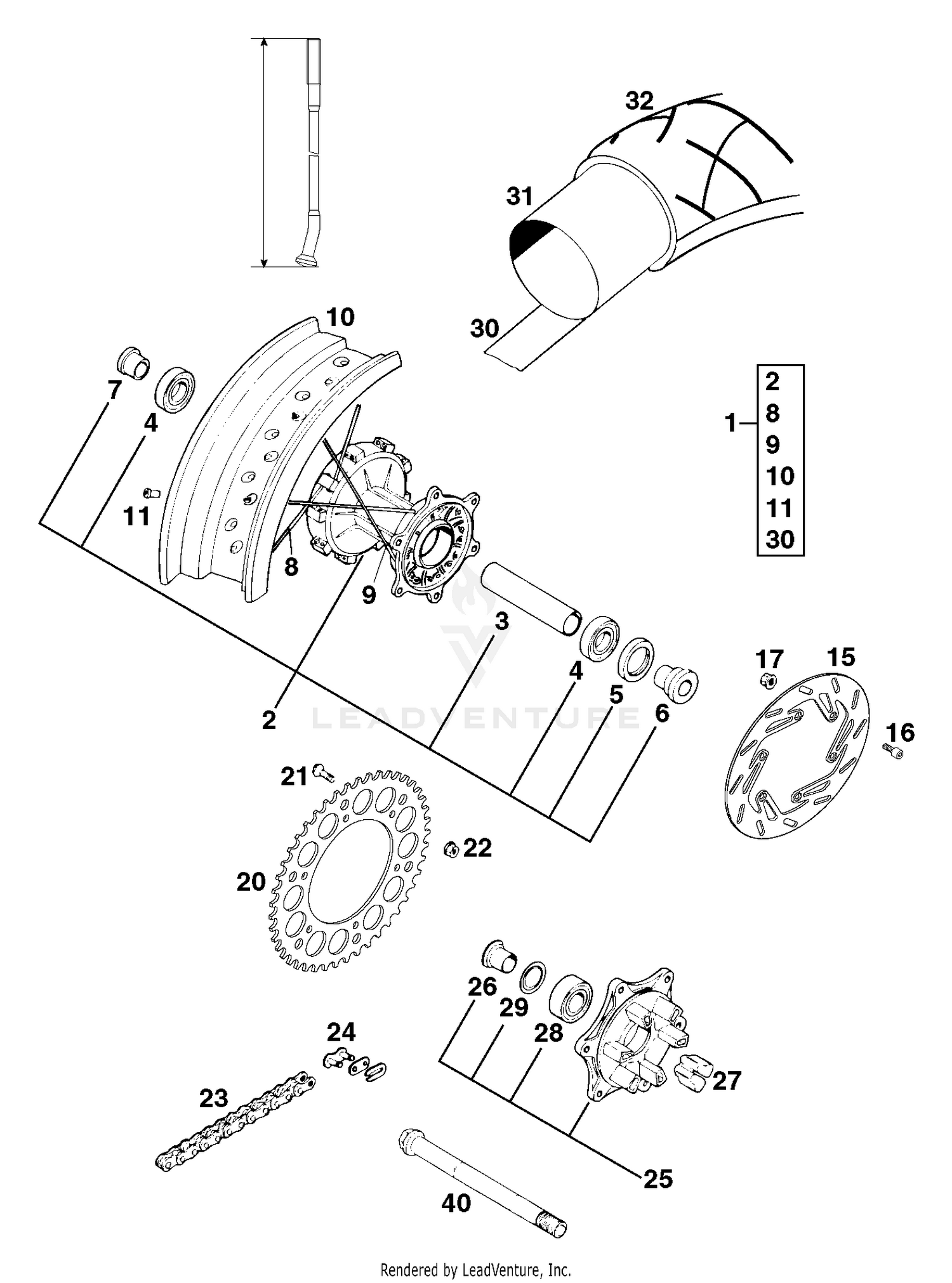

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL 4,25X17" DUKE'94
58310001144
|
|||
|
Unavailable |
|||
|
#2
REAR WHEEL HUB DAMPED CPL. '93
58310010044
|
|||
|
Unavailable |
|||
|
#3
BEARING SPACER TUBE L=98,5MM
54610411100
|
|||
|
Unavailable |
|||
|
#4
GR.BALL BEAR. 6205-2RSHC3HMTF7
0625062052
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT SEAL RING 32X52X7 B
0760325272
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING FOR HUB 08
54610016000
Superseded by 78010016000
|
$38.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSHING FOR REAR DAMPED HUB
54610416300
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPOKE M5X199-16G 17''
58310171100
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE M5X186-26G 17''
58310071100
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIM REAR 4,25X17" AKRONT
58310070000
|
|||
|
Unavailable |
|||
|
#11
Spoke nipple Quadrax M5
58309072000
Superseded by 60310072200
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRAKE DISK REAR D=220MM
58310060000
|
|||
|
Unavailable |
|||
|
#16
AH SCREW DIN6912-M 6X16
0984060163
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
SELF LOCKING NUT M6
56509064000
|
|||
|
Unavailable |
|||
|
#20
REAR SPROCKET 38-T
58310051038
|
$76.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR SPROCKET 40-T
58310151040
|
$74.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR SPROCKET 42-T
58310051042
|
$76.44 | ||
|
Unavailable |
|||
|
#21
SPROCKET SCREW-AH M 8X26
54510052000
|
|||
|
Unavailable |
|||
|
#22
SELF LOCKING NUT M8
54310086000
|
|||
|
Unavailable |
|||
|
#23
O-RING CHAIN 5/8X1/4" DID 118 ROLLS
50010065100
|
|||
|
Unavailable |
|||
|
#23
O-RING CHAIN 5/8X1/4"PER METER
50010065101
|
|||
|
Unavailable |
|||
|
#24
RIVETING LINK FOR 78010167118
50010066100
Superseded by 78010266100
|
$15.61 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH. F.SPROCKETSUPPORT L=25MM
54610417300
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER DAMPING BLOCK '91
54610459000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
GR. BALL BEARING 3205B-2RSRTNG
0625032057
|
$89.96 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL WASHER 3205 AV
54610018000
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
rim tape 17"
58309073000
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
TUBE 17''
58410075000
|
$43.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
TYRE 160/60-R17 69H
58310074300
|
|||
|
Unavailable |
|||
|
#40
WHEEL SPINDLE REAR L=232MM '94
58310085000
|
$46.88 | ||
|
Available to order. Add to View Price |
|||
