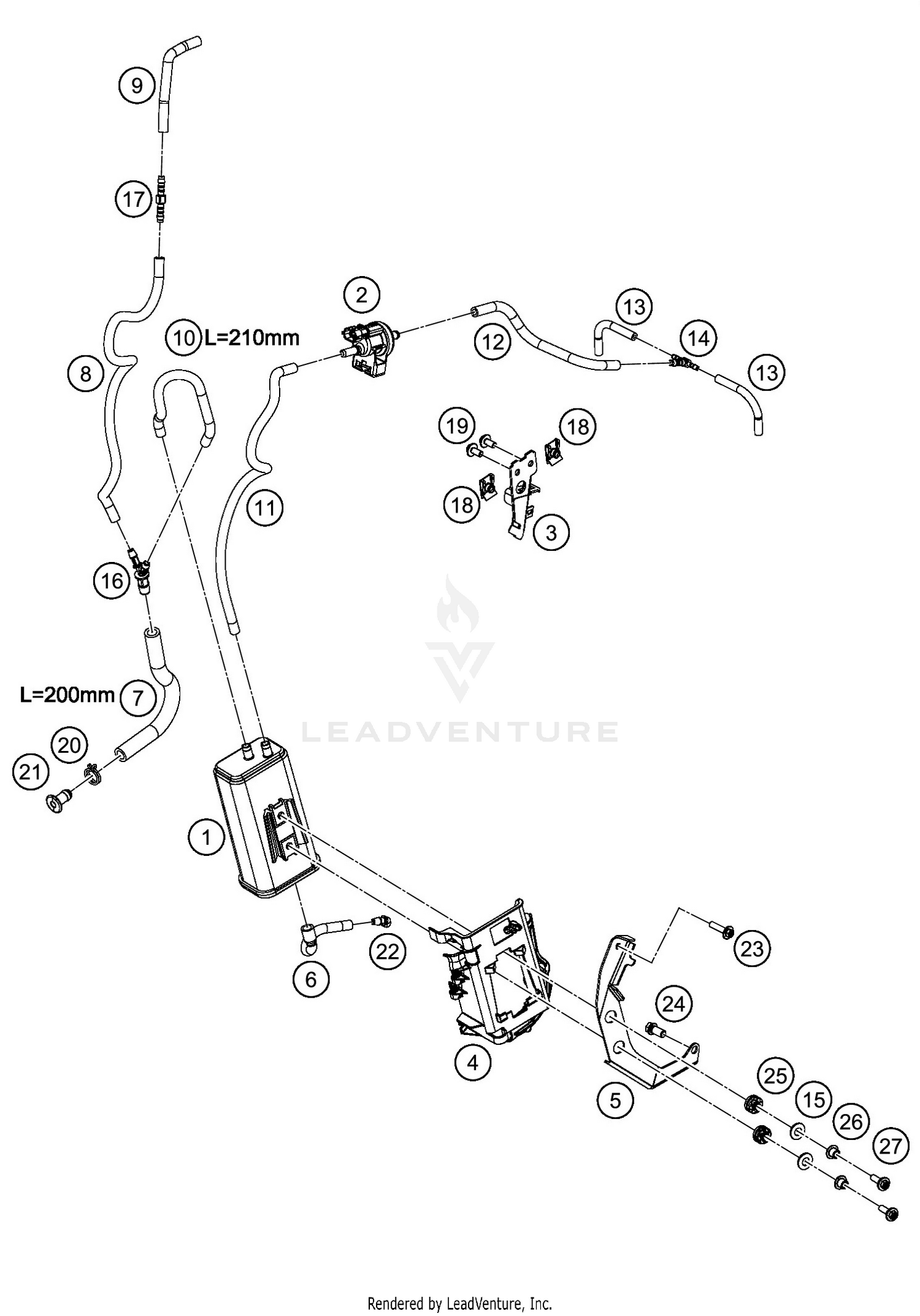

Evaporative Canister Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBON CANISTER
75015001200
|
$78.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
EVAP valve
76015015000
|
$299.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
Retaining bracket ACF valve cpl.
63515026010
|
$68.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hose clip ACF
63515003010
|
$36.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
Retaining bracket ACF
6351500201033
|
$59.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
ventilation hose evap.can.
63515021000
|
$21.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE EPA D=10/16 L=2000MM
78015119000
|
$287.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
hose fuel tank vent 500 mm
63515024000
|
$33.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
hose fuel tank vent 180 mm
63515022000
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE EPA D=6/10 L=2000MM
78015019000
|
$73.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hose ACF purge valve
63515028000
|
$31.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE EPA D=6/10 L=2000MM
78015019000
|
$73.69 | ||
|
Unavailable |
|||
|
#13
HOSE EPA D=4/8 L=2000MM
78015021000
|
$58.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
Hose connection nozzles
64115026000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#15
shim
50337073000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
Y-CONNECTOR YS 6-10-6
61315028100
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CONNECTION STRAIGHT
69015019010
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
clip nut M6
54603048100
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH collar screw M6x13 TX30
0024060136
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
YDNAC-CLAMP 10173 (16MM) '98
58431082100
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
Screw plug ACF
61315026100
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
Angle piece for overrun
63503098030
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#23
HH COLLAR SCREW M6X25 TX30
0024060256
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
HH collar screw M6x16 TX30
0025060166
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMP. COMPONENT ABS MODUL
62142041000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#26
collar bushing 6.1x9.2x15x8.5x1 Al
69014015000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
HH collar screw M6x20 TX30
0024060206
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
