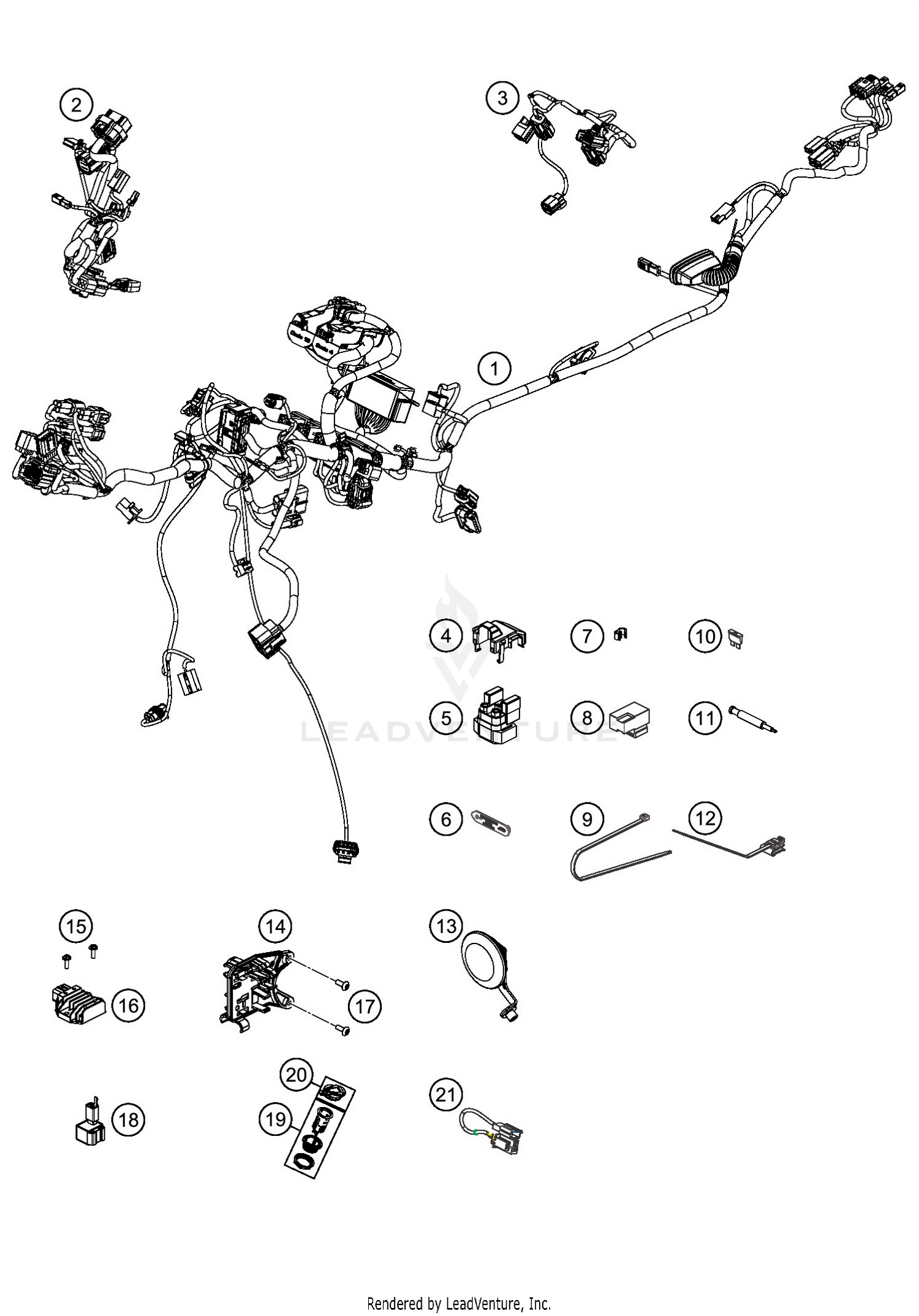

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Main wiring harness
63511075000
|
$1,038.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
Front wiring harness
63511078000
Superseded by 63511078100
|
$249.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
Engine wiring harness
63511085000
|
$77.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cover flap
64111058010
Superseded by 64111058110
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
STARTER RELAY 07
76211058000
|
$93.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER CABLE TIE 75MM 03
60011093075
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER CABLE TIE 45MM 03
60011093045
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAR SPACER 4/7 BLACK
60111094100
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE 30 A
58011109130
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
TEMPERATURE SENSOR
61111018100
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
Cable holder, attachable
64111059020
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
Cable holder, attachable
64111059020
|
$3.62 | ||
|
Unavailable |
|||
|
#14
Connector support front
63511048000
Superseded by 63511048100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH collar screw M6x20 TX30
0024060206
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
VOLTAGE REGULATOR
60311034000
|
$208.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW M5X14 TORX 25 07
58605083014
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLASHER UNIT
76511030000
|
$27.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
Power socket 12V
60711042000
|
$65.66 | ||
|
Available to order. Add to View Price |
|||
|
#20
Lid 12V-socket
60311042050
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#21
Inter. wiring harness, turn signal relay
63511080000
|
$13.08 | ||
|
Available to order. Add to View Price |
|||
